Assignments

Logic Cell (Assignment Categories)

If you selected an APEX 20K, APEX II, ARM-based Excalibur, or Mercury device, you can make assignments to logic cells by clicking Logic Cell to open the MegaLAB row name list, the MegaLAB column number list, the LAB name, and the Cell number list.

Pointer Click any item in in the following Description and Assignment group boxes for more information on that item:

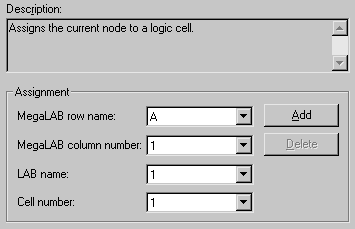

Logic Cell Instructions MegaLAB row name MegaLAB Column Lab name Cell number Add Delete

If you selected a ACEX 1K, FLEX 6000, or FLEX 10KE device, you can click Logic Cell to open the Row name list, the Column number list, or the Cell number list to make assignments to logic cells.

Pointer Click any item in in the following Description and Assignment group boxes for more information on that item:

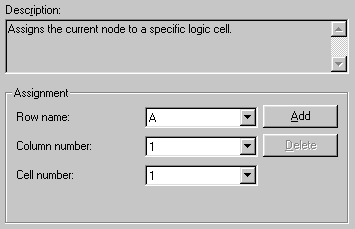

Logic Cell Instructions row name Column number Cell Number Add Delete

If you selected a MAX 3000 or MAX 7000 device, you can click Logic Cell to open the Logic cell list to make assignments to logic cells.

Pointer Click any item in in the following Description and Assignment group boxes for more information on that item:

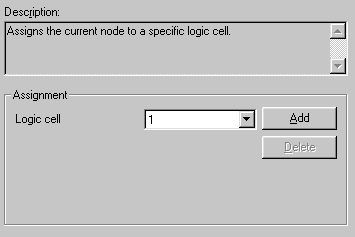

Logic Cell Instructions Logic cell Add Delete

If you selected a Cyclone, Stratix, or Stratix GX device, you can click Logic Cell to open the X coordinate list, the Y coordinate list, and the Index list to make assignments to logic cells.

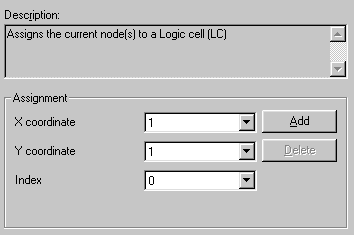

Description Add Delete X coordinate Y coordinate Index
