Assignments

LAB (Assignment Categories)

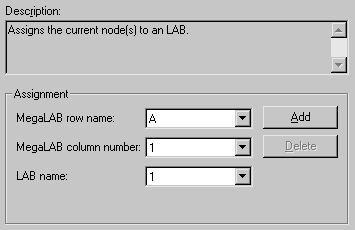

If you selected an APEX 20K, APEX II, ARM-based Excalibur, or Mercury device, you can make assignments to LABs by clicking LAB to open the MegaLAB row name list, the MegaLAB column number list, and the LAB name list.

Pointer Click any item in in the following Description and Assignment group boxes for more information on that item:


LAB Description MegaLAB row name MegaLAB column LAB name Add Delete

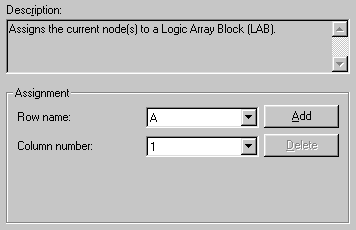

If you selected an ACEX 1K, FLEX 6000, or FLEX 10KE device, you can click LAB to open the Row name list or the Column number list to make assignments to LABs in the device.

Pointer Click any item in in the following Description and Assignment group boxes for more information on that item:


LAB Description Row name Column number Add Delete

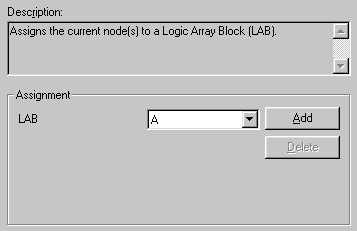

If you selected a MAX 3000 or MAX 7000 device, you can click LAB to open the LAB list to make assignments to LABs in the device.

Pointer Click any item in in the following Description and Assignment group boxes for more information on that item:


LAB Description Add Delete LAB name

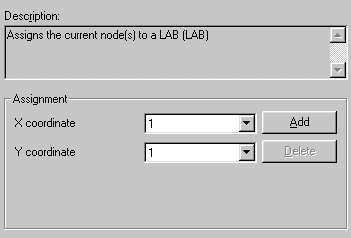

If you selected a Cyclone, Stratix, or Stratix GX device, you can click LAB to open the X coordinate list and the Y coordinate list to make assignments to LABs in the device.


Description Add Delete X coordinate Y coordinate
