Displays the following default or user-entered Simulator settings specified in the Simulator Settings page of the Settings dialog box:
| Setting Name (Simulator Settings Section) | Option Name (Location) | Setting Value |
|---|---|---|
| Simulation mode | Simulation mode (Mode page) | Functional | Timing |
| Simulator settings name | Current Simulator settings (General page) | <settings name> |
| End time | End simulation at (Time/Vectors page) | <time> |
| Vector input source | Source of vector stimuli (Time/Vectors page) | <file name> |
| Check outputs | Check outputs (Time/Vectors page) | On | Off |
| Detect glitches | Glitch detection (Options page) | On | Off |
| Glitch interval | Glitch interval (Options page) | <time> |
| Report simulation coverage | Simulation coverage reporting (Options page) | On | Off |
| Add pins automatically to simulation output waveforms | Automatically add pins to simulation output waveforms (Time/Vectors page) | On | Off |
| Estimate power consumption | Estimate power consumption (Options page) | On | Off |
| Detect setup and hold time violations | Setup and hold time violation detection (Options page) | On | Off |

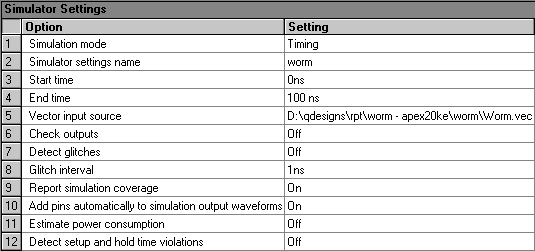

The following example shows the Simulator Settings section generated for a sample design:
|
