Displays information on the RAM memory in the device: including name, mode, location, port width and depth, size, the number of EABs or ESBs used to implement the memory, and the Memory Initialization File (.mif), if a MIF was specified for the initial contents of the memory.
For Cyclone™, Stratix™, and Stratix™ GX designs, the table also includes the type of memory and numbers of M512, M4K, the M-RAM memory blocks used to implement the RAM in Stratix and Stratix GX designs, and the number of M4K memory blocks used to implement the RAM in Cyclone designs.
Information is provided as follows:
| Heading | Description | Value |
|---|---|---|
| Name | Shows the name of the memory block. | <memory block name> |
| Type | Shows the type of memory block you specified. This column appears only if you specify a Cyclone, Stratix, or Stratix GX device for compilation. |
Auto | M512 | M4K | M-RAM |
| Mode | Shows the mode of the memory block. | ROM | Single Port | Simple Dual Port | True Dual Port | Quad Port |
| Location | Shows the location (x and y coordinates) of the memory block. | <location> |
| Port A Depth | Shows the depth (in bits) of data port A. | <port depth> |
| Port A Width | Shows the width (in bits) of data port A. | <port width> |
| Port B Depth | Shows the depth (in bits) of data port B. | <port depth> |
| Port B Width | Shows the width (in bits) of data port B. | <port width> |
| Size | Shows the size of the memory block. | <memory block size> |
| Number of M512 | Shows the number of M512 memory blocks used to implement the memory. This column appears only if you specify a Stratix or Stratix GX device for compilation. |
<number> |
| Number of M4K | Shows the number of M4K memory blocks used to implement the memory. This column appears only if you specify a Cyclone, Stratix, or Stratix GX device for compilation. |
<number> |
| Number of M-RAM | Shows the number of M-RAM memory blocks used to implement the memory. This column does not appear if you specify a Cyclone device for compilation. This column appears only if you specify a Stratix or Stratix GX device for compilation. |
<number> |
| EABs/ESBs | Shows the number of EABs or ESBs used to implement the memory. This column does not appear if you specify a Cyclone, Stratix, or Stratix GX device for compilation. |
<number> |
| MIF | Shows the MIF that was specified for the initial contents of the memory. | <file name> |

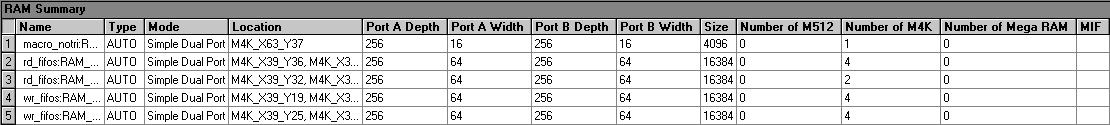

The following example shows a portion of the RAM Summary section generated for a sample design:
 |
