Allows you to set the options for the Passive Serial configuration scheme, and the options for associated dual-purpose pins.

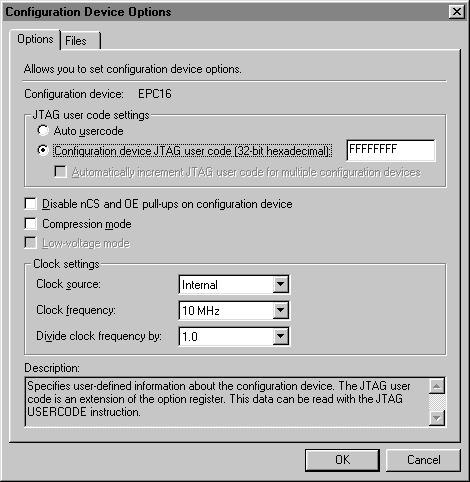

When you open the Configuration Device Options dialog box from the Convert Programming Files dialog box (File menu) by choosing Programmer Object File for Remote Update (.pof) or Programmer Object File for Local Update (.pof) in the Programming file type list and selecting a Programmer Object File (.pof) assigned to a POF Data item and then clicking Options, the options tab is disabled and displays the settings for the POF you selected.

Click any item in this dialog box for information on that item:
