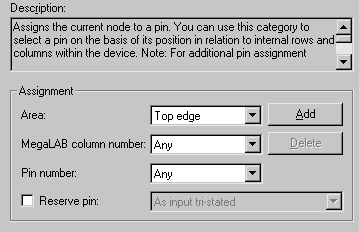

If you selected an APEX 20K, APEX II, ARM-based Excalibur, or Mercury device, you can make assignments to pins that are organized by device package. You can click Pins (organized by internal rows/columns) to open the Area list, the MegaLAB column number or MegaLAB row name list, the Pin number list, and the Reserve pin list.

Click any item in in the following Description and Assignment group boxes for more information on that item:

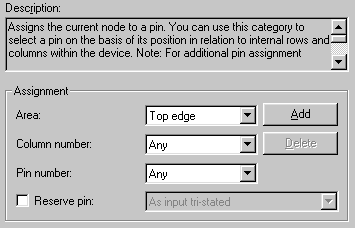

If you selected an ACEX 1K, FLEX 6000, or FLEX 10KE device, you can make assignments to pins organized by device package by clicking Pins (organized by internal rows/columns) to open the Area list, the Column number list, Pin number list, or the Reserve pin list.

Click any item in in the following Description and Assignment group boxes for more information on that item:
