Displays information about the I/O standard, load, and termination resistance, measured on the reported tCO for the output pins in the device. This section is omitted if you did not specify a Cyclone™, Stratix™, or Stratix™ GX device for compilation.
Information is provided as follows:
| Heading | Description | Value |
|---|---|---|
| I/O Standard | Shows the I/O standard for which the tCO was measured. | <I/O standard name> |
| Load | Shows the load, in picofarads (pF), measured on the tCO. | <load> pF |
| Termination Resistance | Shows the termination resistance, in ohms, measured on the tCO, and the amount of resistance that is parallel and serial, if applicable. Resistance is parallel unless otherwise specified. | <resistance> Ohms | Not Available |

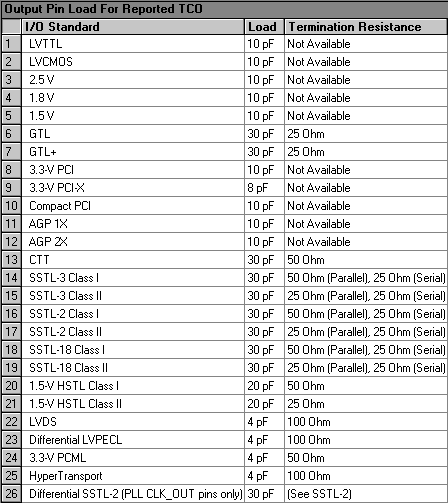

The following example shows a portion of the Output Pin Load for Reported TCO section generated for a sample design:
|
