Displays information about what device resources are used for local routing purposes.

If you are using an APEX^™ 20K, APEX^™ II, or ARM^®-based Excalibur^™ device, the section displays a bar chart showing the number of MegaLAB^™ structures that use a specific number of local lines (that is, local interconnect lines driven by signals that are transferred between logic elements located in the same or adjacent LAB(s)) in the local interconnect region.

If you are using a FLEX^® 6000 device, the section displays a bar chart showing the number of local interconnect regions that use a specific number of local lines in the local interconnect region.

If you are using an ACEX^® 1K or FLEX 10KE device, the section displays a bar chart showing the number of LABs that use a specific number of lines in the local interconnect region.

If you are using a Mercury^™ device, the section displays a bar chart showing the number of LAB rows that use a specific number of local lines in the local interconnect region.

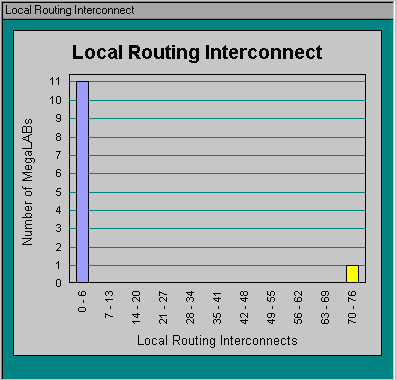

The following example shows the Local Routing Interconnect section generated for a sample design in an APEX 20K device:

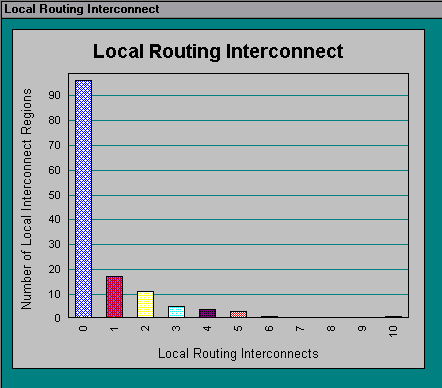

The following example shows the Local Routing Interconnect section generated for a sample design in a FLEX 6000 device:

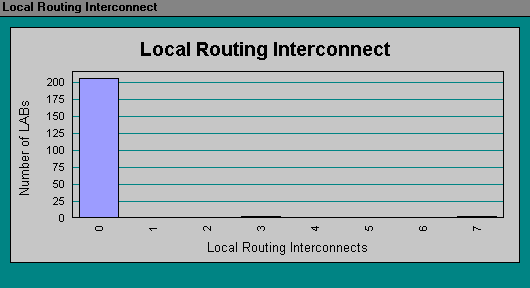

The following example shows the Local Routing Interconnect section generated for a sample design in an ACEX 1K or FLEX 10KE device.

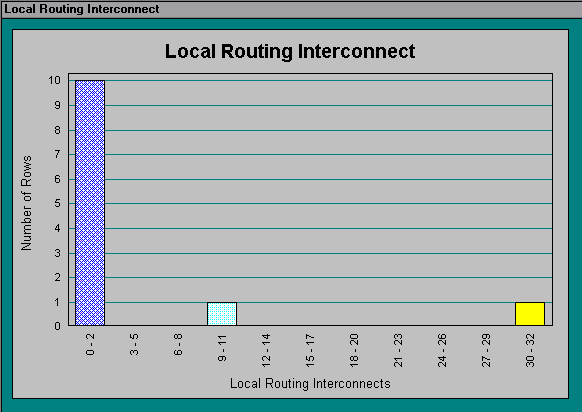

The following example shows the Local Routing Interconnect section generated for a sample design in a Mercury device:
