Displays a bar chart showing the number of data output signals from the logic cells within the LABs in the device. This includes signals that are used by the LAB itself as well as signals that are routed outside the LAB. This section is omitted if you do not specify a Cyclone^™, Stratix^™ or Stratix^™ GX device for the project.

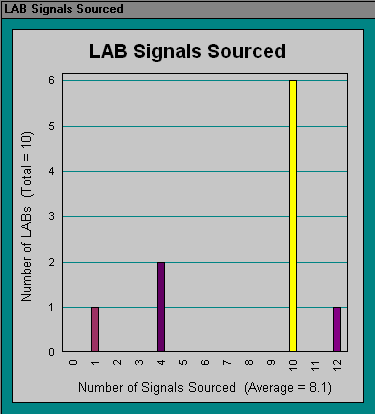

The following example shows a LAB Signals Sourced section generated for a sample design:
