LAB Distinct Inputs Section (Compilation Report)



Displays a bar chart showing the number of distinct inputs in the LAB. Distinct inputs are signals with unique sources that are routed into the LAB. This section is omitted if you do not specify a Cyclone, Stratix, or Stratix GX device for the project.

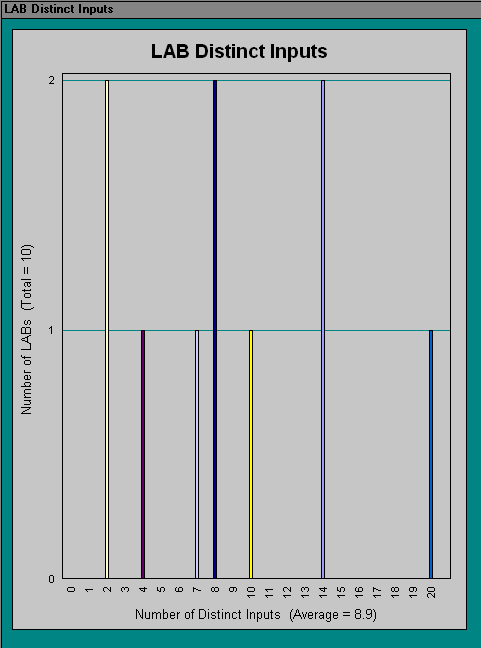

The following example shows a LAB Distinct Inputs section generated for a sample design:


LAB Distinct Inputs Section (Compilation Report)
