Displays information regarding the IOGND pins in MAX® 7000B devices. This section is omitted if you do not specify a MAX 7000B device for compilation.
Information is provided as follows:
| Heading | Description | Value |
|---|---|---|
| IOGND Group | Shows the IOGND Group in the device. |
<group letter> |
| Name | Shows the name assigned to the IOGND pin. |
<pin name> |
| Pin # | Shows the IOGND pin number. |
<pin number> |
| Migration Pin # | Shows the pin number of the largest compatible migration device. This column appears only when you select one or more migration devices and turn on Base the Pin-Out File (.pin) and floorplan package views on the largest selected SameFrame™ device in the Migration Devices dialog box, which is available from the Device page in the Settings dialog box (Assignments menu). | <pin number> |
| Type | Shows the type of the specific IOGND pin. |
Input | Bidir | Output |
| VCCIO | Shows the VCCIO voltage for the specific IOGND pin. |
-- | 1.8V | 2.5V | 3.3V |
| I/O Standard | Shows the I/O standard assigned to the specific IOGND pin. |
1.8-V | 2.5-V | GTL+ | LVCMOS | LVTTL | SSTL-2 Class I, II PCI | SSTL-3 Class I, II |
| Input Vref | Shows the input reference voltage (VREF) for the specific IOGND pin. |
-- | VREFA | VREFB |
| Current | Shows, in milliamperes (mA), the current used by the IOGND pin. |
<total current used> mA |

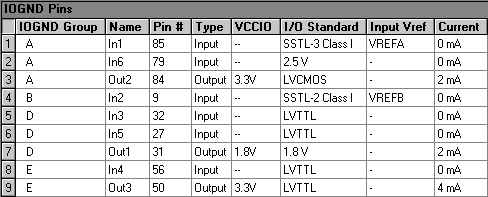

The following example shows a portion of the IOGND Pins section generated for a sample design:
|
