Displays a bar chart showing the number of MegaLAB^™ structures using MegaLAB interconnect lines (that is, the number of lines—located in the MegaLAB interconnect—used out of a maximum of 279 MegaLAB interconnect lines) in the specified ranges.

This section only occurs if you specify an APEX^™ 20K, APEX^™ II, or ARM^®-based Excalibur^™ device for compilation.

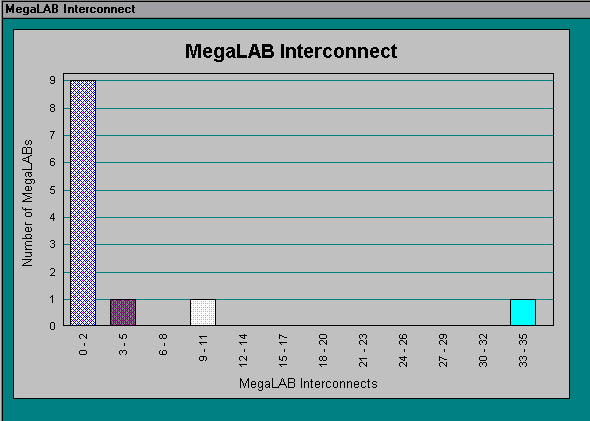

The following example shows the MegaLAB Interconnect section of a sample design:
