DSP Block Usage Summary Section (Compilation Report)



Lists information about the usage and availability of the DSP blocks in Stratix and Stratix GX devices, including multipliers, adders, accumulators, and DSP block 9-bit elements. This section is omitted if the design does not include DSP blocks.

Information is provided as follows:

Heading Description
Statistic Lists the various operating modes of the DSP blocks.
Number Used Shows the number of each type of DSP block used in the device.
Available per Block Shows the number of available resources in the DSP block for each DSP mode.
Maximum Available Shows the total number of available resources in the device for each mode, if all DSP blocks on the device operate in the same mode.



The following example shows the DSP Block Usage Summary section generated for a sample design:

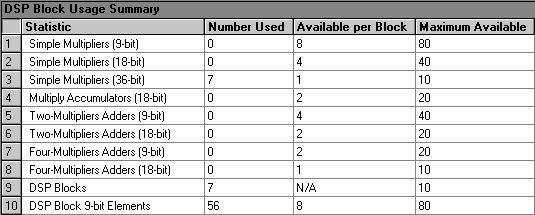

DSP Block Usage Summary (Compilation Report)
