Lists information regarding usage of DSP blocks in Stratix™ and Stratix™ GX devices. This section is omitted if the design does not include DSP blocks.
Information is provided as follows:
| Heading | Description | Value |
|---|---|---|
| Name | Shows the name of the node contained in a DSP block. | <DSP block node instance name> |
| Mode | Shows the mode in which the DSP block is operating. | Simple Multiplier | Multiply Accumulator | Two-Multipliers Adder | Four-Multipliers Adder |
| Location | Shows the location on the DSP block where the instance is located. | <DSP block location> |

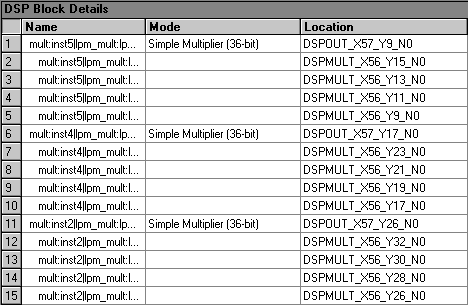

The following example shows the DSP Block Details section generated for a sample design:
|
