Displays the settings for the Design Assistant you specified in the Design Assistant page of the Settings dialog box (Assignments menu). This section is omitted if no settings are specified in the Design Assistant page, or if a device other than an APEX™ 20KC, APEX 20KE, or APEX™ II device is specified for compilation.
Information is provided as follows:
| Option | Description | Setting |
|---|---|---|
| Design Assistant mode | Shows the mode for the Design Assistant. | After Fitter | After Synthesis | None |
| Report all nodes with more than minimum fan-out. | Shows whether the Design Assistant should report all nodes with more than the minimum fan-out. | On | Off |
| Minimum number of fan-out | Shows the number of of minimum fan-out on which Design Assistant should report. | <number of fan-out> |
| Report nodes with highest fan-out | Shows whether the Design Assistant should report the nodes with the highest fan-out. | On | Off |
| Maximum number of nodes to report | Shows the maximum number of high fan-out nodes on which Design Assistant should report. | <number of nodes> |

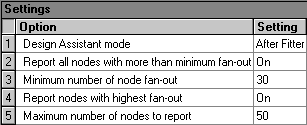

The following example shows a portion of the Design Assistant Settings section generated for a sample design:
|
