Displays information about the rules violations reported by the Design Assistant. This section is omitted if no settings are specified in the Design Assistant page the Settings dialog box (Assignments menu), or if a device other than an APEX™ 20KC, APEX 20KE, or APEX™ II device is specified for compilation.
Information is provided as follows:
| Heading | Description | Value |
|---|---|---|
| Rule name | Shows the name of the rule that was violated. | <rule name> |
| Severity of rule violation | Shows the severity of the rule violation. | Critical | High | Medium | Information Only |
| Name | Shows the name of the node or I/O bank that violates the specific rule. | <node> |
| Fan-Out | Shows the number of fan-out for the node (if applicable). | <number of fan-out> |

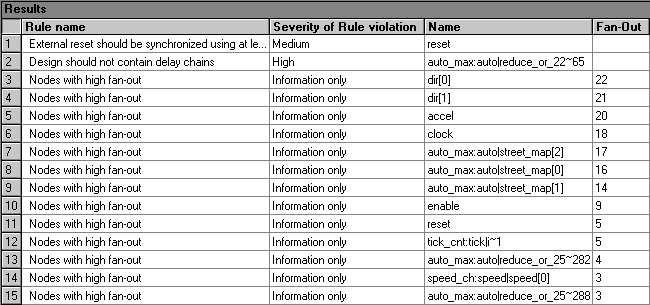

The following example shows a portion of the Design Assistant Results section generated for a sample design:
|
