RASSP Hardware / Software Codesign Application Note

1.0 Executive Summary

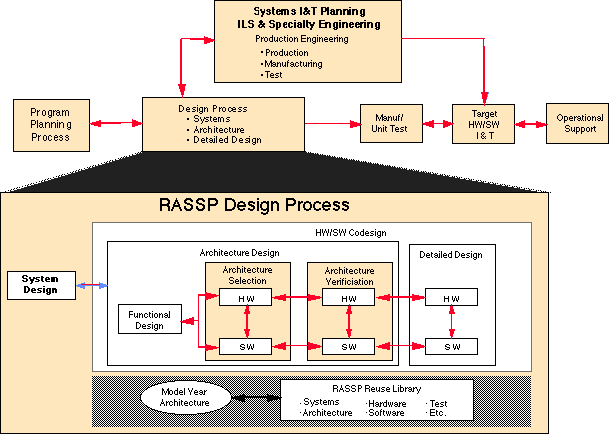

The RASSP process shown in Figure 1 - 1 begins with an architecture-independent data flow graph(s) representing the signal processing algorithms for the intended application. The graphs may initially be non-functional in the sense that they represent the desired data flow but not the functional details. During the process of selecting an architecture, the nodes of the data flow graph(s) are allocated to hardware or software. Allocation to hardware implies that special-purpose hardware will be used, while allocation to software implies that the processing nodes will be implemented on specific programmable processors. This allocation is initially performed using engineering judgement but may be modified as tradeoff studies proceed. The graph nodes allocated to software are mapped to the multiple processors in the architecture, and performance estimates are generated using VHDL token-based simulation. Timing data used in the simulations may either be estimates or benchmarked data on specific processors. During the architecture selection process, alternative hardware architectures are developed and iteratively optimized by modifying either the software mapping or the hardware architecture. Software is automatically generated for all of the mapped partitions and execution time is estimated for the target hardware.

Although the RASSP process fosters maximum reuse of both hardware and software, new software primitives or custom hardware is often required for an application. When custom hardware is required, HW/SW codesign refers to the process of model generation and the verification of the software on the hardware models prior to hardware build. In the case of new software primitives, HW/SW codesign refers to the process of software generation and verification on a hardware testbed or model(s) of the hardware to ensure both function and timing.

Lockheed Martin ATL has implemented its Hardware/Software Codesign process as part of an overall RASSP design process. As shown in Figure 1-1, the RASSP design process is composed of three major functional processes called system design, architecture design, and detailed design. Hardware/Software Codesign is implemented from the initial partitioning of functions to hardware and software elements all the way to manufacturing release. At each step in the RASSP process, interactive simulation using hardware and software models is performed at equivalent levels of abstraction to verify behavioral operation.

1.2 The System Design Process

The system requirements are translated into simulatable functions, which we refer to on RASSP as an executable specification. This represents the first level at which requirements are specified in a manner that we can readily match to simulators to verify performance and functionality in an automated manner. In this phase, processing time is allocated to functions and functional behavior is defined in the form of algorithms that are executable. At this point, all functions are implementation-independent. The executable specification represents a major portion of the systems design information model.

1.3 The Architecture Design Process

The architecture process is driven from a data flow graph (DFG) description of the processing which is required. The DFG is an architecture independent description of the processing which must be performed by the signal processor. During the architecture process some of the functionality described in the DFG may be allocated to hardware while other functionality may be allocated to software to be executed on COTS DSPs. The architecture independent version of the DFG represents an application description which is the starting point for Hardware/Software Codesign on any particular architecture of interest.

This application note describes:

• a generic Hardware/Software Codesign process;
• tools and techniques used in the process with emphasis on application development, performance simulation and autocoding;
• the Lockheed Martin ATL approach to Hardware/Software Codesign using the Semi-Automated IMINT Processor (SAIP) RASSP Benchmark as an example; and
• lessons learned.
