1.2.2 How many Processes?

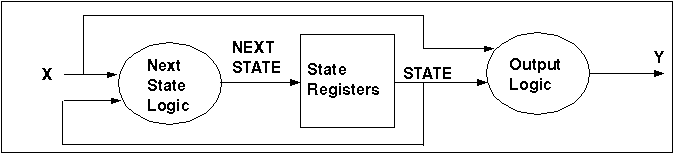

Mealy Example, unregistered Outputs
Output logic always in an own process or concurrent assignments!
State register inference always in an clocked (STATE) process!
Next state logic in an own process OR in the clocked process.
