Searching for item values in the List window

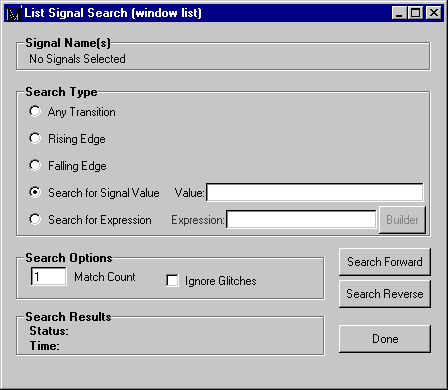

Select an item in the List window. Select Edit > Search (List window) to bring up the List Signal Search dialog box.
Signal Name(s) shows a list of the items currently selected in the List window. These items are the subject of the search. The search is based on these options:
- Search Type: Any Transition
Searches for any transition in the selected signal(s).- Search Type: Rising Edge
Searches for rising edges in the selected signal(s).- Search Type: Falling Edge
Searches for falling edges in the selected signal(s).- Search Type: Search for Signal Value
Searches for the value specified in the Value field; the value should be formatted using VHDL or Verilog numbering conventions; see "Numbering conventions" .
Note: If your signal values are displayed in binary radix, see "Searching for binary signal values in the GUI" for details on how signal values are mapped between a binary radix and std_logic.- Search Type: Search for Expression
Searches for the expression specified in the Expression field evaluating to a boolean true. Activates the Builder button so you can use "The GUI Expression Builder" if desired.The expression can involve more than one signal but is limited to signals logged in the List window. Expressions can include constants, variables, and DO files. If no expression is specified, the search will give an error. See "Expression syntax" for more information. - Search Options: Match Count
Indicates the number of transitions or matches to search.You can search for the n-th transition or the n-th match on value.- Search Options: Ignore Glitches
Ignores zero width glitches in VHDL signals and Verilog nets.The Search Results are indicated at the bottom of the dialog box.
