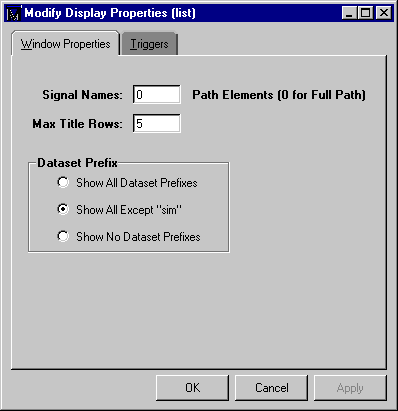

Window Properties tab
The Window Properties tab includes these options:
- Signal Names
Sets the number of path elements to be shown in the List window. For example, "0" shows the full path. "1" shows only the leaf element.- Max Title Rows
Sets the maximum number of rows in the name pane.- Dataset Prefix: Show All Dataset Prefixes
Displays the dataset prefix associated with each signal pathname. Useful for displaying signals from multiple datasets.- Dataset Prefix: Show All Except "sim"
Displays all dataset prefixes except the one associated with the current simulation - "sim." Useful for displaying signals from multiple datasets.- Dataset Prefix: Show No Dataset Prefixes
Turns off display of dataset prefixes.
