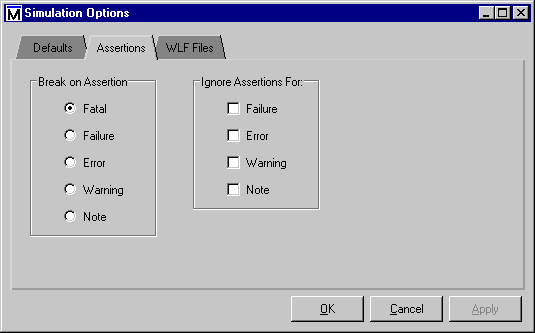

Assertion settings tab
The Assertions tab includes these options:
- Break on Assertion
Selects the assertion severity that will stop simulation. Edit the BreakOnAssertion variable in the modelsim.ini file to set a permanent default.- Ignore Assertions For
Selects the assertion type to ignore for the current simulation. Multiple selections are possible. Edit the IgnoreFailure, IgnoreError, IgnoreWarning, and IgnoreNote variables in the modelsim.ini file to set permanent defaults.When an assertion type is ignored, no message will be printed, nor will the simulation halt (even if break on assertion is set for that type).
Note: Assertions that appear within an instantiation or configuration port map clause conversion function will not stop the simulation regardless of the severity level of the assertion.
