Pins of the XC95108 CPLD in a 84 PLCC package

and associated connections on the XESS XS95 Board





The following table lists the pins numbers and names for the 84 pin XC95108 CPLD and the accociated connections on the XS95 board.. For more information about the XC9500 CPLD devices, please consult the Xilinx website.

The pin numbering of the 84 pin FPGA is given in the following figure.

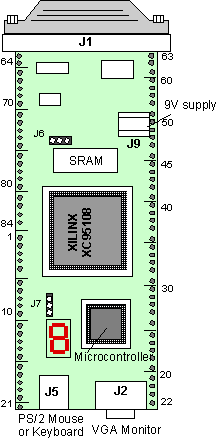

XS95 Board

SPECS XC9500

Device: XC95108

No. of Macrocells: 108

Usable Gates: 2,400

fCNT.: 125 MHz

Delay: tPD = 7.5ns pin-to-pin logic delays (see data book for more information)

Programmable outputs: 24 mA drive, 3.3V or 5V I/O, slew rate control.

JTAG Boundary scan support

Figure 1: Pin numbering of the 84 pin PLCC

Table I: Pin number and corresponding connections on the XS95 board

CHIP PIN No.
XC95108 Pin Name
XS95 board connection
1
I/O A4 (Address bit of the SRAM)
2
I/O A7 (Address bit of the SRAM)
3
I/O  A5 (Address bit of the SRAM)
4
I/O  Free I/O 0
5
I/0  P1.3
6
I/O P1.0 (Port 1 of the microcontroller) and PC parallel port Control Output C0
7
I/O  P1.1
8
GND
9
I/O /GCK1(Global CLK1) CLK (from Programmable oscillator)
10
I/O /GCK2 Output clock generated by the CPLD, connected to the clock input XTAL1 of the microcontroller.
11
I/O P1.2
12
I/O /GCK3 Free I/O 1
13
I/O PSEN (program store enable)
14
I/O 7-segment disp.-f (S5)/ Red1of VGA
15
I/O 7-segment disp.-a (S6)/Hor SYNC of VGA
16
GND
17
I/O 7-segment disp.-g (S3)/ Green1of VGA
18
I/O 7-segment disp.-b (S4)/ Red0 of VGA
19
I/O 7-segment disp.-e (S2)/ Green0 of VGA
20
I/O ALE (address latch enable pin)
21
I/O 7-segment disp.-d (S0)/Blue0  of VGA
22
VCC
23
I/O 7-segment disp.-c (S1)/ Blue1 of VGA
24
I/O 7-segment disp. - dec. pt/ Vert. SYNC of the VGA
25
I/O Free I/O 2
26
I/O P3.4 (T0 - Timer 0) and KB_CLK of PS/2
27
GND
28
TDI (Test data in - for boundary scan) P2.7( A15): Port P2.7 of microcontroller and addr. bit A15 of SRAM (only on the 128KB)
29
TMS  (test mode) (for boundary scan) ALE (address latch enable pin)
30
TCK (Test clock - for boundary scan)
31
I/O P3.0 (RXD)
32
I/O P3.7 (/RD)
33
I/O P3.5 (T1 - timer 1)
34
I/O P2.7(A15).A15
35
I/O P0.7(AD7)/D7 (multiplexed address/data port and also conntected to data pin D7 of SRAM)
36
I/O P0.6(A.D6)/D6
37
I/O P0.5(A.D5)/D5
38
VCC
39
I/O P0.4(AD4)/D4
40
I/O P0.3(AD3)/D3
41
I/O P0.2(AD2)/D2
42
GND
43
I/O P0.1(AD1)/D1
44
I/O P0.0(AD0)/D0
45
I/O RST (reset input of the microconroller)
46
I/O Parallel port data output  PC-D0 (can be used for clock signals - has an inverting Schmitt-trigger)
47
I/O Parallel port data output PC-D1 (can be used for clock signals - has an inverting Schmitt-trigger)
48
I/O Parallel port data output PC-D2
49
GND GND
50
I/O Parallel port data output PC-D3
51
I/O Parallel port data output PC-D4
52
I/O Parallel port data output PC-D5
53
I/O P2.4(A12)/A12 (Port P2.4 of microcontroller and addr. bit A12 of SRAM
54
I/O P2.2(A10)/A10
55
I/O P2.3(A11)/A11
56
I/O P2.1(A9).A9
57
I/O P2.5 (A13)/A13
58
I/O P2.0(A8)/A8
59
TDO
60
GND
61
I/O P2.6 (A14)/A14
62
I/O /OE (SRAM output enable pin)
63
I/O P3.6 (/WR - data write) and /WE of SRAM
64
VCC
65
I/O /CE (SRAM chip enable)
66
I/O P1.6  and parallel port PC-S5
67
I/O P1.7
68
I/O P3.3 (/INT1 - interrupt1)
69
I/O P3.2 (/INT0 - interrupt0)
70
I/O P3.1 (TXD), parallel Port PC-S6, KB_Data of PS/2 port
71
I/O P1.5  and parallel port PC-S3
72
I/O P1.4 and parallel port PC-S4
73
VCC
74
I/O A16 (Addr bit of SRAM) (For 128KB version)
75
I/O A0 (Addr. bit of SRAM)
76
I/O Free I/O 3
77
I/O Free I/O 4
78
VCC 5V
79
I/O A1 (SRAM)
80
I/O Parallel port data output PC-D7
81
I/O Parallel port data output PC-D6
82
I/O A2 (SRAM)
83
I/O  A6 (SRAM)
84
I/O A3 (SRAM)
