Displays the number of lines plus the number of half-lines (that is, lines that traverse half of the device in a vertical direction) used by the Priority FastTrack® column interconnect channels, which are part of the FastTrack interconnect and route signals throughout a column of LAB structures. This section is omitted if you are not using a Mercury™ device.
Information is provided as follows:
| Heading | Description |
|---|---|
| Col. | Shows the LAB column number where the priority column interconnect channel is located. |
| Lines Available | Shows the total number of priority column interconnect lines and half-lines available for use by signals in the design. |
| Lines Used | Shows the number and the percentage of priority column interconnect lines used by signals in the design. |
| Half-Lines Used | Shows the number and the percentage of priority column interconnect half-lines used by signals in the design. |

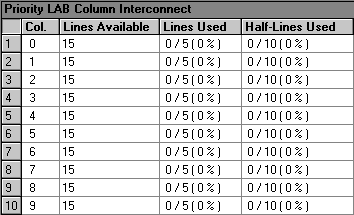

The following example shows the Priority LAB Column Interconnect section for a sample design:
|
