Report Window

Embedded Cells Section (Compilation Report)



Displays information about the embedded cells in the device. This section is omitted if you specify a FLEX® 6000, MAX® 3000, or MAX 7000 device for compilation.

Information is provided as shown in the following table:

Cell # Shows the embedded cell number.
Name Shows the name of the design entity located in the particular embedded cell.
Mode Shows whether the particular embedded cell is in product-term, RAM, or content-addressable memory (CAM) mode.
Turbo Shows whether Turbo  Bit (in the By Node tab of the Assignment Organizer dialog box) has been turned on or off.

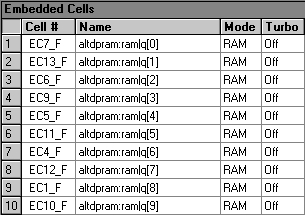

The following example shows the Embedded Cells section of a sample design:


Embedded Cells Section (Compilation Report)
