Graphic Editor

Merging a Bus



You do not need to use connections to a bus to rip or merge it. Ripping and merging the names are enough. For example, you can merge three buses by assigning a new name to a new bus.

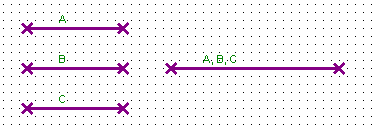

Example of Merging a Bus
