Floorplan Editor

By Slack Tab (Critical Path Settings Command)

Allows you to specify the type and number of critical paths you want to display in the Floorplan Editor based on slack criteria and selected only from the list of paths in the Report Window. You can display critical paths based on slack criteria only after you make timing assignments to entities or nodes using the Timing assignment category in the Assignment Categories list in the Assignment Organizer dialog box.

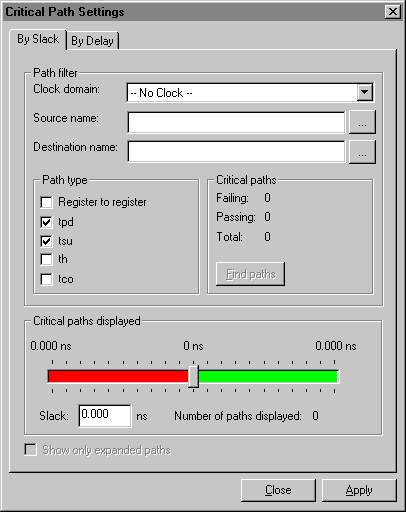

Pointer Click any item in this picture for information on that item:


By Slack Tab Close Apply Show only expanded paths Critical Paths Displayed Path type Critical Paths Clock domain ... ... Source name Destination name
