Sockets for Prototyping with Actel FPGAs



Welcome to the Actel prototyping sockets page! Actel offers a range of surface-mount sockets to make it easier for designers to prototype their designs using Actel's one-time-programmable FPGAs.

These sockets are available in small quantities from Actel - just contact your local Actel representative or distributor for pricing and availability information. If you need quantities of 25 pieces or more, please contact your local vendor's representative or distributor. (For more information, see below)

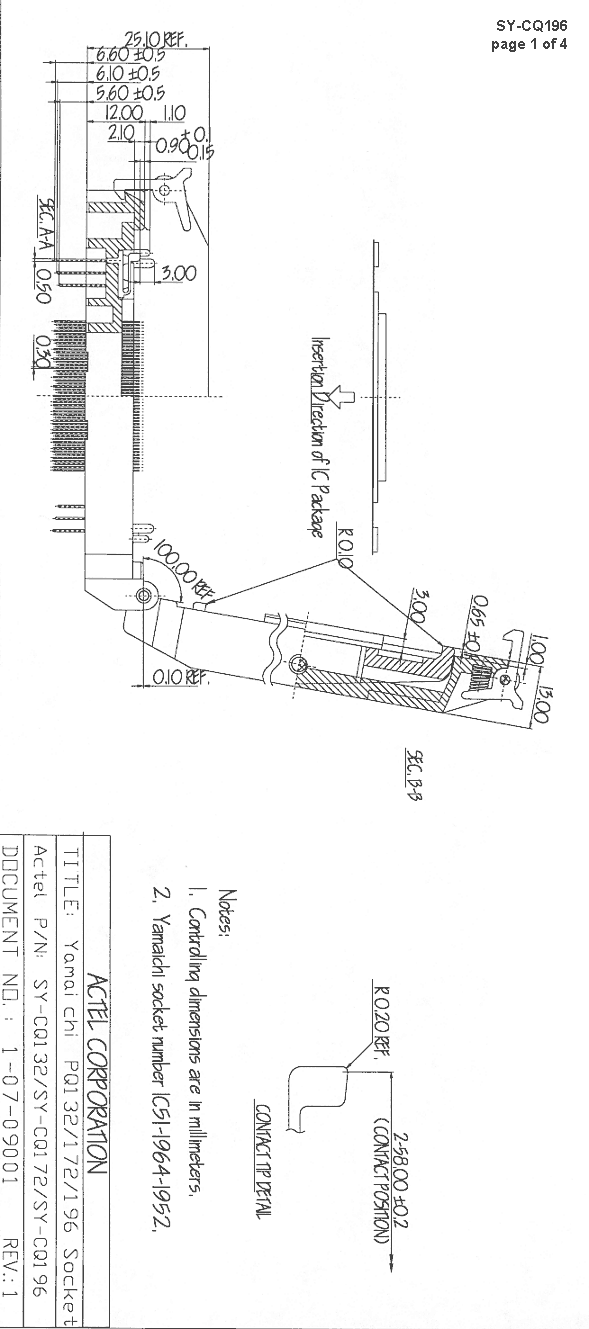

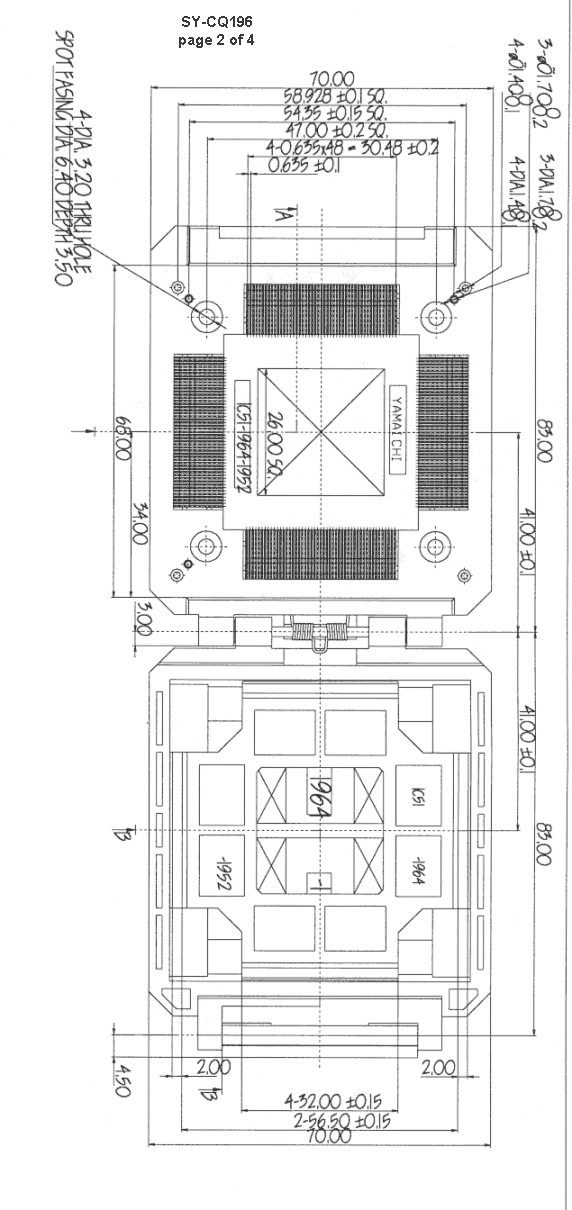

You can download mechanical drawings of these prototyping sockets by clicking on the drawing number.

Actel provides simple step-by-step assembly flow instructions for attaching QFP and BGA sockets to a PCB. Also included is solder reflow information along with a sample standard reflow temperature profile.

Additional detailed information for prototyping sockets:

EIA Standard Board Layout drawing (3/5/99, 16kB pdf)
Socket Assembly Instructions for QFP and BGA (Ball Grid Array) packages
    (7/13/99, 103 kB pdf)

Mechanical Drawings for Prototype Socket
Package Pins Actel Part
Number
Vendor Part
Number
Drawings Available
FG
1.00mm
144 ball
13mm x 13mm
SE-FG144 E-tec#:
BPW144-1030-12AA01
se-fg144a.pdf (125kb)
se-fg144ab.pdf (288kb)
FG
1.00mm
484 ball
27mm x 27mm
SE-FG484
E-tec #:
BPW484-1030-26AB01
se-fg484-a.pdf (142kb)
se-fg484-ab.pdf (285kb)
BGA
1.27mm
272 ball
27mm x 27mm
Method 1:
SC-BG272
CTI Part #:
8627-272-0-00
sc-bg272.pdf (288kb)
Method 2:
SM-BG272-A
SM-BG272-B
Mill-Max Part #:
S587-10-272-10-005437
S582-11-272-10-005414
sm-bg272-a.pdf (139kb)
sm-bg272-b.pdf (240kb)
sm-bg272-ab.pdf (130kb)
Method 3:
SE-BG272-A
----------------
SM-BG272-B

E-tec Part #
BPW-272-1270-20AC11
--------------------------
Mill-Max Part #:
S582-11-272-10-005414

se-bg272-a.pdf (145kb)
se-bg272-ab.pdf (297kb)
--------------------------
sm-bg272-b.pdf (240kb)
BGA
1.27mm
329 ball
31mm x 31mm
Method 1:
SM-BG329-A
SM-BG329-B
Mill-Max Part #:
S587-10-329-12-005437
S582-11-329-12-005414
sm-bg329-a.pdf (145kb)
sm-bg329-b.pdf (241kb)
sm-bg329-ab.pdf (129kb)
Method 2:
SE-BG329-A
SM-BG329-B
Mill-Max Part #:
BPW-329-1270-23AB11
S587-10-329-12-005437
se-bg329-a.pdf (150kb)
sm-bg329-b.pdf (241kb)
se-bg329-ab.pdf (288kb)
BGA
1.27mm
456 ball
35mm x 35mm
SC-BG456 CTI #:
8635-456-0-00
sc-bg456.pdf (266kb)
BGA
1.27mm
313 ball
35mm x 35mm
SC-BG313 CTI Part #:
8635-313-0-00
sc-bg313.pdf (196kb)
CQFP 132 pin
172 pin
196 pin
SY-CQ196 Yamaichi Part #:
IC51-1964-1952
pinout 132 (pdf 10kb)
pinout 172 (pdf 10kb)
pinout 196 (pdf 10kb)
PQFP 100 pin SY-PQ100-1 Yamaichi Part #:
IC149-100-114-S5
sy-pq100-1.pdf (222kb)
PQFP 144 pin SY-PQ144-1 Yamaichi Part #:
IC149-144K11453-0
sy-pq144-1.pdf (225kb)
PQFP 160 pin SY-PQ160-1 Yamaichi Part #:
IC149-160-123-S5
sy-pq160-1.pdf (230kb)
PQFP
RQFP
208 pin SY-PQ208-2 Yamaichi Part #:
IC149-208-161-S5
sy-pq208-2a.pdf (290kb)
sy-pq208-2b.pdf (198kb)
PQFP
RQFP
240 pin SY-PQ240 Yamaichi Part #:
IC149-240-167-S5
sy-pq240a.pdf (292kb)
sy-pq240b.pdf (135kb)
TQFP 176 pin SY-TQ176 Yamaichi Part #:
IC149-176-166-S5
sy-tq176a.pdf (253kb)
sy-tq176b.pdf (142kb)
TQ144 144 pin SY-TQ144 Yamaichi Part #:
IC149-144-145-S5
sy-tq144a.pdf (251kb)
sy-tq144b.pdf (130kb)
VQFP 80 pin SY-VQ80-2 Yamaichi Part #:
IC149-080-151-S5
sy-vq80-2a.pdf (171kb)
sy-vq80-2b.pdf (122kb)
TQFP/
VQFP
100 pin SY-VQ100-1 Yamaichi Part #:
IC149-100-125-S5
sy-vq100-1a.pdf (176kb)
sy-vq100-1b.pdf (120kb)

Note: If an existing board layout does not have the alignment pin hole, the new SY-PQ and SY-VQ sockets can still be used by breaking off the alignment pins.

For BGA sockets, please see socket drawing xx-BGxxx-AB to determine which method is best to use.

If you have any questions relating to these sockets, please email Sara Arlin at Actel Product Marketing (sara.arlin@actel.com).


For more detailed information on these sockets, including electrical and material specifications, or to order production type and quantity sockets, contact the specified manufacturer.
