작성일: 2017.03.24

* 처음 계획은 타이핑을 해서 올리는 것이었는데, 일단 스캔한 문서 그대로 올립니다.  타이핑 작업은 차차 시간되는대로...  화면상의 가독성이 좋지않으신 경우, 글자들이 잘 보일때까지 창의 크기를 늘리시면 됩니다.

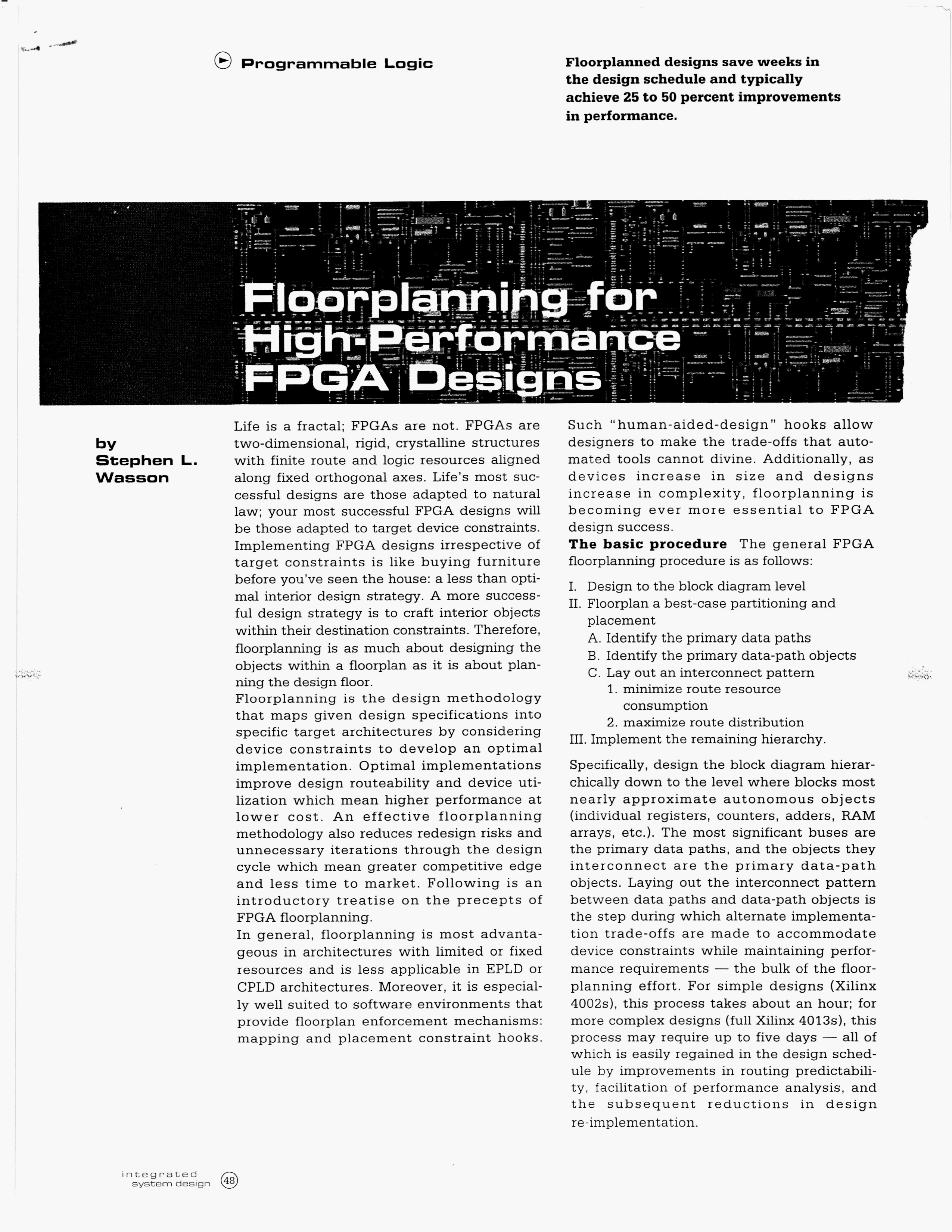

* Floorplanning for High-Performance FPGA Designs, Stephen Wasson, March 1995, Integrated System Design page 1 *

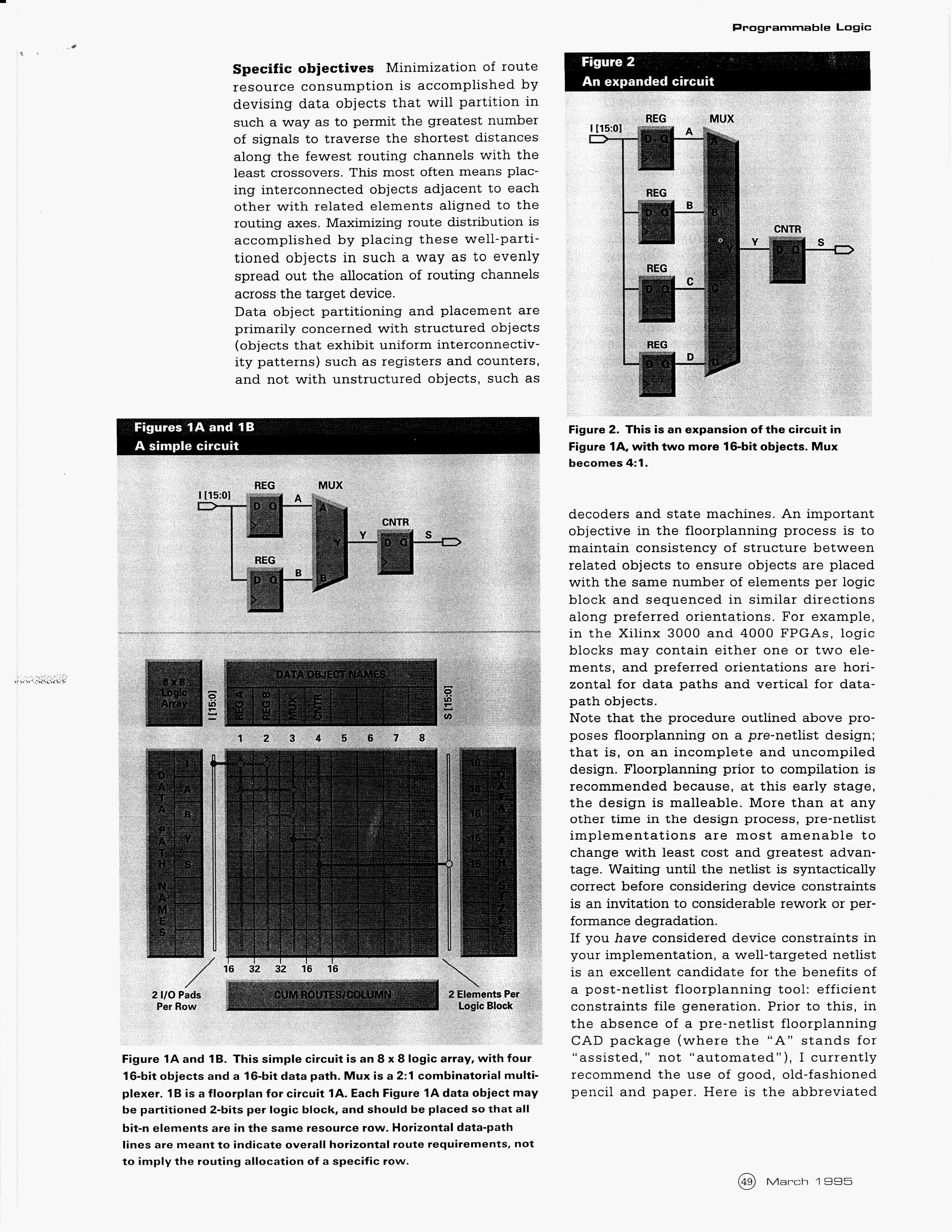

* Floorplanning for High-Performance FPGA Designs, Stephen Wasson, March 1995, Integrated System Design page 2 *

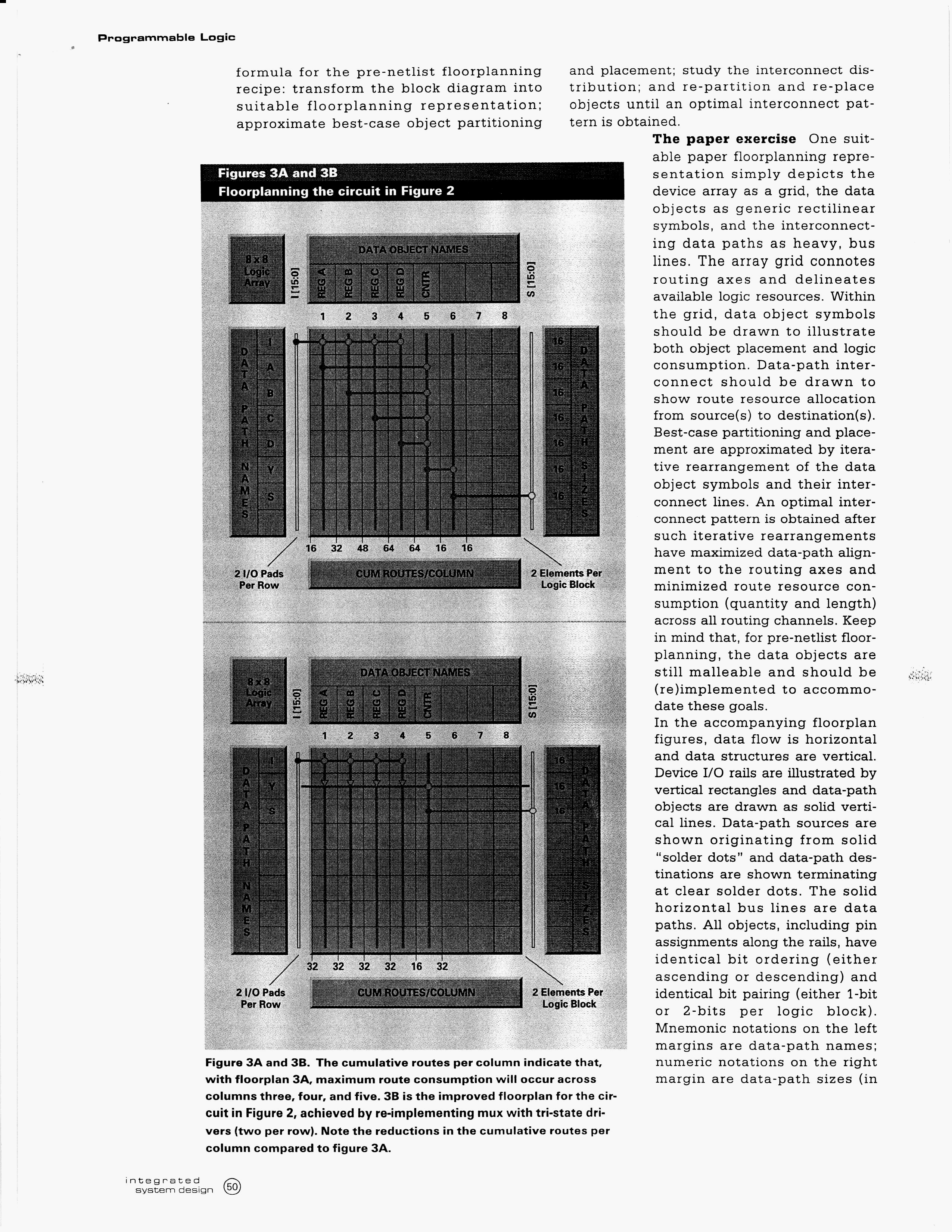

* Floorplanning for High-Performance FPGA Designs, Stephen Wasson, March 1995, Integrated System Design page 3 *

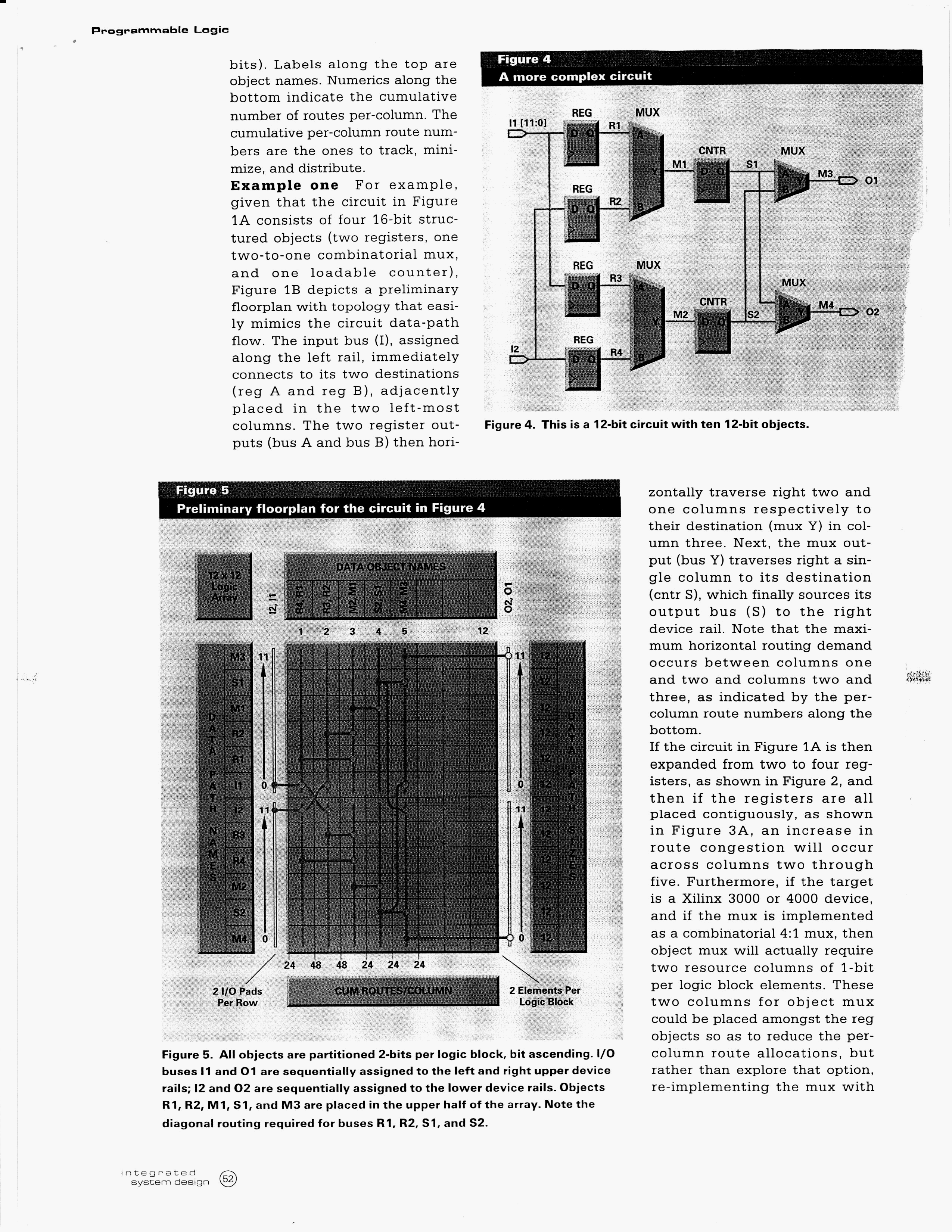

* Floorplanning for High-Performance FPGA Designs, Stephen Wasson, March 1995, Integrated System Design page 4 *

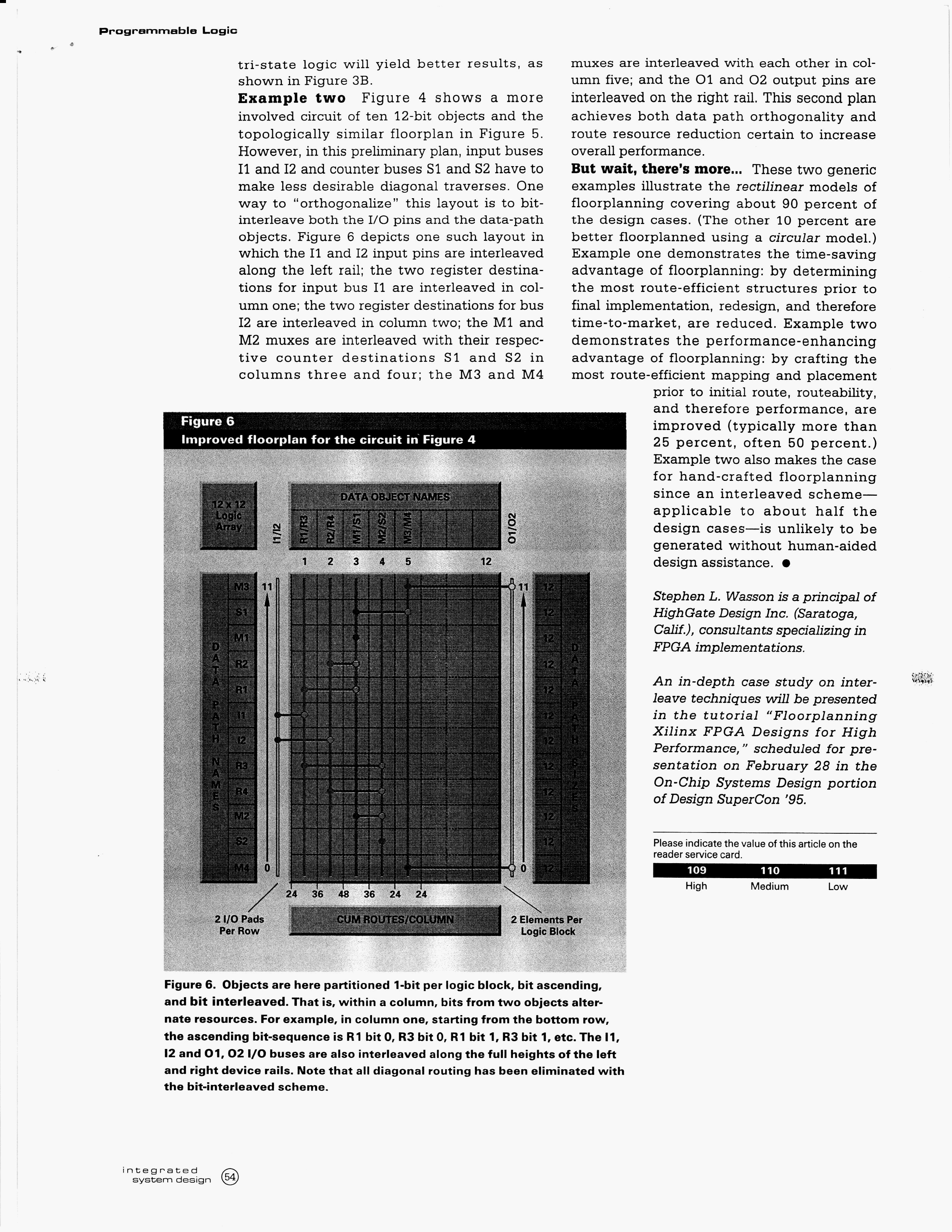

* Floorplanning for High-Performance FPGA Designs, Stephen Wasson, March 1995, Integrated System Design page 5 *

* 파일명: F4HPFPGAD.pdf (7,289,464 bytes) * download *
