![](L1-3.gif) | Honeywell PML Handshaking Protocol | ![](L2-3.gif) |

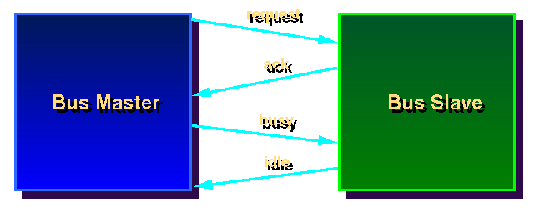

- Honeywell PML uses a handshaking protocol similar to that of ADEPT
- Tokens on the bus have one of four values: idle, request, ack, busy
- Tokens change the state of the token by changing the state field of the utoken RECORD
![](IMAGE56-1.gif)
Copyright Honeywell, Inc. Reprinted with permission.
