Within RASSP, software development encompasses DFG-based software, graphical-based control flow software, support software, and library population. We assume that a signal processor must communicate with a higher-level system, perhaps a command and control system for the platform. Messages must be accepted from the higher-level system that specify actions to be taken by the signal processor, such as data requests, parameter setting, mode switching, etc.. We also assume that the signal processor software must support diagnostics, error handling, startup initialization, downloading etc. In summary, the signal processor software development must result in the generation of all the code that must be downloaded to each processor within the system.
If all required signal processing can be constructed from validated elements from the reuse library, the signal processing software represented by the DFGs is automatically generated and documented. When all required processing cannot be constructed from validated library elements to meet the requirements (or when new hardware architectural elements are added to the reuse library), we must generate and validate new library primitives and/or operating system support software elements. This is referred to as library population and is discussed separately in this document. In addition to the signal processing represented by the DFGs, it is also necessary to develop the control software. This, as discussed earlier, is referred to as the command program. Command program generation is supported by emerging tools, which include autocode generation from state transition diagrams.
See also the following application notes for specifics on the software development process:
The software aspect of the detailed design process is the production of the load image. The items used and/or produced in this phase are described in the following paragraphs.
Graph Realization
A graph realization is a compiled version of the equivalent application graph. It is composed of data structures fully describing the software part of a graph, except for the values for control parameters and the actual parameters that will be bound to formal parameters. These actual values and parameters are defined at graph instantiation.
Partition Primitive Interface Description (PID)
A partition PID is the source code that represents a partition graph. The source code is written in the computational element's native language. Consequently, the architecture description and mapping the partitions to the architectural elements is required to produce the PIDs. The partition PID is produced from a partition in the partitioned graph and executes all the target processor-level primitives necessary to implement the domain-level primitives in the partition graph for the specific target processor. These partition PIDs are then compiled by the computational element's native language compiler so that they may be input to the load image.
Load Image

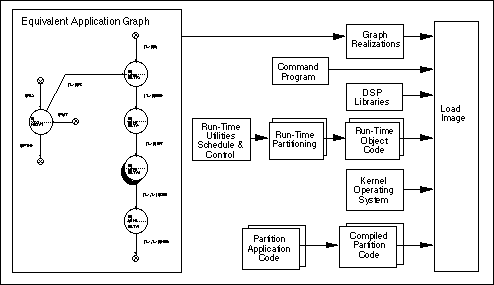

The load image is the end product of the software development process. To build a load image for an application, we combine the graph realizations produced for each equivalent application graph and their associated partition PIDs with all required microcoded primitives, the run-time object code, command program, and the kernel operating system for the selected architecture. The process is shown in Figure 9 - 1. This load image may then be downloaded to the target hardware and executed.
For the final test of the application, we run the test vectors used to validate the executable functional specification on the target architecture running the load image. The output vectors from this execution should match exactly with the test results from the executable requirement specification.
Run-Time System
A reusable run-time system will be provided that is built on top of operating system microkernel(s). This system is a set of run-time application programs that constitute a virtual machine which performs all graph execution functions and all system interface, control, and monitoring functions. These programs may be reconfigured to execute on appropriate processors of the candidate architectures. We will interface them to the kernel operating systems of supported processors as part of validating a computational or non-computational element of the Model Year Architecture. Translation software translates data flow graphs to forms executable by this system. Interfaces are defined for external data, control, test and debugging, and monitoring system functions. The run-time system provides reusable signal processing control/communication code based on standard operating system services. Availability of this reuse package will make a DFG implementation of the RASSP methodology economically practical for a range of medium to small system users who could not otherwise afford implementing a run-time graph execution system. Traditionally expensive run-time support development and testing will be reduced to run-time reuse package reconfiguration and new element validation in some cases.
Support Software
In addition to all of the DFG-related software, we will generate low-level software modules to support initialization, downloading, booting, diagnostics, etc. on the target hardware during the detailed design process. Since many of the support software functions were not tested in the architecture process, we must verify these functions via simulation during detailed design.
We generate load images by taking the autocoded and hand-generated portions of application and control code, and combining them with the communications and support software into a single executable for each processor. The run-time system, which provides the reusable control and graph management code, will have all the hooks required to interface with the support code.

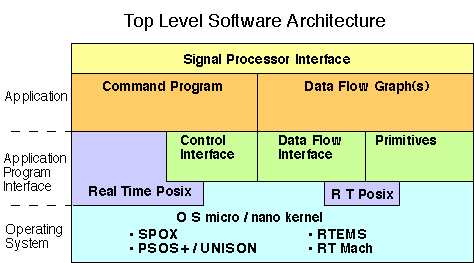

The top-level software architecture is shown in Figure 9 - 2. The application software consists of an interface to the world outside the signal processor in addition to a command program and data flow graphs. This could either be a user or, more likely, it could be a higher-level system as part of an overall platform. This interface receives messages from the outside which control the processing to be performed, request data from the signal processor, or provide parameters to the signal processor. The DFGs represent the signal processing algorithms that must be applied for each operating mode of the signal processor. The signal processing algorithms are represented as DFGs that drive the autocode generation to produce the executable code for each processor in the system. This process is supported by a reusable primitive library. The command program is the control flow program that provides the overall control, as dictated by the received messages. A run-time support system (represented in the figure by the control and data flow interface) provides the reusable data flow control and graph management for the signal processor. The run-time system is built upon a set of operating system services provided by a real-time microkernel using a standard interface. The run-time system is usable with any operating system microkernel that provides the necessary set of services. The run-time system will be a set of run-time application programs which constitute a 'virtual' machine that performs all graph execution functions and all system interface, control, and monitoring functions.
During the system design phase, we develop the initial system requirements. These requirements typically include all external interfaces to the signal processor; throughput and latency constraints; processing flows by operating mode; all mode transitions; and size, weight, power, cost, schedule, etc. We use high-level simulations to generate overall processing strings that are functionally correct and satisfy the application requirements. At this level, no allocation of processing functions to hardware or software is made.
Architecture definition involves creating and refining the DFGs that drive both the architecture design and the software generation for the signal processor. The input to this phase is the executable functional specification for a particular application and the command program specifications. During the architecture design process, we develop DFG(s) of the signal processing and allocate the elements to either hardware or software. The flow graph(s) are simulated both from a functional and performance standpoint with increasing fidelity until we achieve an acceptable hardware/software partitioning that meets the signal processing system requirements. During the architecture process, we conduct various trade-offs among architecture classes, processor types, specialized hardware elements, and communication mechanisms. We perform high-level, initial performance simulations so that we can quickly evaluate gross architecture trade-offs with size, weight, power, and cost estimations. We also make a first pass at the non-DFG software requirements and tasks definitions.
Once we select a candidate architecture for optimization, the simulations become more detailed and therefore more clearly represent the final system performance. At this level, we perform automated generation of the software partitions to provide executable threads that run on a group(s) of DSP elements. The items to be traded in the detailed software mapping are latency, processor utilization, memory requirements, and computational organization of each of the groups. When the design cycle is completed, the requirements will either be met or the simulation results will show that the candidate architecture is not capable of meeting these requirements. In the latter situation, we use the performance analysis results to indicate where to make architectural changes. The process is iterated until a satisfactory solution is obtained. We further develop non-DFG software code. During architecture verification, we use prototype hardware and behavioral simulations to simultaneously verify the performance and functionality of the overall signal processing system. The final verification is performed hierarchically, since it is unreasonable to simulate the entire system at the RTL or ISA simulator level because: a) the computation requirements of the signal processing application are beyond the scope of feasibility for simulation at the clock level; and b) the verification must be driven by the types and fidelity of the models available in the component library.
The output of the architecture design process is both a description of the detailed hardware architecture and a detailed description of the software (including the computation, scheduling, control, and operating system elements ) that must be generated/aggregated for downloading to each of the elements in the architecture.
The final step in the software development occurs during detailed design. The software aspect of the detailed design process is the production of the load image. We must generate and package the final code for downloading and execution on the target hardware. Since we verify most of the software developments during the architecture phase, they are limited at this point to generation of those elements that are target-specific. This may include configuration files, bootstrap and download code, target-specific test code, etc. All the software is compiled and verified (to the extent possible) on the final virtual prototype.
The software load image generation is an automatic build process that is driven by the autocode generation results. The inputs to the process include the architectural description, the detailed DFGs describing the processing, and the partitioning and mapping information produced in the architecture design and verification process. This process is controlled by a software build management function that extracts the necessary information from the library and manages construction of all downloadable code, as directed by the partitioning and mapping data.
The software build management function must coordinate construction of the software to be downloaded to each processing element in the target architecture, the bootup software which initializes the processor, and any control code required for scheduling and sequencing the processors. When complete, the 'build' footprint is preserved in the library under configuration control. In addition to preparing this software, the 'build' management function initiates the documentation process. The documentation function uses documentation elements stored in the library to construct the overall software documentation. All library elements, including both operating system services and application primitives, must have associated documentation elements contained in the library that fully describe the algorithm, its implementation, ranges of applicability, and validation test results.
Since the software is autocode-generated, there are certain assumptions about the validation testing of the resultant software that must be supported by the library process. We assume each primitive has been unit tested. This means that a test suite has been developed for each primitive and this primitive has been instantiated by the software generation process and validated. During the architecture process, we periodically repeat this unit testing as the signal processing graphs are transformed from one form to another. The validation process has also been applied to control program software and we do not have to validate each instantiation of the control program.
The software which is constructed must finally be validated on the target hardware. This should be based upon the system test stimulus that has been carried throughout the development process. This is the first time that the software and physical target hardware has come together. Based upon the testing, simulation, and virtual prototyping that has been performed throughout the RASSP architecture and detailed design processes, the final validation time is considerably shorter than the traditional integration and test times. See the SAR, ETC4ALFS on COTS Processors, and the SAIP case studies for validated examples of these reductions.
The library must contain, for each primitive, a representation or model that supports both behavioral and performance simulation at various degrees of fidelity. In addition, the library management system must manage the application DFGs, candidate architectures, DFG partitioning files and mapping files.

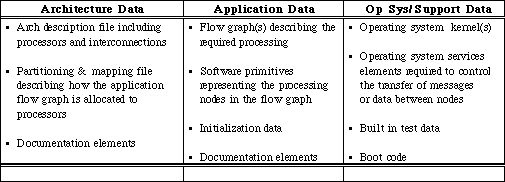

Information available in the library to support the generation of target software is shown in Table 9 - 1. This information is comprised of architecture, application, operating system, and support data. It includes the DFG that describes the processing, the software primitives that make up the processing nodes in the flow graph, the communication elements that facilitate the transfer of data between processing nodes, the partitioning and mapping data that describe how the flow graph is mapped to the individual processors, all the operating system kernels and support software the kernels use, any initialization information that may be necessary, and BIT data. The library also contains a mapping of the target-independent primitive to the specific processors supported in the Model Year Architecture. The software run-time system depends upon a given set of operating system kernel operations. These must be available for each specific DSP type and memory, I/O and message passing structure.
The library stores all information required to generate target software including all the elements shown in Table 9 - 1.
The library management system also stores pertinent information relative to the resultant software builds for the target hardware. Version build 'footprints' include all information necessary to reconstruct the build.
To support the documentation process, detailed documentation of library elements is a required part of the validation process for inserting elements in the reuse library. As discussed under library population, prototype software elements may be generated during the architecture selection process to support design trade-offs. When we select these prototype elements for permanent inclusion in the reuse library, they must be formally validated. Formal validation includes, among other things, generating detailed documentation for the library element. System documentation requires the assembly of the DFGs, along with the detailed library element documentation, the partitioning and mapping of those elements to the overall architecture, and the associated operating system kernel elements.
9.0 Integrated Software View
The overall RASSP process is based upon the philosophy that dramatic decreases in cycle time can only be achieved with maximum reuse of both hardware and software elements. This leads to the notion of a graph-based, correct-by-construction methodology using validated library elements that represent either software fragments and/or hardware instantiation of these elements. This section provides a view of the overall software development that is part of the hardware/software codesign activity. This has all been previously covered but is distributed throughout the architecture design and detailed design process descriptions.
9.1 Software in the Design Process
We performed much of the work normally associated with applications, control, and communications software development in the architecture process in the RASSP methodology. Detailed software design is concerned with aggregating and/or translating the compiled HOL code verified at the architectural level to downloadable target code. In addition, we will generate low-level software modules to support initialization, downloading, booting, diagnostics, etc. on the target hardware. Since many of the support software functions have not been tested in the architecture process, we must verify these functions via simulation during detailed design.
We generate downloadable code by taking the autocoded and hand-generated portions of application and control code, and combining them with the communications and support software into a single executable for each processor. The run-time system, which provides the reusable control and graph management code, will have all the hooks required to interface with the support code.
9.2 Hardware/Software Codesign

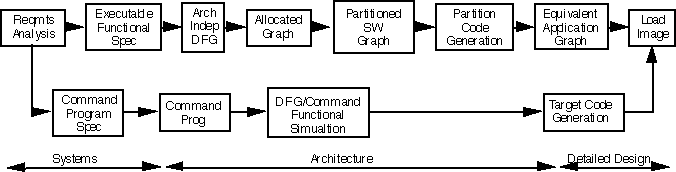

The hardware/software codesign discussion presented here is primarily from a software perspective. As part of the virtual prototyping methodology, RASSP uses the results of simulations tailored to the various levels of the design process, which span system design, architecture definition, and detailed design. Figure 9 - 3 shows the progression of software generation from the requirements to load image, with emphasis on the graph objects involved and the general RASSP process in which they occur. Also shown is the parallel development co-simulation of the command program. Feedback is not shown in the figure, since this is not intended to be a process diagram, but rather a walkthrough of how we generate and transform the signal processing DFG to downloadable code for a target processor. In reality, many of these steps (along with intermediate steps not shown) occur iteratively as we develop the hardware and software architecture.
9.3 Library Management
Since the overall RASSP methodology is library-based, managing the reuse library is an extremely important function. The domain analysis and organization of the reuse library is key to minimizing the developer's frustration with the process.
9.4 Documentation
The documentation we must produce includes all the required documentation delivered with the target hardware. It is important to note that the familiar 2167A waterfall software development and documentation process is no longer applicable to the library-based, correct-by-construction instantiation of deliverable software. The burden of documentation, validation and test generation is more appropriately allocated to the library population function for the individual software elements. However, when the final software is orchestrated for the target hardware, some form of documentation suitable for both users and maintenance must be produced.
