RASSP Methodology Application Note

2.0 Introduction

2.1 Methodology Application Note Objective

The objective of this application note is to provide an understanding of the design methodology developed for the LM/ATL RASSP program. It is not the intent to lead you, the reader, on a step-by-step discussion of this methodology as applied to any one particular application. Rather, it will use the workflows generated in IDEF3X format to lead you through a generic discussion of the RASSP methodology. One must always keep in mind that RASSP is an iterative and concurrent development process. Feedback or 'Failback' paths are identified within the workflows. However, because every program/project is unique, the failback paths may be different for each effort and the number of iterations of each design cycle will also vary.

2.2 Organization of the Application Note

Sections 5, 6, 7, and 8 are organized around the IDEF workflows developed for the Systems, Architecture, and Detailed Design processes. Clicking within the major boxes will enable you to explore the hierarchical nature of each of the major process levels. Defining the initial Systems, Architecture, and Detailed Design diagram as the First level, each of the major sections can be navigated to the following levels.

System Design - 3 levels
Architecture Design - 3 levels
Detailed Design - 4 levels

The rest of this application note contains the detailed descriptions of the methodology, the conclusions, and the references for additional detail. Section 3.0 is a high level overview of IDEF (ICAM (Integrated Computer-Aided Manufacturing) Definition). This reference is useful in order to better understand the constructs of IDEF and thus be able to review the process drawings. This allows the reader to get a quick understanding without having to read the detailed explanations.

Section 4.0 contains a description of some of the overall processes that are found throughout the RASSP methodology. They unify the design tasks that are described in subsequent sections. This section starts with a description of the RASSP methodology as a rixk driven iterative hierarchical virtual protoytping, spiral development process. The unifying process of Model Year Architecture, Hardware/Software Codesign, Design-for-Testability, and Reuse Library Management are then presented as a high-level introduction.

Section 5.0 then presents a top level summary of the system, architecture, and detailed design processes. This section provides the first links into the IDEF process flows that can lead the reader graphically through the methodology. These process flow are displayed in a hierarchical fashion and also contain links to the textual descriptions of the process found in Sections 6.0, 7.0, 8.0, and 9.0.

Section 6.0 provides the detailed discussion of the System Design process. It takes you through requirements analysis, functional analysis, system partitioning, and completes by discussing other items that need to be considered during design, i.e., DFT, IPT, design reviews, and use of VHDL in modeling.

Section 7.0 provides the detailed discussion of the Architecture Design process. It takes you through functional design, architecture selection, architecture verification, and software in the architecture design process. It completes with a discussion of other items that need to be considered during design, i.e., DFT, IPT, design reviews, and use of VHDL in modeling.

Section 8.0 provides the detailed discussion of the Detailed Design process. It takes you through module/MCM design, ASIC design, FPGA design, backplane and chassis design, and subsystem integration and test. It completes with a discussion of other items that need to be considered during design, i.e., DFT and use of VHDL in modeling.

Section 9.0 provides an integrated view of the software development process within the RASSP methodology. This has all been discussed previously in the System, Architecture, and Detailed Design sections since the methodology if a Hardware/Software Codesign one. It is provided here in one place so that those interested in only the software development may have an easier reference.

Section 10.0 provides a discussion of the implementation of a reuse management system that will assist in the design ÔforÕ and ÔwithÕ reuse. This is a key ingredient in reducing cost and cycle time for your designs.

Section 11.0 provides the reference information and the links to those references. It also provides links to all of the other application notes and case studies.

2.3 Linkage with other Application Notes

This methodology application note serves as a gateway to all of the other Application Notes and Case Studies created by Lockheed Martin ATL. The case studies ( SAR, ETC4ALFS on COTS Processors, and SAIP) will lead you through how this methodology was actually applied and used in the performance of these Benchmark programs. The focus for these case studies is more on what was done and the benefit gained. Not all of the RASSP methodology and process steps were applied to each of the case studies. The Methodology was tailored to meet the goals and objectives of each development project.

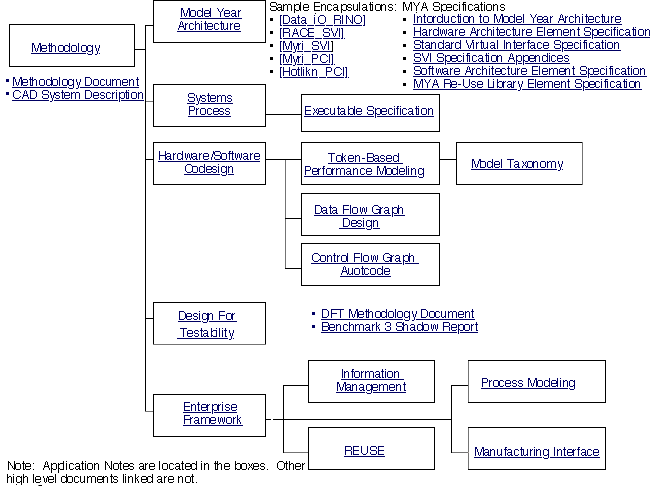

The Application Notes serve to provide specific details of the technologies that were developed and applied within RASSP. Detailed examples were taken from the benchmark programs in order to illustrate not only the how and why it was accomplished but also show the benefits to be gained by applying the RASSP technologies. Figure 2-1 illustrates how each of the application notes are tied to this document. This figure, as well as other links in this document will allow access to the rest of the application notes.

Figure 2 - 1: RASSP Design process.

Each major cycle of the spiral process represents an iteration of a virtual prototype. Within each prototype iteration, pieces of the design can and most likely will be at different levels of maturity, as shown in Figure 4 - 1. Each piece of the design may be represented by a mini-spiral where the spiral cycles correspond to virtual prototypes of the piece. Consequently, for each major spiral cycle, there may be activity in the system, architecture, and detailed design processes.

The overall RASSP development process, shown in Figure 1 - 1, has four major elements:

Project planning/Management - Project planning/management provides the first step of the process: Develop the technical plan, and form the PDT (product development team) and the overall management approach for the specific signal processor development.
Design Process - The design process represents development of the signal processor design from requirements capture through release to manufacturing. Is has three major processes: Systems design, architecture design, and detailed design. This process takes customer requirements and results in a fully verified (functionality and performance) virtual prototype of the signal processor.
- Systems Design Process - This process captures customer requirements and converts these system-level needs into processing requirements (functional and performance). Functional and performance analyses are performed to properly decompose the system-level description. The system process has only a very preliminary notion of either hardware versus software functionality or processor implementation.
- Architecture Design Process - The architecture process transforms processing requirements into a candidate architecture of hardware and software elements. Architecture selection initiates the trade-offs between the different processor architecture alternatives. During this process, the system-level processing requirements are allocated to hardware and/or software functions. The hardware and software functions are verified with each other via 'co-verification" at all steps. The architecture verification process results in a detailed behavioral description of the processor hardware and the definition of the software required for each processor in the system. The intent is to verify all the code during this portion of the design, ensuring hardware/software interoperability early in the design process.
- Detailed Design - As with the prior processes, the design is completed and verified for both hardware and software via a set of detailed functional and performance simulations. When this process is complete, the design is established, resulting in a fully verified virtual prototype of the system.
  During the hardware portion of the detailed design process, behavioral specifications of the processor are transformed into detailed designs (RTL, and/or logic-level) through a combination of hardware partitioning, parts selection, and synthesis. Detailed designs are functionally verified using integrated simulators, and performance/timing is also verified to ensure proper performance. The process results in detailed hardware layouts and artwork, net lists, and test vectors that can then be seamlessly transitioned to manufacturing and test via format conversion of the data.
  Since most of the software developments are verified during the architecture design phase, they are limited at this point to generation of those elements that are target-specific. This includes configuration files, bootstrap and download code, target-specific test codes, etc. All the software is compiled and verified (to the extent possible) on the final virtual prototype prior to the detailed design review. Design release to manufacturing marks the end of the RASSP design process.
Prototype Manufacturing, Integration and Test - The manufacturing, integration and test processes define for RASSP the interface of design engineering to the disciplines required to build and test signal processor prototypes. This means the interaction of manufacturing and test personnel throughout the design cycle to support concurrent engineering through the release of the virtual prototype to manufacturing. This process also supports subsequent testing of the manufactured design and hardware/software integration of the signal processor.
Specialty Engineering ('illities, etc.) - Specialty engineering covers all the non-design engineering tasks required to successfully develop and field RASSP products. These include reliability, maintainability, parts, and EMI engineering (where applicable), as well as integrated logistic support engineering and services.
