Using time cursors in the Wave window

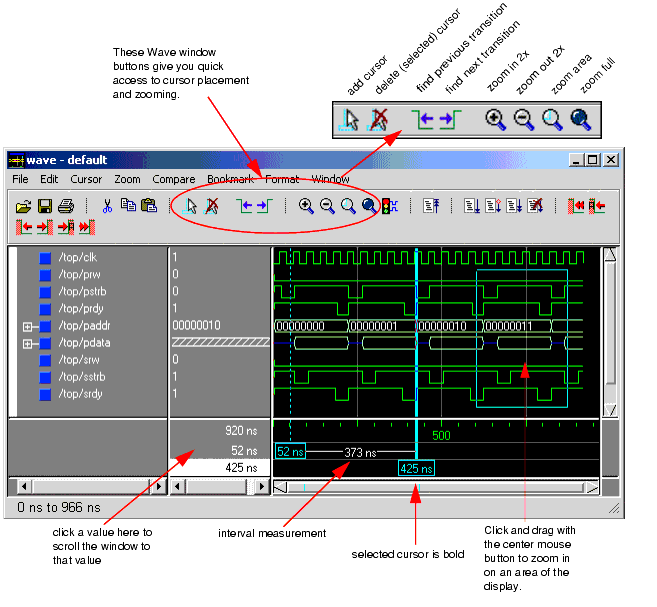

When the Wave window is first drawn, there is one cursor located at time zero. Clicking anywhere in the waveform display brings that cursor to the mouse location. You can add cursors to the waveform pane with the Cursor > Add Cursor menu selection (or the Add Cursor button shown below). The selected cursor is drawn as a bold solid line; all other cursors are drawn with thin dashed lines. Remove cursors by selecting them and selecting Cursor > Delete Cursor (or the Delete Cursor button shown below).

Add Cursor
add a cursor to the center of the waveform window
Delete Cursor
delete the selected cursor from the window
