Cursor panes

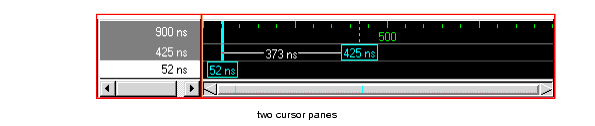

There are two cursor panes. The left pane shows the current simulation time and the value for each cursor. The top-most value is the current simulation time. The selected cursor's value is highlighted. You can select a cursor by selecting its value in the left pane.

The right pane shows the absolute time value for each cursor and relative time between cursors. Up to 20 cursors can be displayed.
