Schematic Diagram and Source for Reference Design(DIGCAM) Version 1.2


Description

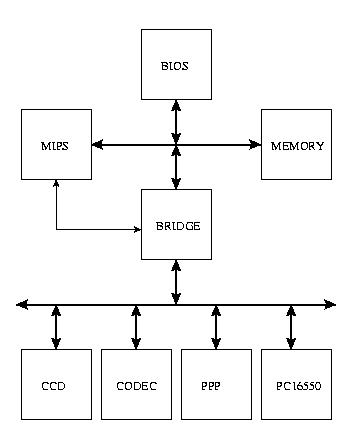

Version 1.2 of the DIGCAM is designed with a two level bus structure. The bus structure is designed as follows:

Main System Bus

Peripheral Bus

In an effort to increase the speed at which the DIGCAM operates, we added a peripheral write buffer to the BRIDGE such that the MIPS would not be blocked while a peripheral write completes. There are three configurations of the bridge with 0, 1, and 2 words write buffers respectively.

Readme briefly describes steps that are needed to follow.

readme.txt

Source Code and Script Files for 32-bit Peripheral Bus

Core source codes and synthesis scripts:

Scripts for analyzing and synthesizing design:

Scripts used for power analysis:

Source Code and Script Files for 8-bit Peripheral Bus

Core source codes and synthesis scripts:

Scripts for analyzing and synthesizing design:

Scripts used for power analysis:
