4.2.4 LPM_OR



Copyright © 1998 University of Manchester


Ports
Port Name
Type
Usage
DescriptionComments
Data
I
Required
Data input Vector, LPM_Size times LPM_Width wide
Result
O
Required
Result of OR operators Vector, LPM_Width wide

Properties
Property
Usage
ValueComments
LPM_Width
Required
LPM Value > 0Width of output vector. Number of OR gates.
LPM_Size
Required
LPM Value > 0Number of inputs to each OR gate. Number of input buses.

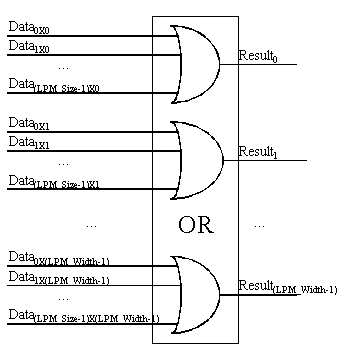

Function

Resulti = Data0Xi | Data1Xi | Data2Xi | … | DataLPM_Size-1Xi

Where i goes from 0 to (LPM_Width - 1).

Example

Suppose the designers have three 8-bit buses and they want to OR the corresponding bits of the three buses. This is done using an LPM_OR with an LPM_Width of 8 and an LPM_Size of three. The LPM_Width of eight indicates that there are eight OR gates, and the LPM_Size of three indicates that each OR gate has three inputs.

This diagram is for illustrative purposes only and is not intended to specify any implementation details.

The function performed by the LPM_OR gate in this case is:

Out[0] = Result0 = Data2X0 | Data1X0 | Data0X0 = A[0] | B[0] | C[0]

Out[1] = Result1 = Data2X1 | Data1X1 | Data0X1 = A[1] | B[1] | C[1]

Out[2] = Result2 = Data2X2 | Data1X2 | Data0X2 = A[2] | B[2] | C[2]

Out[3] = Result3 = Data2X3 | Data1X3 | Data0X3 = A[3] | B[3] | C[3]

Out[4] = Result4 = Data2X4 | Data1X4 | Data0X4 = A[4] | B[4] | C[4]

Out[5] = Result5 = Data2X5 | Data1X5 | Data0X5 = A[5] | B[5] | C[5]

Out[6] = Result6 = Data2X6 | Data1X6 | Data0X6 = A[6] | B[6] | C[6]

Out[7] = Result7 = Data2X7 | Data1X7 | Data0X7 = A[7] | B[7] | C[7]
