thnf311: T-FF W / ACTIVE HIGH ENABLE, Q, & Q_b

• Gate Level Schematic

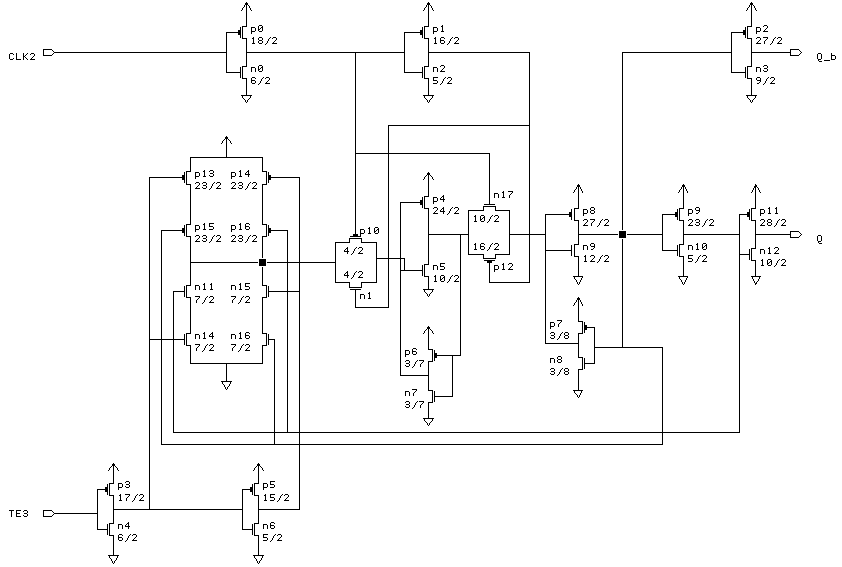

• Transistor Level Schematic
• Layout
• Logic Equation
• Inputs
• Outputs
• Truth Table
• Terminal Location and Capacitance
• Characterization Data

here.

Q_b = Qn'

------------------------------
CLK	TE	Q	Q_b
------------------------------
l2h	1	Qn-1	Qn-1'
h2l	1	Qn-1'	Qn-1
x	0	Qn-1	Qn-1'
------------------------------

--------------------------------------------
Name	X_loc	Y_loc	   Capacitance (fF)
	lambda  lambda   2U	1.2U	0.8U
--------------------------------------------
CLK2	223	16	58.0	27.0	17.3
Q	16	24	-	-	-
Q_b	61	20	-	-	-
TE3	130	18	56.6	27.8	17.4
--------------------------------------------

• Delay Information
• Hold Time Information
• Setup Time Information
