norf211: 2 INPUT OR / NOR


Gate Level Schematic of the standard cell "norf211".

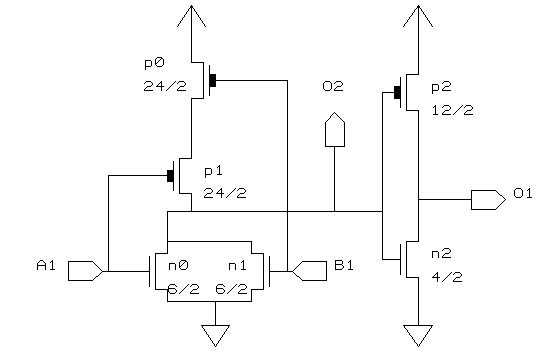

Schematic of the standard cell "norf211" with device sizes in lambda.


Layout of the standard cell "norf211"

here.


Logic Equation: O1 = A1 + B1


Input(s): A1, B1


Output(s): O1, O2


Truth Table

---------------------------
A	B	O1	O2
---------------------------
0	0	0	1
x	1	1	0
1	x	1	0
---------------------------


Terminal Location and Capacitance Table

--------------------------------------------
Name	X_loc	Y_loc	   Capacitance (fF)
	lambda  lambda   2U	1.2U	0.8U
--------------------------------------------
A1	31	20	68.0	34.3	29.2
B1	12	24	79.5	38.3	31.9
O1	56.2	28.15	-	-	-
O2	41.5	30	-	-	-
--------------------------------------------
