32-bit Barrel Shifter Example

A N-bit barrel shifter can shift left or right by N-1 bits. In general, barrel shifter can implement arithematic shifting, logical shifting and rotation functions. The input signals for a N-bit barrel shifter are given as following:

• DIN : Data In (2*N-1 bit)
• SHIFT : Shift Amount (log2(N) bit)
• DOUT : Data out (N bit)

Final Results

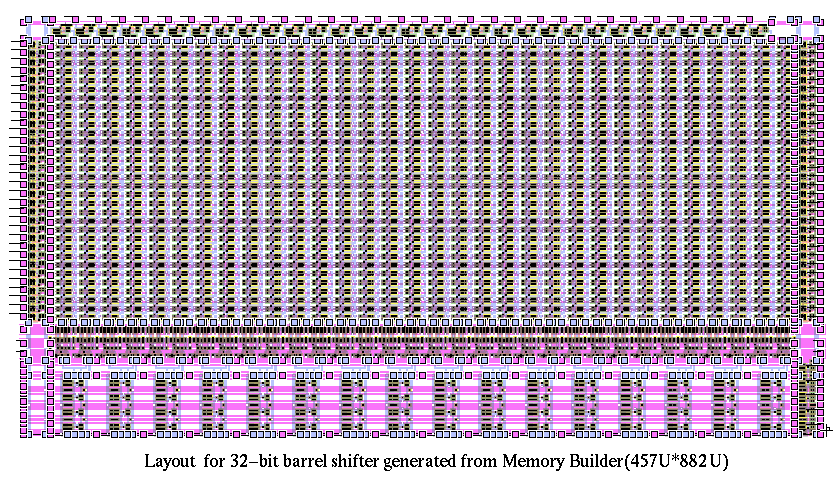

• Layout of the 32-bit barrel shifter generated from Memory Builder.

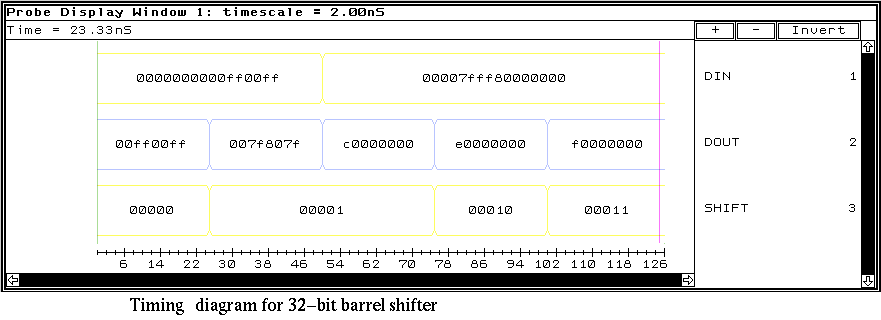

• Lsim simulation result for the 32-bit barrel shifter .

VHDL model for 32-bit barrel shifter

Before you use this model, you need to download utilities & IEEE packages from MPL VHDL Model Collection . This model has been tested successful on Mentor Quick VHDL. You can compile the downloaded VHDL model and simulate it.

Click to download the VHDL model.
