• Synthesis style


• Controller


• Data components

• Data path

• Synthesized example

• Conclusions

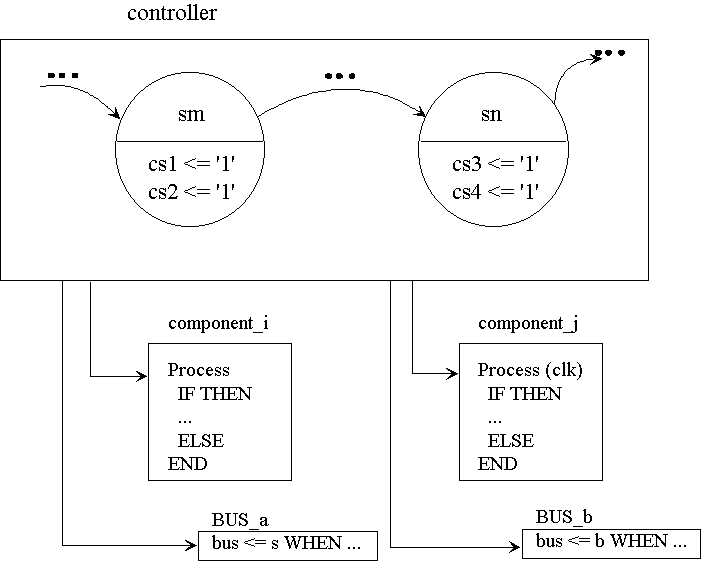

• Controller is a state machine

• Control signals control component behavior

• Bus assignments are done by control signals


Controller
In each state issue control signals. No complex state programs. Specify Bussing.

Data Components
Behavioral Descriptions of components. Clocked and unclocked components.

Bussing
Use conditional signal assignments for bus assignment specification.

• Partition into Data and Control

• Describe Data components and Control unit separately


• Controller style is one of general state machine

• Data components are described and synthesized separately


ARCHITECTURE synthesizable
state declarations
BEGIN
clocking : PROCESS ( clk, ... )
BEGIN
next_state TO present_state transfer
END PROCESS clocking;
--
sequencing : PROCESS ( state present values and inputs )
BEGIN
reset all control signals
setting present values with next
CASE present_state
WHEN state_i =>
control signal assignments
WHEN state_j =>
...
END CASE;
END PROCESS;
END synthesizable;

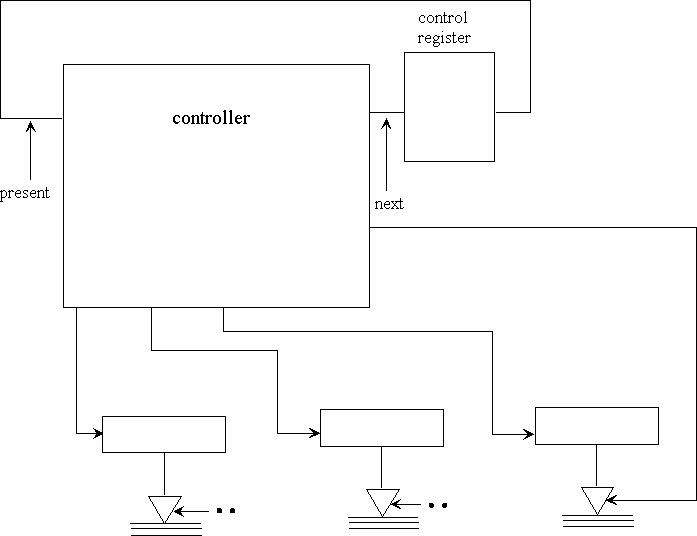

• Declare next and present states

• Perform clocking to load present with next when clocked

• Reset all control signals in sequencing

• In a case statement, conditionally assign '1' to control signals


Clocked components
PROCESS ( clk )
BEGIN
IF ( edge detection)
...
END IF;
END PROCESS

Combinational units
PROCESS ( all inputs )
BEGIN
behavioral description
END PROCESS;

Bussing
bus2 <= bus1 WHEN bus1on2 ELSE "zzzz";

• Use clocked process style for registers including pc, mar, ...

• Use combinational process style for alu and shu

• Wire components using three_state buses


LIBRARY IEEE;
USE IEEE.std_logic_1164.ALL;
--
PACKAGE alu_operations IS
CONSTANT a_and_b : std_logic_vector (2 DOWNTO 0) := "000";
CONSTANT b_compl : std_logic_vector (2 DOWNTO 0) := "001";
CONSTANT a_input : std_logic_vector (2 DOWNTO 0) := "100";
CONSTANT a_add_b : std_logic_vector (2 DOWNTO 0) := "101";
CONSTANT b_input : std_logic_vector (2 DOWNTO 0) := "110";
CONSTANT a_sub_b : std_logic_vector (2 DOWNTO 0) := "111";
END alu_operations;

• Use alu_operations for readability of code

• Compile alu_operations in WORK library


LIBRARY IEEE;
USE IEEE.std_logic_1164.ALL;
--
LIBRARY EXEMPLAR;
USE EXEMPLAR.exemplar_1164.ALL;
--
USE WORK.synthesis_parameters.ALL;
USE WORK.synthesis_utilities.ALL;
USE WORK.alu_operations.ALL;
--
ENTITY par_control_unit IS
PORT (clk : IN std_logic;
-- register control signals:
load_ac, zero_ac,
load_ir,
increment_pc, load_page_pc, load_offset_pc, reset_pc,
load_page_mar, load_offset_mar,
load_sr, cm_carry_sr,
-- bus connection control signals:
pc_on_mar_page_bus, ir_on_mar_page_bus,
pc_on_mar_offset_bus, dbus_on_mar_offset_bus,
pc_offset_on_dbus, obus_on_dbus, databus_on_dbus,
mar_on_adbus,
dbus_on_databus,
-- logic unit function control outputs:
arith_shift_left, arith_shift_right : OUT std_logic;
alu_code : OUT std_logic_vector (2 DOWNTO 0);
-- inputs from the data section:
ir_lines : IN byte;
status : IN nibble;
-- memory control and other external signals:
read_mem, write_mem : OUT std_logic; interrupt : IN std_logic
);
END par_control_unit;

• Controller interface includes all signals for data control

• Type std_logic is used through out


ARCHITECTURE dataflow_synthesizable OF par_control_unit IS
TYPE _states IS (initial, instr_fetch, do_one_bytes, opnd_fetch,
do_indirect, do_two_bytes, do_jsr, continue_jsr,
do_branch);
SIGNAL present_state, next_state : cpu_states;
BEGIN
clocking : PROCESS (clk, interrupt)
BEGIN
IF (interrupt = '1') THEN
present_state <= initial;
ELSIF clk'EVENT AND clk = '0' THEN
present_state <= next_state;
END IF;
END PROCESS clocking;
--

• Synthesizable dataflow architecture

• Declare nine states

• Clocking process assigns present_state


sequencing : PROCESS ( present_state, ir_lines, status, interrupt )
BEGIN
load_ac <= '0'; zero_ac <= '0'; load_ir <= '0'; increment_pc <= '0';
load_page_pc <= '0'; load_offset_pc <= '0'; reset_pc <= '0';
load_page_mar <= '0'; load_offset_mar <= '0';
load_sr <= '0'; cm_carry_sr <= '0';
-- bus connection control signals:
pc_on_mar_page_bus <= '0'; ir_on_mar_page_bus <= '0';
pc_on_mar_offset_bus <= '0'; dbus_on_mar_offset_bus <= '0';
pc_offset_on_dbus <= '0'; obus_on_dbus <= '0'; databus_on_dbus <= '0';
mar_on_adbus <= '0'; dbus_on_databus <= '0';
-- logic unit function control outputs:
arith_shift_left <= '0'; arith_shift_right <= '0';
alu_code <= "000";
-- memory control and other external signals:
read_mem <= '0'; write_mem <= '0';

CASE present_state IS
WHEN initial =>
assign signals
WHEN instr_fetch =>
...
END CASE;
END PROCESS;
END dataflow_synthesizable;

• All control signals are set to '0' at each state

• A case statement handles state transitions


WHEN initial => -------------------------------------------1
IF (interrupt = '1') THEN
reset_pc <= '1';
next_state <= initial;
ELSE
-- pc to mar
pc_on_mar_page_bus <= '1';
pc_on_mar_offset_bus <= '1';
load_page_mar <= '1';
load_offset_mar <= '1';
next_state <= instr_fetch;
END IF;
WHEN instr_fetch => ---------------------------------------2
-- read memory into ir
mar_on_adbus <= '1';
read_mem <= '1';
databus_on_dbus <= '1';
alu_code <= a_input;
load_ir <= '1';
-- increment pc
increment_pc <= '1';
next_state <= do_one_bytes;

• Signals issued for initial and instr_fetch states


WHEN do_one_bytes => --------------------------------------3
pc_on_mar_page_bus <= '1';
pc_on_mar_offset_bus <= '1';
load_page_mar <= '1';
load_offset_mar <= '1';
IF (ir_lines (7 DOWNTO 4) /= single_byte_instructions) THEN
next_state <= opnd_fetch;
ELSE
CASE ir_lines (3 DOWNTO 0) IS
WHEN cla =>
zero_ac <= '1';
load_ac <= '1';
WHEN cma =>
alu_code <= b_compl;
load_sr <= '1';
load_ac <= '1';
WHEN cmc =>
cm_carry_sr <= '1';
WHEN asl =>
alu_code <= b_input;
arith_shift_left <= '1';
load_sr <= '1';
load_ac <= '1';
WHEN asr =>
alu_code <= b_input;
arith_shift_right <= '1';
load_sr <= '1';
load_ac <= '1';
WHEN OTHERS => NULL;
END CASE;
next_state <= instr_fetch;
END IF;

• Control signals activated to execute one_byte instructions


WHEN opnd_fetch => ----------------------------------------4
-- read memory into mar offset
mar_on_adbus <= '1';
read_mem <= '1';
databus_on_dbus <= '1';
dbus_on_mar_offset_bus <= '1';
load_offset_mar <= '1';
IF ( ir_lines (7 DOWNTO 6) /= jsr_or_bra ) THEN
ir_on_mar_page_bus <= '1';
load_page_mar <= '1';
IF ( ir_lines (4) = indirect ) THEN
next_state <= do_indirect;
ELSE
next_state <= do_two_bytes;
END IF;
ELSE --jsr or bra, do not alter mar page
IF ( ir_lines (5) = '0' ) THEN -- jsr
next_state <= do_jsr;
ELSE
next_state <= do_branch;
END IF;
END IF;
increment_pc <= '1';
WHEN do_indirect => ---------------------------------------5
-- read actual operand from memory into mar offset
mar_on_adbus <= '1';
read_mem <= '1';
databus_on_dbus <= '1';
dbus_on_mar_offset_bus <= '1';
load_offset_mar <= '1';
next_state <= do_two_bytes;

• Activated control signals to perform operand fetch and indirecting


WHEN do_two_bytes => --------------------------------------6
IF ( ir_lines (7 DOWNTO 5) = jmp ) THEN
load_page_pc <= '1';
load_offset_pc <= '1';
next_state <= instr_fetch;
ELSIF ( ir_lines (7 DOWNTO 5) = sta ) THEN
-- mar on adbus, ac on databus, write to memory
mar_on_adbus <= '1';
alu_code<= b_input;
obus_on_dbus <= '1';
dbus_on_databus <= '1';
write_mem <= '1';
next_state <= initial;
ELSIF ( ir_lines (7) = '0' ) THEN ------ lda, and, add, sub
-- mar on adbus, read memory for operand, perform operation
mar_on_adbus <= '1';
read_mem <= '1';
databus_on_dbus <= '1';
IF ( ir_lines (6) = '0' ) THEN ---- lda, and
IF ( ir_lines (5) = '0' ) THEN -- lda
alu_code<= a_input;
ELSE -- and
alu_code<= a_and_b;
END IF;
ELSE ---- add, sub
IF ( ir_lines (5) = '0' ) THEN -- add
alu_code<= a_add_b;
ELSE -- sub
alu_code<= a_sub_b;
END IF;
END IF;
load_sr <= '1'; load_ac <= '1'; next_state <= initial; ELSE
next_state <= initial; --never happens
END IF;

• Issue signals to perform two byte instructions


WHEN do_jsr => --------------------------------------------7
-- write pc offset to top of subroutine
mar_on_adbus <= '1';
pc_offset_on_dbus <= '1';
dbus_on_databus <= '1';
write_mem <= '1';
-- address of subroutine to pc
load_offset_pc <= '1';
next_state <= continue_jsr;
WHEN continue_jsr => --------------------------------------8
increment_pc <= '1';
next_state <= initial;
WHEN do_branch => -----------------------------------------9
IF ( all_or (status AND ir_lines (3 DOWNTO 0)) = '1') THEN
load_offset_pc <= '1';
END IF;
next_state <= initial;
END CASE;
END PROCESS;
END dataflow_synthesizable;

• Issue signals to perform jsr and branch

• Use all_or function to imply a logic unit


entity PAR_CTRL is
port ( . . . );
end PAR_CTRL ;

architecture exemplar of PAR_CTRL is
component FD2
port ( CD, CP, D : in std_logic ; Q : inout std_logic ; QN : out std_logic) ;
end component ;
begin
g1087 : AN3 port map ( Z=>vh_91, A=>vh_3, B=>vh_51, C=>vh_25);
g1088 : NR2 port map ( Z=>vh_92, A=>LOAD_IR, B=>vh_91);
g1089 : ND2 port map ( Z=>NEXT_STATE_1, A=>vh_86, B=>vh_92);
g1090 : NR2 port map ( Z=>vh_96, A=>vh_91, B=>PC_OFFSET_ON_DBUS);
g1091 : ND2 port map ( Z=>vh_97, A=>IR_LINES_4, B=>IR_ON_MAR_PAGE_BUS);
g1092 : ND3 port map ( Z=>NEXT_STATE_2, A=>vh_96, B=>vh_97, C=>vh_83);
g1093 : AN3 port map ( Z=>NEXT_STATE_3, A=>vh_3, B=>IR_LINES_5, C=>vh_25);
vh_102 : FD2 port map ( CD=>vh_40, CP=>vh_80, D=>NEXT_STATE_0, Q=>PRESENT_STATE_0, QN=>UPRESENT_STATE_0);
vh_103 : FD2 port map ( CD=>vh_40, CP=>vh_80, D=>NEXT_STATE_1, Q=>PRESENT_STATE_1, QN=>UPRESENT_STATE_1);
vh_104 : FD2 port map ( CD=>vh_40, CP=>vh_80, D=>NEXT_STATE_2, Q=>PRESENT_STATE_2, QN=>UPRESENT_STATE_2);
vh_105 : FD2 port map ( CD=>vh_40, CP=>vh_80, D=>NEXT_STATE_3, Q=>PRESENT_STATE_3, QN=>OPEN);
end exemplar ;

• Partial VHDL netlist generated by synthesizer for controller

• Four state flip-flops implementing binary encoding are used


LIBRARY IEEE; USE IEEE.std_logic_1164.ALL;
--
LIBRARY EXEMPLAR; USE EXEMPLAR.exemplar_1164.ALL;
--
USE WORK.synthesis_parameters.ALL;
USE WORK.synthesis_utilities.ALL;
USE WORK.alu_operations.ALL;
--
ENTITY arithmetic_logic_unit IS
PORT (a_side, b_side : IN byte; code : IN std_logic_vector (2 DOWNTO 0);
in_flags : IN nibble; z_out : OUT byte; out_flags : OUT nibble);
END arithmetic_logic_unit;
--
ARCHITECTURE synthesizable_behavioral OF arithmetic_logic_unit IS
BEGIN
coding: PROCESS (a_side, b_side, code, in_flags)
VARIABLE t : std_logic_vector (9 DOWNTO 0);
VARIABLE v, c, z, n : std_logic; --in_flags 3210
BEGIN
CASE code IS
WHEN a_add_b | a_sub_b =>
t := addsub_cv (b_side, a_side, in_flags(2), code(1));
c := t(8); v := t(9); -- other flags are set at the end
WHEN a_and_b =>
t := "00" & ( a_side AND b_side ); c := in_flags(2); v := in_flags(3);
WHEN a_input =>
t := "00" & a_side; c := in_flags(2); v := in_flags(3);
WHEN b_input =>
t := "00" & b_side; c := in_flags(2); v := in_flags(3);
WHEN b_compl => t := "00" & ( NOT b_side );
c := in_flags(2); v := in_flags(3);
WHEN OTHERS => t := "0000000000"; c:= '0'; v := '0';
END CASE;
n := t(7); z := NOT all_or (t); z_out <= t (7 DOWNTO 0);
out_flags <= v & c & z & n;
END PROCESS coding;
END synthesizable_behavioral;

• alu synthesizable description

• Avoid latching by assigning values to variables

• An example of combinational circuit synthesis


LIBRARY IEEE; USE IEEE.std_logic_1164.ALL;
--
LIBRARY EXEMPLAR; USE EXEMPLAR.exemplar_1164.ALL;
--
USE WORK.synthesis_parameters.ALL;
USE WORK.synthesis_utilities.ALL;
--
ENTITY shifter_unit IS
PORT (alu_side : IN byte; arith_shift_left, arith_shift_right : IN std_logic;
in_flags : IN nibble; obus_side : OUT byte; out_flags : OUT nibble);
END shifter_unit;
--
ARCHITECTURE synthesizable_behavioral OF shifter_unit IS
BEGIN
coding: PROCESS (alu_side, arith_shift_left, arith_shift_right, in_flags)
VARIABLE t : std_logic_vector (7 DOWNTO 0);
VARIABLE v, c, z, n : std_logic; --in_flags 3210
BEGIN
IF arith_shift_left = '1' THEN
t := alu_side (6 DOWNTO 0) & '0'; n := t (7); z := NOT all_or (t);
c := alu_side (7); v := alu_side (6) XOR alu_side (7);
ELSIF arith_shift_right = '1' THEN
t := alu_side (7) & alu_side (7 DOWNTO 1);
n := t (7); z := NOT all_or (t); c := in_flags(2); v := in_flags(3);
ELSE -- none are '1'
t := alu_side (7 DOWNTO 0);
n := in_flags(0); z := in_flags(1); c := in_flags(2); v := in_flags(3);
END IF;
obus_side <= t; out_flags <= v & c & z & n;
END PROCESS coding;
END synthesizable_behavioral;

• shu synthesizable description

• Single combinational process

• Avoid latching by assigning values to variable under all conditions


LIBRARY IEEE;
USE IEEE.std_logic_1164.ALL;
--
LIBRARY EXEMPLAR;
USE EXEMPLAR.exemplar_1164.ALL;
--
USE WORK.synthesis_parameters.ALL;
USE WORK.synthesis_utilities.ALL;
--
ENTITY accumulator_unit IS
PORT (i8 : IN byte; o8 : OUT byte; load, zero, ck : IN std_logic);
END accumulator_unit;
--
ARCHITECTURE synthesizable_behavioral OF accumulator_unit IS
BEGIN
PROCESS (ck)
BEGIN
IF (ck'EVENT AND ck = '0') THEN
IF load = '1' THEN
IF zero = '1' THEN
o8 <= "00000000";
ELSE
o8 <= i8;
END IF;
END IF;
END IF;
END PROCESS;
END synthesizable_behavioral;

• Synthesizable behavioral description for ac

• On clock load or zero accumulator

• ck in the sensitivity and (ck'EVENT AND ck='0' ) are required for synthesis


LIBRARY IEEE;
USE IEEE.std_logic_1164.ALL;
--
LIBRARY EXEMPLAR;
USE EXEMPLAR.exemplar_1164.ALL;
--
USE WORK.synthesis_parameters.ALL;
USE WORK.synthesis_utilities.ALL;
--
ENTITY instruction_register_unit IS
PORT (i8 : IN byte; o8 : OUT byte; load, ck : IN std_logic);
END instruction_register_unit;
--
ARCHITECTURE synthesizable_behavioral OF instruction_register_unit IS
BEGIN
PROCESS (ck)
BEGIN
IF (ck'EVENT AND ck = '0') THEN
IF load = '1' THEN
o8 <= i8;
END IF;
END IF;
END PROCESS;
END synthesizable_behavioral;

• Synthesizable ir uses same style as ac


LIBRARY IEEE;
USE IEEE.std_logic_1164.ALL;
--
LIBRARY EXEMPLAR;
USE EXEMPLAR.exemplar_1164.ALL;
--
USE WORK.synthesis_parameters.ALL;
USE WORK.synthesis_utilities.ALL;
--
ENTITY status_register_unit IS
PORT (in_flags : IN nibble; out_status : OUT nibble;
load, cm_carry, ck : IN std_logic );
END status_register_unit;
--
ARCHITECTURE synthesizable_behavioral OF status_register_unit IS
SIGNAL status : nibble := "0000";
BEGIN
clocking: PROCESS (ck)
BEGIN
IF ( ck'EVENT AND ck = '0') THEN
IF (load = '1') THEN status <= in_flags;
ELSIF (cm_carry = '1') THEN status (2) <= NOT status (2); --c flag
END IF;
END IF;
END PROCESS;
assigning: PROCESS (status)
BEGIN
out_status <= status;
END PROCESS;
END synthesizable_behavioral;

• Synthesizable sr uses two processes

• First process is clocked and generates status register

• Assigning process is combinational and assigns status to output


LIBRARY IEEE; USE IEEE.std_logic_1164.ALL;
--
LIBRARY EXEMPLAR;
USE EXEMPLAR.exemplar_1164.ALL; USE EXEMPLAR.exemplar.ALL;
--
USE WORK.synthesis_parameters.ALL; USE WORK.synthesis_utilities.ALL;
--
ENTITY program_counter_unit IS
PORT (i12 : IN twelve; o12 : OUT twelve;
increment, load_page, load_offset, reset, ck : IN std_logic);
END program_counter_unit;
--
ARCHITECTURE synthesizable_behavioral OF program_counter_unit IS
SIGNAL count : twelve := zero_12;
BEGIN
clocking : PROCESS (ck)
BEGIN
IF ( ck'EVENT AND ck = '0' ) THEN
IF reset = '1' THEN count <= zero_12;
ELSIF increment = '1' THEN count <= count + "01";
ELSE IF load_page = '1' THEN
count (11 DOWNTO 8) <= i12 (11 DOWNTO 8);
END IF;
IF load_offset = '1' THEN count (7 DOWNTO 0) <= i12 (7 DOWNTO 0);
END IF;
END IF;
END IF;
END PROCESS;
outputting: PROCESS (count)
BEGIN --using o12 in clocking, would imply registered o12
o12 <= count;
END PROCESS;
END synthesizable_behavioral;

• Synthesizable pc uses the general clocked process

• The single clock checking IF statement resets, increments or loads pc

• Use the overloaded + for adding

• Outputting process is combinational


LIBRARY IEEE;
USE IEEE.std_logic_1164.ALL;
--
LIBRARY EXEMPLAR;
USE EXEMPLAR.exemplar_1164.ALL;
--
USE WORK.synthesis_parameters.ALL;
USE WORK.synthesis_utilities.ALL;
--
ENTITY memory_address_register_unit IS
PORT (i12 : IN twelve; o12 : OUT twelve;
load_page, load_offset, ck : IN std_logic);
END memory_address_register_unit;
--
ARCHITECTURE synthesizable_behavioral OF memory_address_register_unit IS
BEGIN
PROCESS (ck)
BEGIN
IF ( ck'EVENT AND ck = '0' ) THEN
IF load_page = '1' THEN
o12 (11 DOWNTO 8) <= i12 (11 DOWNTO 8);
END IF;
IF load_offset = '1' THEN
o12 (7 DOWNTO 0) <= i12 (7 DOWNTO 0);
END IF;
END IF;
END PROCESS;
END synthesizable_behavioral;

• A simple clocked process is used for synthesizable mar

• Two separate load inputs are synthesized


LIBRARY IEEE;
USE IEEE.std_logic_1164.ALL;
--
LIBRARY EXEMPLAR;
USE EXEMPLAR.exemplar_1164.ALL;
--
USE WORK.synthesis_parameters.ALL;
USE WORK.synthesis_utilities.ALL;
--
ENTITY par_data_path IS
PORT (databus : INOUT byte := "ZZZZZZZZ"; adbus : OUT twelve;
clk : IN std_logic;
-- register controls:
load_ac, zero_ac,
load_ir,
increment_pc, load_page_pc, load_offset_pc, reset_pc,
load_page_mar, load_offset_mar,
load_sr, cm_carry_sr,
-- bus connections:
pc_on_mar_page_bus, ir_on_mar_page_bus,
pc_on_mar_offset_bus, dbus_on_mar_offset_bus,
pc_offset_on_dbus, obus_on_dbus, databus_on_dbus,
mar_on_adbus,
dbus_on_databus,
-- logic unit function control inputs:
arith_shift_left, arith_shift_right : IN std_logic;
alu_code : IN std_logic_vector (2 DOWNTO 0);
-- outputs to the controller:
ir_lines : OUT byte; status : OUT nibble
);
END par_data_path;
--

• Parwan data path uses signals of control unit

• Use the std_logic logic value system


ARCHITECTURE synthesizable_structural OF par_data_path IS
--
COMPONENT accumulator_unit
PORT (i8: IN byte; o8: OUT byte; load, zero, ck: IN std_logic);
END COMPONENT;
--
COMPONENT instruction_register_unit
PORT (i8: IN byte; o8: OUT byte; load, . . .);
END COMPONENT;
--
COMPONENT program_counter_unit
PORT (i12 : IN twelve; o12 : OUT twelve; increment, load_page, . . .);
END COMPONENT;
--
COMPONENT memory_address_register_unit
PORT (i12 : IN twelve; o12 : OUT twelve; load_page, . . .);
END COMPONENT;
--
COMPONENT status_register_unit
PORT (in_flags : IN nibble; out_status : OUT nibble; load, cm_carry, . . .);
END COMPONENT;
--
COMPONENT arithmetic_logic_unit
PORT (a_side, b_side : IN byte; code : IN std_logic_vector; . . .);
END COMPONENT;
--
COMPONENT shifter_unit
PORT (alu_side : IN byte; arith_shift_left, . . .);
END COMPONENT;
--
SIGNAL ac_out, ir_out, alu_out, obus : byte;
SIGNAL pc_out, mar_out : twelve; SIGNAL dbus : byte;
SIGNAL alu_flags, shu_flags, sr_out : nibble; SIGNAL mar_bus : twelve;

• Continuing synthesizable data path

• Data path components are declared

• Configuration specification will be ignored by synthesizer


BEGIN
-- bus connections --
--
mar_bus (7 DOWNTO 0)
<= dbus WHEN dbus_on_mar_offset_bus = '1' ELSE "ZZZZZZZZ";
databus <= dbus WHEN dbus_on_databus = '1' ELSE "ZZZZZZZZ";
--
dbus <= obus WHEN obus_on_dbus = '1' ELSE "ZZZZZZZZ";
--
dbus <= databus WHEN databus_on_dbus = '1' ELSE "ZZZZZZZZ";
--
-- connection of logical and register structures --
--
l1: arithmetic_logic_unit PORT MAP (dbus, ac_out, alu_code, sr_out, alu_out, alu_flags);
l2: shifter_unit PORT MAP (alu_out, arith_shift_left, arith_shift_right, alu_flags, obus, shu_flags);

END synthesizable_structural;

• Instantiate components

• Use conditional signal assignments for bussing

• Explicit bussing is specified


BEGIN
-- register connections --
--
r1: accumulator_unit PORT MAP (obus, ac_out, load_ac, zero_ac, clk);
--
r2: instruction_register_unit PORT MAP (obus, ir_out, load_ir, clk);
ir_lines <= ir_out;
mar_bus (11 DOWNTO 8) <= ir_out (3 DOWNTO 0) WHEN ir_on_mar_page_bus = '1' ELSE "ZZZZ";
--
r3: program_counter_unit PORT MAP (mar_out, pc_out, increment_pc, load_page_pc, load_offset_pc, reset_pc, clk);
mar_bus (11 DOWNTO 8) <= pc_out (11 DOWNTO 8) WHEN pc_on_mar_page_bus = '1' ELSE "ZZZZ";
mar_bus (7 DOWNTO 0) <= pc_out (7 DOWNTO 0) WHEN pc_on_mar_offset_bus = '1' ELSE "ZZZZZZZZ";
dbus <= pc_out (7 DOWNTO 0) WHEN pc_offset_on_dbus = '1' ELSE "ZZZZZZZZ";
--
r4: memory_address_register_unit PORT MAP
(mar_bus, mar_out, load_page_mar, load_offset_mar, clk);
adbus <= mar_out WHEN mar_on_adbus = '1' ELSE "ZZZZZZZZZZZZ";
--
r5: status_register_unit PORT MAP (shu_flags, sr_out, load_sr, cm_carry_sr, clk);
status <= sr_out;
END synthesizable_structural;

• Instantiate components

• Register outputs are assigned to buses


library ieee ;
use ieee.std_logic_1164.all ;

entity AC_REG is
port (
I8_7, I8_6, I8_5, I8_4, I8_3, I8_2, I8_1, I8_0, LOAD, ZERO, CK : in
std_logic ;
O8_7, O8_6, O8_5, O8_4, O8_3, O8_2, O8_1, O8_0 : inout std_logic) ;
end AC_REG ;

architecture exemplar of AC_REG is
...
component FD1
port (
CP, D : in std_logic ;
Q : inout std_logic ;
QN : out std_logic) ;
end component ;

begin
g1017 : IVA port map ( Z=>vh_46, A=>vh_45);
g1018 : AO2 port map ( Z=>vh_49, A=>I8_0, B=>vh_19, C=>O8_0, D=>vh_20);
g1019 : IVA port map ( Z=>vh_50, A=>vh_49);
vh_52 : FD1 port map ( CP=>vh_16, D=>vh_22, Q=>O8_7, QN=>OPEN);
vh_59 : FD1 port map ( CP=>vh_16, D=>vh_50, Q=>O8_0, QN=>OPEN);

end exemplar ;

• Synthesized accumulator

• Hardware includes loading logic and eight flip-flops


--
ENTITY par_central_processing_unit IS
PORT (clk : IN std_logic;
interrupt : IN std_logic;
read_mem, write_mem : OUT std_logic;
databus : INOUT byte := "ZZZZZZZZ"; adbus : OUT twelve
);
END par_central_processing_unit;
--
ARCHITECTURE dataflow_synthesizable OF par_central_processing_unit IS
--
COMPONENT par_data_path
PORT (databus : INOUT byte; adbus : OUT twelve;
clk : IN std_logic;
);
END COMPONENT;
FOR data: par_data_path USE ENTITY WORK.par_data_path (structural_synthesizable);
--
COMPONENT par_control_unit
PORT (clk : IN std_logic;
load_ac, zero_ac,
);
END COMPONENT;
FOR ctrl: par_control_unit USE ENTITY WORK.par_control_unit (dataflow_synthesizable);
--
SIGNAL load_ac, zero_ac,
load_ir,
SIGNAL alu_code : std_logic_vector (2 DOWNTO 0);
SIGNAL ir_lines : byte; SIGNAL status : nibble;
BEGIN
data: par_data_path PORT MAP
(databus, adbus,
clk,
load_ac, zero_ac,
);
ctrl: par_control_unit PORT MAP
(clk,
load_ac, zero_ac,
);
END dataflow_synthesizable;

• Wire data and control for the complete systems

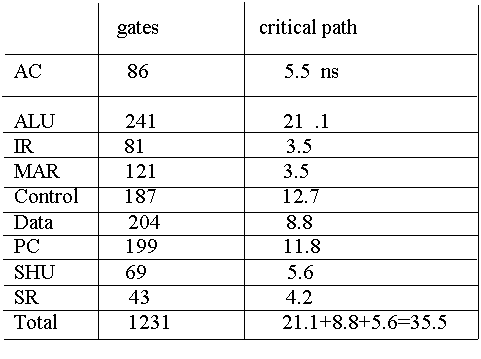

• Each part has been separately synthesized


• This compares with 1309 and cp of 29.6 ns for behavioral synthesis

• Worst case of data does not neccesarily correspond to ALU path

• Designer has more control in dataflow synthesis


1. Outline:

Introduction, Organization, Outline

2. Review: Levels of abstraction, Entity and Architecture, Signal assignments, Guarded signal assignments, Three state bussing, Process statements, Combinational processes, Sequential processes, Multiplexing, Package

3. MSI Based Design: Use MSI parts of Part 2, Sequential multiplication, Designing the multiplier, Control and data parts, Testing the multiplier

4. General CPU Description: Will present a high level VHDL description of a small CPU. The CPU, Memory organization, Instructions, Addressing, Utilities for VHDL description, Interface, Behavioral description, Coding individual instructions

5. Manual Data_path Design: Will present VHDL description for manual design of data_path. Data components, Bussing structure, Description of logic, Description of registers, Bus resolutions, Component wiring

6. Manual Controller Design: Will present VHDL description for manual design of controller. Controller hardware, VHDL style, Signals and resolutions, State descriptions, Complete CPU, Testing CPU

7. Synthesis: Main concepts, Structural synthesis, Combinational circuits, Functional registers, State machines

8. Behavioral_Synthesis: Will present a high level synthesizable CPU description. Synthesis style, Necessary Package, Interface, General Layout, Registers, Clocking, Sequencing, Simulation and Synthesis

9. Dataflow_Synthesis: Will partition the CPU and synthesize each part separately. Synthesis style, Controller, Data components, Data path, Synthesized example, Conclusions
