PART 9

Standards











Standards.MVL9.types

TYPE std_ulogic IS (
'U', -- Uninitialized
'X', -- Forcing Unknown
'0', -- Forcing 0
'1', -- Forcing 1
'Z', -- High Impedance
'W', -- Weak Unknown
'L', -- Weak 0
'H', -- Weak 1
'-' -- Don't care
);

TYPE std_ulogic_vector IS
ARRAY ( NATURAL RANGE <> ) OF std_ulogic;

FUNCTION resolved ( s : std_ulogic_vector ) RETURN std_ulogic;

SUBTYPE std_logic IS resolved std_ulogic;

TYPE std_logic_vector IS
ARRAY ( NATURAL RANGE <>) OF std_logic;











Standards.MVL9.subsets



SUBTYPE X01
IS resolved std_ulogic RANGE 'X' TO '1'; -- ('X','0','1')

SUBTYPE X01Z
IS resolved std_ulogic RANGE 'X' TO 'Z'; -- ('X','0','1','Z')

SUBTYPE UX01
IS resolved std_ulogic RANGE 'U' TO '1'; -- ('U','X','0','1')

SUBTYPE UX01Z
IS resolved std_ulogic RANGE 'U' TO 'Z'; -- ('U','X','0','1','Z')











Standards.MVL9.overloading



FUNCTION "and" ( l : std_ulogic; r : std_ulogic ) RETURN UX01;
FUNCTION "nand" ( l : std_ulogic; r : std_ulogic ) RETURN UX01;
FUNCTION "or" ( l : std_ulogic; r : std_ulogic ) RETURN UX01;
FUNCTION "nor" ( l : std_ulogic; r : std_ulogic ) RETURN UX01;
FUNCTION "xor" ( l : std_ulogic; r : std_ulogic ) RETURN UX01;
FUNCTION "not" ( l : std_ulogic ) RETURN UX01;

FUNCTION "and" ( l, r : std_logic_vector ) RETURN std_logic_vector;
FUNCTION "and" ( l, r : std_ulogic_vector ) RETURN std_ulogic_vector;

FUNCTION "nand" ( l, r : std_logic_vector ) RETURN std_logic_vector;
FUNCTION "nand" ( l, r : std_ulogic_vector ) RETURN std_ulogic_vector;

FUNCTION "or" ( l, r : std_logic_vector ) RETURN std_logic_vector;
FUNCTION "or" ( l, r : std_ulogic_vector ) RETURN std_ulogic_vector;

FUNCTION "nor" ( l, r : std_logic_vector ) RETURN std_logic_vector;
FUNCTION "nor" ( l, r : std_ulogic_vector ) RETURN std_ulogic_vector;

FUNCTION "xor" ( l, r : std_logic_vector ) RETURN std_logic_vector;
FUNCTION "xor" ( l, r : std_ulogic_vector ) RETURN std_ulogic_vector;

  • Overloading logical operators
  • Vectorized operators are overloaded
  • Vectorized operators are for resolved and unresolved types










Standards.MVL9.conversions



FUNCTION To_bit ( s : std_ulogic; xmap : BIT := '0') RETURN BIT;
FUNCTION To_bitvector( s: std_logic_vector; xmap: BIT := '0') RETURN BIT_VECTOR;
FUNCTION To_bitvector( s: std_ulogic_vector; xmap: BIT := '0') RETURN BIT_VECTOR;

FUNCTION To_StdULogic ( b : BIT ) RETURN std_ulogic;
FUNCTION To_StdLogicVector ( b : BIT_VECTOR ) RETURN std_logic_vector;
FUNCTION To_StdLogicVector ( s : std_ulogic_vector ) RETURN std_logic_vector;
FUNCTION To_StdULogicVector ( b : BIT_VECTOR ) RETURN std_ulogic_vector;
FUNCTION To_StdULogicVector ( s : std_logic_vector ) RETURN std_ulogic_vector;

FUNCTION To_X01 ( s : std_logic_vector ) RETURN std_logic_vector;
FUNCTION To_X01 ( s : std_ulogic_vector ) RETURN std_ulogic_vector;
FUNCTION To_X01 ( s : std_ulogic ) RETURN X01;
FUNCTION To_X01 ( b : BIT_VECTOR ) RETURN std_logic_vector;
FUNCTION To_X01 ( b : BIT_VECTOR ) RETURN std_ulogic_vector;
FUNCTION To_X01 ( b : BIT ) RETURN X01;

FUNCTION To_X01Z ( s : std_logic_vector ) RETURN std_logic_vector;
FUNCTION To_X01Z ( s : std_ulogic_vector ) RETURN std_ulogic_vector;
FUNCTION To_X01Z ( s : std_ulogic ) RETURN X01Z;
FUNCTION To_X01Z ( b : BIT_VECTOR ) RETURN std_logic_vector;
FUNCTION To_X01Z ( b : BIT_VECTOR ) RETURN std_ulogic_vector;
FUNCTION To_X01Z ( b : BIT ) RETURN X01Z;

FUNCTION To_UX01 ( s : std_logic_vector ) RETURN std_logic_vector;
FUNCTION To_UX01 ( s : std_ulogic_vector ) RETURN std_ulogic_vector;
FUNCTION To_UX01 ( s : std_ulogic ) RETURN UX01;
FUNCTION To_UX01 ( b : BIT_VECTOR ) RETURN std_logic_vector;
FUNCTION To_UX01 ( b : BIT_VECTOR ) RETURN std_ulogic_vector;
FUNCTION To_UX01 ( b : BIT ) RETURN UX01;

  • Conversion functions for common logic value systems
  • Conversion to systems without strength
  • Vectorized conversion functions are included










Standards.MVL9.miscellaneous



-- Edge detection
FUNCTION rising_edge (SIGNAL s : std_ulogic) RETURN BOOLEAN;
FUNCTION falling_edge (SIGNAL s : std_ulogic) RETURN BOOLEAN;

-- Checking for unknown
FUNCTION Is_X ( s : std_ulogic_vector ) RETURN BOOLEAN;
FUNCTION Is_X ( s : std_logic_vector ) RETURN BOOLEAN;
FUNCTION Is_X ( s : std_ulogic ) RETURN BOOLEAN;

  • Functions for edge detection
  • Functions for unknown check
  • Checking for 'X' in scalar, vectorized, and resolved










Standards.VHDL'93.shift_and_rotate



SLL: Shift Left Logical Use fill_value
SRL: Shift Right Logical Use fill_value
SLA: Shift Left Arithmetic
SRL: Shift Right Arithmetic
ROL: Rotate Left
ROL: Rotate Right

a_vector SLL 3

  • Use 'LEFT of element of ARRAY for fill_value
  • SHIFT Logical:
Shift right (left) use fill_value on left (right)
Shift right (left) ignore right (left) most value
  • SHIFT Arithmetic:
Shift right (left) use left (right) most on left (right)
Shift right (left) ignore right (left) most value
  • ROTATE
Rotate right (left) use right (left) most on left (right)

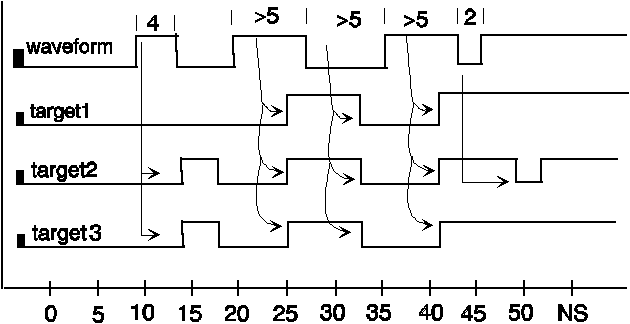

Standards.VHDL'93.inertial_reject



NEW DELAY MODELING

ARCHITECTURE delay OF example IS
SIGNAL target1, target2, target3, waveform : BIT;
BEGIN
-- the following illustrates inertial delay
target1 <= waveform AFTER 5 NS;
-- the following illustrates transport delay
target2 <= TRANSPORT waveform AFTER 5 NS;
-- the following illustrates reject
target3 <= REJECT 3 NS INERTIAL waveform AFTER 5 NS;
END delay;

  • TRANSPORT tt does not reject any pulse
  • INERTIAL ti rejects all pulses less than ti time expression
  • REJECT tr INERTIAL ti rejects all pulses less than tr











Standards.VHDL'93.direct_instantiation



Component Binding in VHDL'87:

Component Declaration + Configuration Specification
or
Component Declaration + Component Configuration

Configuration may be eliminated for default

VHDL'93 allows Component instantiation without need for:

Component Declaration and Binding Specification

Component Instantiation will be used as default

ARCHITECTURE . . .
. . .
BEGIN
. . .
c1: ENTITY library_name.and2 (single_delay)
GENERIC MAP ( . . .) PORT MAP ( . . .);
. . .
END . . .

  • Direct instantiation of a component matches its interface
  • No need for Declaration and/or Binding of Component










Standards.VHDL'93.incremental_binding



ARCHITECTURE flexible OF nibble_comparator IS
COMPONENT comp1
PORT (a, b, gt, eq, lt : IN BIT; a_gt_b, a_eq_b, a_lt_b : OUT BIT);
END COMPONENT;
FOR ALL:comp1 USE ENTITY WORK.bit_comparator_t passed_delay);
SIGNAL im : BIT_VECTOR ( 0 TO 8 );
BEGIN
c0: comp1 PORT MAP ( . . . );
c1to2 : FOR i IN 1 TO 2 GENERATE c: comp1 PORT MAP ( . . . );
END GENERATE;
c3: comp1 PORT MAP ( . . . );
END flexible;

USE WORK.ALL;
CONFIGURATION passed_bit_level OF nibble_comparator_test_bench IS
FOR customizable
FOR a1 : comp4 USE ENTITY WORK.nibble_comparator(flexible);
FOR flexible
FOR c0, c3: comp1
GENERIC MAP (tplh1 => 2 NS, tplh2 => 3 NS,
tplh3 => 4 NS, tphl1 => 4 NS, tphl2 => 5 NS, tphl3 => 6 NS);
END FOR;
FOR c1to2
FOR c: comp1
GENERIC MAP (tplh1 => 2 NS, tplh2 => 3 NS,
tplh3 => 4 NS, tphl1 => 4 NS, tphl2 => 5 NS, tphl3 => 6 NS);
END FOR;
END FOR;
END FOR;
END FOR;
END FOR;
END passed_bit_level;

  • Can split binding between:
Configuration Specification and Component Configuration
  • If Configuration Specification is used, entity aspect is needed










Standards.VHDL'93.attributes_1



'ASCENDING
'IMAGE
'VALUE

TYPE state IS (reset, got1, got10, got101);
TYPE state_vector IS ARRAY (NATURAL RANGE <>) OF state;
--
FUNCTION one_of (sources : state_vector) RETURN state IS
USE STD.TEXTIO.ALL;
VARIABLE l : LINE;
FILE flush : TEXT OPEN WRITE_MODE IS "/dev/tty";
BEGIN
FOR i IN sources'RANGE LOOP
-- CASE sources(i) IS -- state_string is a STRING VARIABLE
-- WHEN reset => state_string := "reset ";
-- WHEN got1 => state_string := "got1 ";
-- WHEN got10 => state_string := "got10 ";
-- WHEN got101 => state_string := "got101 ";
-- END CASE;
WRITE (l, state'IMAGE (sources(i)), LEFT, 7);
END LOOP;
WRITELINE (flush, l);
RETURN sources (sources'LEFT);
END one_of;

  • 'ASCENDING returns TRUE if array is ascending
  • 'IMAGE generates string of any type
a_type'IMAGE (value_having_a_type)
  • 'VALUE generates type value from string
a_type 'VALUE (a_string_valid_in_a_type)
  • In the example, use of 'IMAGE eliminates need for CASE










Standards.VHDL'93.attributes_2



'SIMPLE_NAME
'PATH_NAME
'INSTANCE_NAME

USE WORK.ALL;
CONFIGURATION average_delay OF nibble_comparator_test_bench IS
FOR customizable
FOR a1 : comp4
USE ENTITY WORK.nibble_comparator(iterative);
END FOR;
END FOR;
END average_delay;

In bit_comparator(fixed_delay) a'PATH_NAME IS

a1: c1TO2: c(2)

In bit_comparator(fixed_delay) a'INSTANCE_NAME
contains all library, configurations, entities and architectures

  • 'SIMPLE_NAME returns string of a name
  • 'PATH_NAME is a complete list of labels in path of a name
  • 'INSTANCE_NAME is a complete list of labels, libraries and configurations in path of a name










Standards.VHDL'93.groups



PACKAGE utility_attributes IS
TYPE timing IS RECORD
rise, fall : TIME;
END RECORD;
ATTRIBUTE delay : timing;
ATTRIBUTE sub_dir : STRING;
GROUP delayed_signals IS (SIGNAL <>); -- GROUP Template
END utility_attributes;
--
USE WORK.utility_attributes.ALL;
-- FROM PACKAGE USE: delay, sub_dir
ENTITY brief_d_flip_flop IS
PORT (d, c : IN BIT; q : OUT BIT);
GROUP io_signals : delayed_signals (d, c, q); -- GROUP Declaration
ATTRIBUTE sub_dir OF brief_d_flip_flop : ENTITY IS "/user/vhdl";
ATTRIBUTE delay OF io_signals : GROUP IS (8 NS, 10 NS);
END brief_d_flip_flop;
--
ARCHITECTURE attributed_falling_edge OF brief_d_flip_flop IS
SIGNAL tmp : BIT;
BEGIN
tmp <= d WHEN ( c = '0' AND NOT c' STABLE ) ELSE tmp;
q <= '1' AFTER q'delay.rise WHEN tmp = '1' ELSE '0' AFTER q'delay.fall;
END attributed_falling_edge;

Can use: c'delay.rise, c'delay.fall, r'delay.rise, r'delay.fall

  • Group template declaration specifies entity classes in a group
  • Use <> for any number of a specific entity class in a group
  • Group declaration specifies members of a specific group










Standards.VHDL'93.unaffected_assignment



For Selected Signal Assignment:
... UNAFFECTED WHEN OTHERS

For Conditional Signal Assignment:
... ELSE UNAFFECTED

ENTITY d_flipflop IS
GENERIC (delay1 : TIME := 4 NS; delay2 : TIME := 5 NS);
PORT (d, c : IN BIT; q : OUT BIT);
END d_flipflop;
--
ARCHITECTURE with_internal OF d_flipflop IS
SIGNAL internal_q : BIT;
BEGIN
internal_q <= d WHEN ( c = '1' AND NOT c'STABLE ) ELSE internal_q;
q <= internal_q AFTER delay1;
END with_internal;

ARCHITECTURE simpler OF d_flipflop IS
BEGIN
q <= d WHEN ( c = '1' AND NOT c'STABLE ) ELSE UNAFFECTED;
END simpler;

  • The with_internal requires internal_q since q cannot be used on the right hand side
  • The simpler Architecture does not use q output on the right hand side










Standards.VHDL'93.driving



'DRIVING returns BOOLEAN; TRUE if signal is being driven
'DRIVING_VALUE returns the driving value

ENTITY simple_t_flip_flop IS
GENERIC (tq_delay : TIME := 6.3 NS);
PORT (t : IN BIT; q : OUT BIT);
END simple_t_flip_flop;
--
ARCHITECTURE toggle OF simple_t_flip_flop IS
BEGIN
tff: PROCESS (t)
BEGIN
IF t = '0' THEN
q <= q'DRIVING_VALUE AFTER tq_delay;
END IF;
END PROCESS tff;
END toggle;

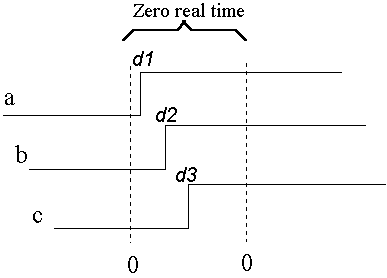

  • Avoid extra delta delay by using value of q
  • Avoid the use of internal_state variable or signal
  • Returns locally contributed value and not resolved value










Standards.VHDL'93.file_io



File type definition:

TYPE logic_data IS FILE OF CHARACTER;

Options in using a defined file:

FILE input_logic_value_file : logic_data;
-- This option leaves file opening for a FILE_OPEN procedure

FILE input_logic_value_file : logic_data
OPEN READ_MODE IS "data.file"
-- This option includes an implicit call to FILE_OPEN
-- Can use READ_MODE, WRITE_MODE, or APPEND_MODE

If file declaration does not include open information:

FILE_OPEN ( FILE input_logic_value_file : logic_data;
"data.file";
READ_MODE );

FILE_OPEN ( ok_or_not : OUT FILE_OPEN_STATUS;
FILE input_logic_value_file : logic_data;
"data.file";
READ_MODE );

To close an open file:

FILE_CLOSE ( input_logic_value_file );

  • Files can be opened by FILE_OPEN instead of by declaration










Standards.VHDL'93.file_io



TYPE logic_data IS FILE OF CHARACTER;
FILE input_logic_value_file : logic_data; -- File is declared but not opened

-- File Type logic_data is Visible
PROCEDURE assign_bits (
SIGNAL target : OUT BIT; FILE in_file : IN logic_data; period : IN TIME)
IS
VARIABLE char : CHARACTER;
VARIABLE current : TIME := 0 NS;
VARIABLE ok_or_not : FILE_OPEN_STATUS;
BEGIN
FILE_OPEN ( ok_or_not; in_file; "data.file"; READ_MODE);
IF ok_or_not = OPEN_OK THEN
WHILE NOT ENDFILE (input_value_file) LOOP
READ (input_value_file, char);
IF char = '0' OR char = '1' THEN
current := current + period;
IF char = '0' THEN
target <= TRANSPORT '0' AFTER current;
ELSIF char = '1' THEN
target <= TRANSPORT '1' AFTER current;
END IF;
END IF;
END LOOP;
END IF;
END assign_bits;

Calling the above procedure:
assign_bits (a_signal, input_logic_value_file, 1500NS)

  • File declaration in '87 had an implicit open
  • File declaration can now postpone opening for FILE_OPEN
  • Modes: READ_MODE WRITE_MODE APPEND_MODE










Standards.VHDL'93.report_statement



ASSERT make_sure_that REPORT violation SEVERITY some_action;

REPORT always_reports_some_conditions SEVERITY some_action;

ASSERT FALSE REPORT always_reports SEVERITY some_action;

  • Can use IF_THEN_ELSE for REPORT
  • Same as ASSERT FALSE
  • Less overhead than ASSERT
  • Use REPORT for debugging, reporting events, etc










Standards.VHDL'93.postponed



PROCESS (a, b, c) POSTPONED PROCESS (a, b, c)
BEGIN BEGIN
. .
. .
. .
END PROCESS; END PROCESS;

  • A PROCESS statement (left) is activated each time a, b, or c change
  • A POSTPONED PROCESS (right) is activated after the last delta in a real time interval
  • No zero delay assignments are allowed in a POSTPONED PROCESS











Standards.VHDL'93.other_changes



  • Removal of 'BEHAVIORAL & 'STRUCTURE

  • 'FOREIGN

  • IMPURE Functions

  • Using expressions for port association

  • Extended CHARACTER set

  • NXOR operator

  • Consistent construct bracketing
ARCHITECTURE xyz OF an_entity IS
. . .
END xyz ARCHITECTURE;

  • SIGNATURE










Standards.conclusions

1. Outline: Introduction, Organization, Outline

2. Review:Behavioral description, Using process statements, Top-down design, Using available components, Wiring predefined components, Wiring from bottom to top, Generation of testbench data, Using procedures

3. VHDL_Timing: Modeling requirements, Objects & classes, Signals & variables, Concurrent & sequential assignments, Events, transactions & delta delays, Delay modeling, Sequential placement of transactions, Conventions

4. Structural_Description_of_Hardware: Wiring parts into larger designs, Start with primitives, Wire gates into general purpose components, Use iterative constructs, Generate testbenches, Show binding alternatives, Use gate-based components for a larger design

5. Design_Organization: Subprograms, Packaging, Parameter specification, Parametrization, Top level configuration, Design libraries, A complete example

6. Utilities_for_high_level_descriptions: Language aspects, Types, Over loading subprograms operators, Predefined Attributes, User defined attributes

7. Dataflow: Constructs for dataflow descriptions, Multiplexing and clocking, Multiple assignments, State machines, Open collector gates, A complete dataflow example, Load dependent timing

8. Behavioral_Descriptions: Constructs for sequential descriptions, Assertion for behavioral checks, Handshaking constructs, Timing control, Formatted I/O, MSI parts, A complete MSI based design

9. STANDARDS: MVL9: logic value system, Logic type, Operators, Conversions; VHDL'93: Operators, Delay model, Instantiation, Binding, Attributes, Signal assignments, Report, Postponed process





to the top of the Document
