• Constructs for sequential descriptions

• Process statement is a key construct

• Assertion for behavioral checks

• Handshaking constructs

• Timing control

• Formatted I/O

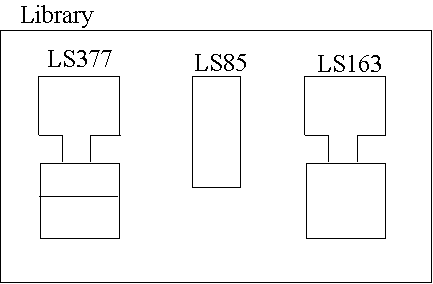

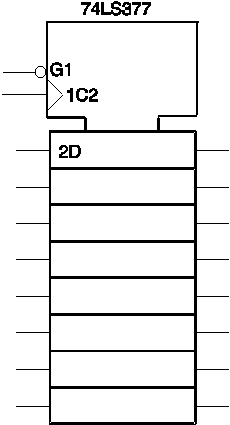

• Several MSI parts will be modeled

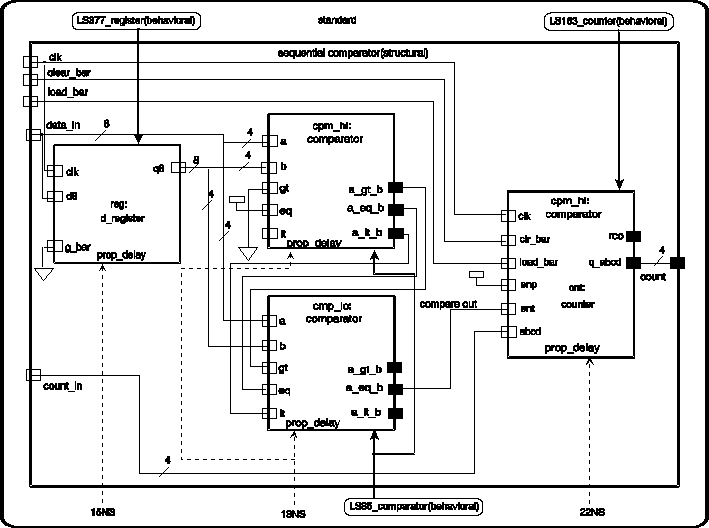

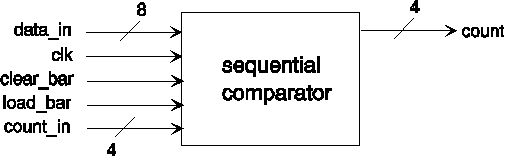

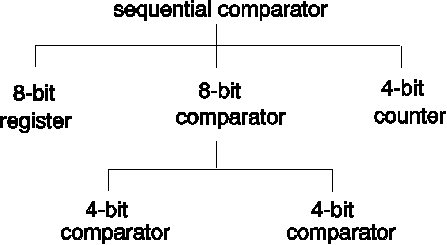

• Will present a complete MSI based design

In General:

• Constructs for I/O mapping

• Without hardware datails

Behavioral.process

PROCESS

. . .

declarative_part

. . .

BEGIN

. . .

sequential_part

. . .

END PROCESS

• PROCESS:

• A concurrent statement, enclosing sequential statements

• Declarative part contains only variables and constants

• Use only sequential constructs

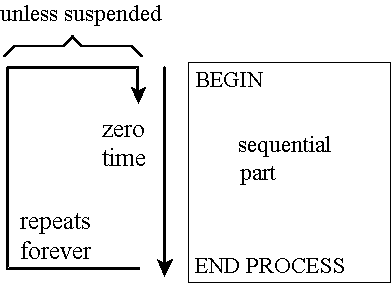

Behavioral.process

• Unless sequential part is suspended

• It executes in zero real and delta time

• It repeats itself forever


---

Behavioral.process

• First: a is scheduled for x

• Next: b is scheduled for y

• x and y receive values at the same time

• Both assignments occur a delta later

• Zero time between both scheduling


Behavioral.process

• First: a is scheduled for x

• Next: b is scheduled for y

• y receives b sooner than x receiving a


Behavioral.process

• Assume x_sig is initially '0'

• Assignment of '1' to x_sig takes a delta

• Action_2 will be taken

• Variable x_var had to be declared inside the Process statement

• If x_var was used instead of x_sig, action_1 would be taken

ARCHITECTURE ... ARCHITECTURE ...

BEGIN BEGIN

... ...

PROCESS (b)

a <= b; a <= b;

... END PROCESS;

... ...

c <= d; c <= d;

... ...

END ... END ...

• Process is a concurrent statement

• Signal assignment is a concurrent statement

• Signal assignment is also a sequential statement

• On the left: events on b cause assignment

• Process is executed when an event occurs on b

• On the right: (b) is sensitivity list of process

• Process statement executes only once for every event on b

• Process suspends till next event on b


Behavioral.process.sensitivity

ENTITY d_sr_flipflop IS

GENERIC (sq_delay, rq_delay, cq_delay : TIME := 6 NS);

PORT (d, set, rst, clk : IN BIT; q, qb : OUT BIT);

END d_sr_flipflop;

--

ARCHITECTURE behavioral OF d_sr_flipflop IS

SIGNAL state : BIT := '0';

BEGIN

dff: PROCESS (rst, set, clk)

BEGIN

IF set = '1' THEN state <= '1' AFTER sq_delay;

ELSIF rst = '1' THEN state <= '0' AFTER rq_delay;

ELSIF clk = '1' AND clk'EVENT THEN state <= d AFTER cq_delay;

END IF;

END PROCESS dff;

q <= state; qb <= NOT state;

END behavioral;

• Three concurrent processes

• dff process is sensitive to (rst, set, clk)

• Internal state receives proper value

• Events on state cause events on q and qb after d


Behavioral.process.sensitivity

ARCHITECTURE average_delay_behavioral OF d_sr_flipflop IS

BEGIN

dff: PROCESS (rst, set, clk)

VARIABLE state : BIT := '0';

BEGIN

IF set = '1' THEN

state := '1';

ELSIF rst = '1' THEN

state := '0';

ELSIF clk = '1' AND clk'EVENT THEN

state := d;

END IF;

q <= state AFTER (sq_delay + rq_delay + cq_delay)/3;

qb <= NOT state AFTER (sq_delay + rq_delay + cq_delay)/3;

END PROCESS dff;

END average_delay_behavioral;

• Single process assigns values to q and qb

• This description eliminates the d delay of the last description

• Less precise timing


Behavioral.process.sensitivity

• Simulation run compares flip-flop descriptions

• The 3 process description has a d delay

• However, potential of more precise timing

Behavioral.process

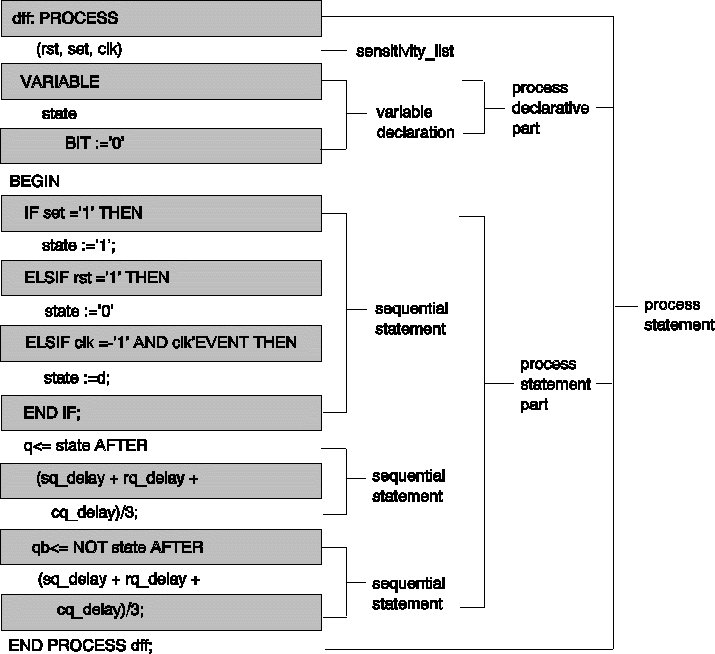

• Syntax details include sensitivity list


Behavioral.flow_constructs

long_running : LOOP

. . .

IF x = 25 THEN EXIT;

END IF;

. . .

END LOOP long_running;

NEXT loop_label WHEN condition;

EXIT WHEN x = 25;

• Loop is a sequential statement

• Example runs forever unless exited

• EXIT & NEXT control flow of loops

• EXIT & NEXT can be conditioned

Behavioral.flow_constructs

loop_1 : FOR i IN 5 TO 25 LOOP

sequential_statement_1;

sequential_statement_2;

loop_2 : WHILE j <= 90 LOOP

sequential_statement_3;

sequential_statement_4;

NEXT loop_1 WHEN condition_1;

sequential_statement_5;

sequential_statement_6;

END LOOP loop_2;

sequential_statement_7;

sequential_statement_8;

END LOOP loop_1;

• FOR, WHILE are controlled forms of loop

• Can still use NEXT and EXIT

• The above NEXT statement causes looping to continue with statements 1


Behavioral.assertion

ASSERT assertion_condition REPORT

"reporting_message" SEVERITY

severity_level;

Make sure that assertion_condition is true

Otherwise report "reporting message" then

Take the severity_level action

• Use assert to flag violations

• Use assert to report events

• Can be sequential or concurrent

• Severity: FAILURE ERROR WARNING NOTE


Behavioral.assertion

BEGIN

dff: PROCESS (rst, set, clk)

BEGIN

ASSERT

(NOT (set = '1' AND rst = '1'))

REPORT

"set and rst are both 1"

SEVERITY NOTE;

IF set = '1' THEN

state <= '1' AFTER sq_delay;

ELSIF rst = '1' THEN

state <= '0' AFTER rq_delay;

ELSIF clk = '1' AND clk'EVENT THEN

state <= d AFTER cq_delay;

END IF;

END PROCESS dff;

q <= state;

qb <= NOT state;

END behavioral;

• Conditions are checked only when process is activated

• Make sure that set='1' AND rst='1' does not happen

• Severity NOTE issues message

Behavioral.assertion

ASSERT

Good Conditions

REPORT

Violation of good condition

SEVERITY

Level;

• Good conditions may be too many to list

• Good conditions = NOT (Bad conditions)

• Easier to use NOT of unwanted cases


Behavioral.assert

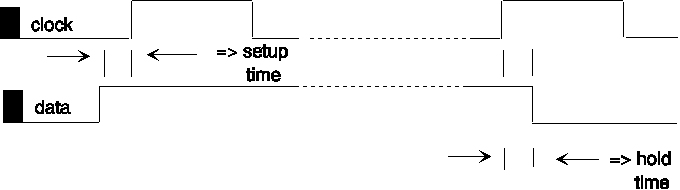

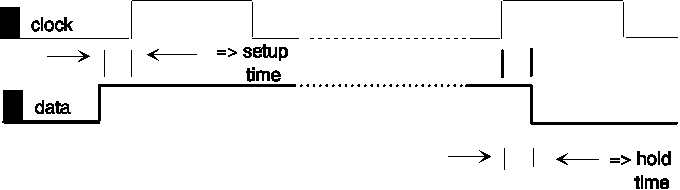

• Use assert to check setup and hold

• ASSERT set_up_violation check REPORT...

• ASSERT hold_violation check REPORT...

Behavioral.assert

Setup check in English:

When

(clock changes from zero to 1),

if

(data input has not been stable at least for the amount of the setup time),

then a setup time violation has occurred.

Setup check in VHDL:

(clock='1' AND NOT clock'STABLE)

AND

(NOT data'STABLE (setup_time)

• When the clock changes, check for stable data

• Check is placed after clock changes


Behavioral.assert

Hold check in English:

When

(there is a change on the data input)

if

(logic value on the clock is '1')

and

(clock has got a new value more recent than the amount of hold time)

then a hold time violation has occurred.

Hold check in VHDL:

(data'EVENT)

AND

(clock='1')

AND

(NOT clock'STABLE (hold_time))

• When data changes while clock is '1', check for stable clock

• Check is placed after data changes


Behavioral.assert

ENTITY d_sr_flipflop IS

GENERIC (sq_delay, rq_delay, cq_delay : TIME := 6 NS;

set_up, hold : TIME := 4 NS);

PORT (d, set, rst, clk : IN BIT; q, qb : OUT BIT);

BEGIN

ASSERT (NOT (clk = '1' AND clk'EVENT AND NOT d'STABLE(set_up) ))

REPORT "Set_up time violation"

SEVERITY WARNING;

ASSERT (NOT (d'EVENT AND clk = '1' AND NOT clk'STABLE(hold) ))

REPORT "Hold time violation"

SEVERITY WARNING;

END d_sr_flipflop;

--

ARCHITECTURE behavioral OF d_sr_flipflop IS

SIGNAL state : BIT := '0';

BEGIN

dff: PROCESS (rst, set, clk)

BEGIN

ASSERT (NOT (set = '1' AND rst = '1'))

REPORT "set and rst are both 1"

SEVERITY NOTE;

IF set = '1' THEN state <= '1' AFTER sq_delay;

ELSIF rst = '1' THEN state <= '0' AFTER rq_delay;

ELSIF clk = '1' AND clk'EVENT THEN state <= d AFTER cq_delay;

END IF;

END PROCESS dff;

q <= state; qb <= NOT state;

END behavioral;

• Concurrent assertion statements


Behavioral.wait

WAIT FOR waiting_time;

WAIT ON waiting_sensitivity_list;

WAIT UNTIL waiting_condition;

WAIT;

• Sequential statements

• Used for handshaking and delay modeling

• WAIT FOR real_time;

• WAIT FOR; --"a long time"

• WAIT ON (event on a signal);

• WAIT UNTIL event makes condition true;

• WAIT; --"forever"


Behavioral.wait

PROCESS PROCESS (a, b, c)

BEGIN BEGIN

. .

. .

. .

WAIT ON (a, b, c); .

END PROCESS; END PROCESS;

• WAIT ON at the end is equivalent to using sensitivity list

• Cannot use WAIT in a process with sensitivity list

• WAIT suspends a Process


Behavioral.wait.state_machine

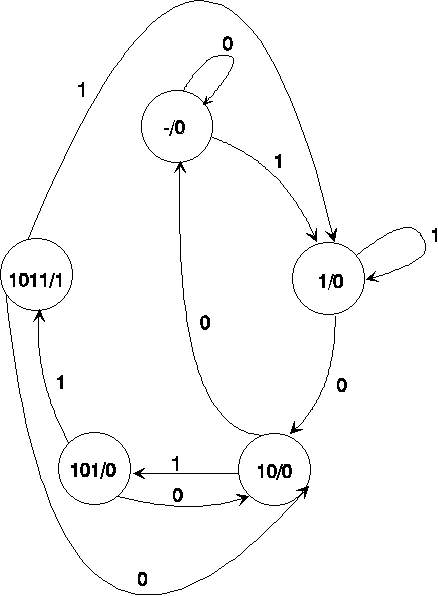

• A Moore 1011 detector

• Can use WAIT in a Process statement


Behavioral.wait.state_machine

ENTITY moore_detector IS

PORT (x, clk : IN BIT; z : OUT BIT);

END moore_detector;

--

ARCHITECTURE behavioral_state_machine OF moore_detector IS

TYPE state IS (reset, got1, got10, got101, got1011);

SIGNAL current : state := reset;

BEGIN

PROCESS

BEGIN

CASE current IS

WHEN reset =>

WAIT UNTIL clk = '1';

IF x = '1' THEN current <= got1; ELSE current <= reset;

END IF;

WHEN got1 =>

WAIT UNTIL clk = '1';

IF x = '0' THEN current <= got10; ELSE current <= got1;

END IF;

WHEN got10 => WAIT UNTIL clk = '1';

IF x = '1' THEN current <= got101; ELSE current <= reset;

END IF;

WHEN got101 => WAIT UNTIL clk = '1';

IF x = '1' THEN current <= got1011; ELSE current <= got10;

END IF;

WHEN got1011 => z <= '1';

WAIT UNTIL clk = '1';

IF x = '1' THEN current <= got1; ELSE current <= got10;

END IF;

END CASE;

WAIT FOR 1 NS; z <= '0';

END PROCESS;

END behavioral_state_machine;

• Each choice corresponds to a state


Behavioral.wait.state_machine

ARCHITECTURE behavioral_state_machine OF moore_detector IS

TYPE state IS (reset, got1, got10, got101, got1011);

SIGNAL current : state := reset;

BEGIN

PROCESS

BEGIN

CASE current IS

. . .

WHEN got1 =>

WAIT UNTIL clk = '1';

IF x = '0' THEN current <= got10;

ELSE current <= got1;

END IF;

. . .

END CASE;

WAIT FOR 1 NS;

z <= '0';

END PROCESS;

END behavioral_state_machine;

• WAIT for rising edge of clk

• Assign new state to current

• Wait for transaction on current

• Repeat forever

• Can use WAIT ON current 'TRANSACTION instead

• Timing check flexibility in each state


Behavioral.wait.state_machine

• Most behavioral state machine

• Least flexible, single active state


Behavioral.wait.clocking

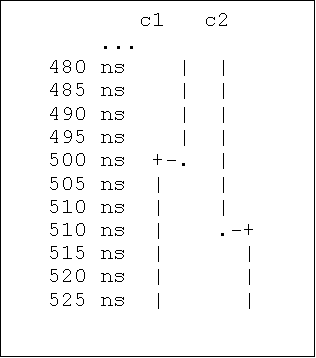

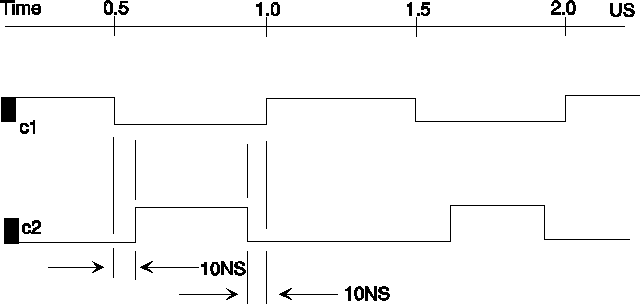

• Use WAIT for two phase clocking


Behavioral.wait.handshaking

-- start the following when ready to accept data
WAIT UNTIL data_ready = '1';
System accepted <= '1';
B -- start processing the newly received data
WAIT UNTIL data_ready - '0';
accepted <= '0';

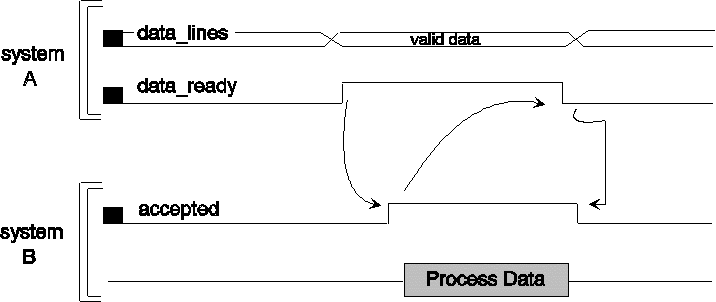

• Systems A & B talk

• A prepares data, B accepts data

• B releases A when data is picked


Behavioral.wait.handshaking

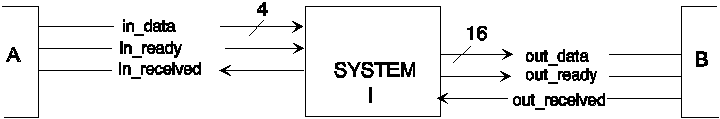

• Use handshaking mechanism in an interface

• A prepares 4 bit data, B needs 16 bit data

• Create interface system I

• Talk to A to get data, talk to B to put data

Behavioral.wait.handshaking

ENTITY system_i IS

PORT (in_data : IN BIT_VECTOR (3 DOWNTO 0);

out_data : OUT BIT_VECTOR (15 DOWNTO 0);

in_ready, out_received : IN BIT; in_received, out_ready : OUT BIT);

END system_i;

--

ARCHITECTURE waiting OF system_i IS

SIGNAL buffer_full, buffer_picked : BIT := '0';

SIGNAL word_buffer : BIT_VECTOR (15 DOWNTO 0);

BEGIN

a_talk: PROCESS

BEGIN

. . .

-- Talk to A, collect 4 4-bit data, keep a count

-- When ready, pass 16-bit data to b_talk

. . .

END PROCESS a_talk;

b_talk: PROCESS

BEGIN

. . .

-- Wait for 16-bit data from a_talk

-- When data is received, send to B using proper handshaking

. . .

END PROCESS b_talk;

END waiting;

• a_talk process & b_talk process also talk to each other

• Use buffer_full, buffer_picked, and word_buffer for a_talk and b_talk communication


Behavioral.wait.handshaking

a_talk: PROCESS

VARIABLE count : INTEGER RANGE 0 TO 4 := 0;

BEGIN

WAIT UNTIL in_ready = '1';

count := count + 1;

CASE count IS

WHEN 0 => NULL;

WHEN 1 => word_buffer (03 DOWNTO 00) <= in_data;

WHEN 2 => word_buffer (07 DOWNTO 04) <= in_data;

WHEN 3 => word_buffer (11 DOWNTO 08) <= in_data;

WHEN 4 => word_buffer (15 DOWNTO 12) <= in_data;

buffer_full <= '1'; WAIT UNTIL buffer_picked = '1';

buffer_full <= '0'; count := 0;

END CASE;

in_received <= '1';

WAIT UNTIL in_ready = '0';

in_received <= '0';

END PROCESS a_talk;

b_talk: PROCESS

BEGIN

IF buffer_full = '0' THEN WAIT UNTIL buffer_full = '1'; END IF;

out_data <= word_buffer;

buffer_picked <= '1';

WAIT UNTIL buffer_full = '0';

buffer_picked <= '0';

out_ready <= '1';

WAIT UNTIL out_received = '1';

out_ready <= '0';

END PROCESS b_talk;

• a_talk gets data from A and talks to b_talk

• b_talk talks to a_talk and sends data to B


Behavioral.ASCII_IO

USE STD.TEXTIO.ALL;

...

READLINE (f, l)

READ (l, v1), READ (l, v2), ...

...

WRITE (l, v1), WRITE (l, v2), ...

WRITELINE (f, l)

END FILE (f)

• READ or WRITE:


BIT, BIT_VECTOR, BOOLEAN,

CHARACTER, INTEGER, REAL,

STRING, TME

• l is LINE, f is FILE


Behavioral.ASCII_IO

TYPE state IS (reset, got1, got10, got101);

TYPE state_vector IS ARRAY (NATURAL RANGE <>) OF state;

. . .

FUNCTION one_of (sources : state_vector) RETURN state IS

USE STD.TEXTIO.ALL;

VARIABLE l : LINE;

FILE flush : TEXT IS OUT "/dev/tty";

VARIABLE state_string : STRING (1 TO 7);

BEGIN

FOR i IN sources'RANGE LOOP

CASE sources(i) IS

WHEN reset => state_string := "reset ";

WHEN got1 => state_string := "got1 ";

WHEN got10 => state_string := "got10 ";

WHEN got101 => state_string := "got101 ";

END CASE;

WRITE (l, state_string, LEFT, 7);

END LOOP;

WRITELINE (flush, l);

RETURN sources (sources'LEFT);

END one_of;

• Add screen output to resolution function

• Print after enumeration to string type conversion

• Keep appending to l, write all sources


Behavioral.ASCII_IO

USE STD.TEXTIO.ALL;

PROCEDURE display (SIGNAL value1, value2 : BIT) IS

FILE flush : TEXT IS OUT "/dev/tty;

VARIABLE filler : STRING (1 TO 3) := " ..";

VARIABLE l : LINE;

BEGIN

WRITE (l, NOW, RIGHT, 8, NS);

IF value1'EVENT THEN

WRITE (l, value1, RIGHT, 3);

WRITE (l, filler, LEFT, 0);

ELSE

WRITE (l, filler, LEFT, 0);

WRITE (l, value2, RIGHT, 3);

END IF;

WRITELINE (flush, l);

END display;

• An EVENT on value1 or value2 puts the following in l:


NOW

• An EVENT on value1 puts the following in l:


v1 ...

• An EVENT on value2 puts the following in l:


... v2

• WRITELINE writes:


time v1 ...

time ... v2

---

Behavioral.ASCII_IO

ENTITY two_phase_clock IS END two_phase_clock;

--

ARCHITECTURE input_output OF two_phase_clock IS

-- The above display procedure goes here

SIGNAL c1 : BIT := '1';

SIGNAL c2 : BIT := '0';

BEGIN

phase1: c1 <= NOT c1 AFTER 500 NS WHEN NOW < 4 US ELSE c1;

phase2: PROCESS

BEGIN

WAIT UNTIL c1 = '0';

WAIT FOR 10 NS;

c2 <= '1';

WAIT FOR 480 NS;

c2 <= '0';

END PROCESS phase2;

display (c1, c2);

END input_output;

• Using display to display two clock phases

• FILE is reinitialized each time

• Because file is reinitialized, can only output to screen


Behavioral.ASCII_IO

USE STD.TEXTIO.ALL;

ENTITY two_phase_clock IS END two_phase_clock;

--

ARCHITECTURE input_output OF two_phase_clock IS

SIGNAL c1 : BIT := '1'; SIGNAL c2 : BIT := '0';

BEGIN

. . .

-- Generate c1 and c2 phases of the clock

. . .

writing: PROCESS (c1, c2)

FILE flush : TEXT IS OUT "clock.out";

VARIABLE filler : STRING (1 TO 3) := " ..";

VARIABLE l : LINE;

BEGIN

WRITE (l, NOW, RIGHT, 8, NS);

IF c1'EVENT THEN

WRITE (l, c1, RIGHT, 3);

WRITE (l, filler, LEFT, 0);

ELSE

WRITE (l, filler, LEFT, 0);

WRITE (l, c2, RIGHT, 3);

END IF;

WRITELINE (flush, l);

END PROCESS writing;

END input_output;

• Declare FILE in process to keep it open during IO

• Same file (clock.out) will be preserved

Behavioral.ASCII_IO

• Output produced in the clock.out file

• Same output is also produced by display on the screen


Behavioral.ASCII_IO

ARCHITECTURE input_output OF two_phase_clock IS

. . .

SIGNAL print_tick : BIT := '0';

CONSTANT print_resolution : TIME := 5 NS;

BEGIN

-- Generate c1 and c2 phases of the clock as before

print_tick <= NOT print_tick AFTER print_resolution WHEN NOW <= 2 US

ELSE print_tick;

plotting: PROCESS (print_tick, c1, c2)

FILE flush : TEXT IS OUT "clock4.out";

VARIABLE header : STRING (1 TO 18) := " c1 c2 ";

VARIABLE l : LINE;

PROCEDURE append_wave_slice (SIGNAL s : BIT) IS

VARIABLE lo_value : STRING (1 TO 3) := "| ";

VARIABLE hi_value : STRING (1 TO 3) := " |";

VARIABLE lo_to_hi : STRING (1 TO 3) := ".-+";

VARIABLE hi_to_lo : STRING (1 TO 3) := "+-.";

BEGIN

IF s'LAST_EVENT < print_resolution AND s'LAST_VALUE /= s THEN

IF s = '1' THEN WRITE (l, lo_to_hi, RIGHT, 5); -- Event occurs

ELSE WRITE (l, hi_to_lo, RIGHT, 5); END IF;

ELSE

IF s = '1' THEN WRITE (l, hi_value, RIGHT, 5); -- No event

ELSE WRITE (l, lo_value, RIGHT, 5); END IF;

END IF;

END append_wave_slice;

BEGIN

IF NOW = 0 US THEN WRITE (l, header, LEFT, 0); WRITELINE (flush, l);

END IF;

WRITE (l, NOW, RIGHT, 8, NS);

append_wave_slice (c1); append_wave_slice (c2);

WRITELINE (flush, l);

END PROCESS plotting;

END input_output;

• Waveform generation


Behavioral.ASCII_IO

• Plotting is activated every 5 NS

• Write " |" for '1'; "| " for '0'

• Write "+-." for 1 to 0

• Write ".-+" for 0 to 1


Behavioral.ASCII_IO

PROCEDURE reading_from_file (

VARIABLE in_file: IN TEXT;

... other parameters ...

);

PROCEDURE writing_to_file (

VARIABLE out_file : OUT TEXT;

... other parameters...

);

• To use procedure, declared file must be passed

• Declare FILE outside procedure

• Pass as IN or OUT variable

• Declare LINE inside procedure

Behavioral.MSI_design

• Design based on MSI parts

• Assume above parts are available

Behavioral.MSI_based_design

ENTITY ls377_register IS

CONSTANT prop_delay : TIME := 7 NS;

PORT (clk, g_bar : IN BIT; d8 : IN BIT_VECTOR (7 DOWNTO 0);

q8 : OUT BIT_VECTOR (7 DOWNTO 0));

END ls377_register;

--

ARCHITECTURE dataflow OF ls377_register IS

BEGIN

GUARD <= NOT clk'STABLE AND clk = '1' AND (g_bar = '0')

q8 <= GUARDED d8 AFTER prop_delay;

END dataflow;

• 74LS377, clocked register

• Default delays can be used or reconfigured


Behavioral.MSI_based_design

USE WORK.basic_utilities.ALL;

ENTITY ls85_comparator IS

GENERIC (prop_delay : TIME := 10 NS);

PORT (a, b : IN BIT_VECTOR (3 DOWNTO 0); gt, eq, lt : IN BIT;

a_gt_b, a_eq_b, a_lt_b : OUT BIT);

END ls85_comparator;

--

ARCHITECTURE behavioral OF ls85_comparator IS

BEGIN

PROCESS (a, b, gt, eq, lt)

VARIABLE ai, bi : INTEGER;

BEGIN

bin2int (a, ai); bin2int (b, bi);

IF ai > bi THEN a_eq_b <= '0' AFTER prop_delay;

a_gt_b <= '1' AFTER prop_delay; a_lt_b <= '0' AFTER prop_delay;

ELSIF ai < bi THEN a_eq_b <= '0' AFTER prop_delay;

a_gt_b <= '0' AFTER prop_delay; a_lt_b <= '1' AFTER prop_delay;

ELSIF ai = bi THEN a_eq_b <= eq AFTER prop_delay;

a_gt_b <= gt AFTER prop_delay; a_lt_b <= lt AFTER prop_delay;

END IF;

END PROCESS;

END behavioral;

• 74LS85, four bit comparator

• Default delays can be configured later


Behavioral.MSI_based_design

ENTITY ls163_counter IS

GENERIC (prop_delay : TIME := 12 NS);

PORT (clk, clr_bar, ld_bar, enp, ent : IN BIT;

abcd : IN BIT_VECTOR (3 DOWNTO 0);

q_abcd : OUT BIT_VECTOR (3 DOWNTO 0); rco : OUT BIT);

END ls163_counter;

--

ARCHITECTURE behavioral OF ls163_counter IS

BEGIN

counting : PROCESS (clk)

VARIABLE internal_count : BIT_VECTOR (3 DOWNTO 0) := "0000";

BEGIN

IF (clk'EVENT AND clk = '1') THEN

IF (clr_bar = '0') THEN internal_count := "0000";

ELSIF (ld_bar = '0') THEN internal_count := abcd;

ELSIF (enp = '1' AND ent = '1') THEN

internal_count := inc (internal_count);

IF (internal_count = "1111") THEN rco <= '1' AFTER prop_delay;

ELSE rco <= '0'; END IF;

END IF;

q_abcd <= internal_count AFTER prop_delay;

END IF;

END PROCESS counting;

END behavioral;

• 74LS163, four bit synchronous counter

• Default delays can be overwritten


Behavioral.MSI_based_design

• Design a sequential comparator

• Count matching consecutive data

• Partition according to available parts


Behavioral.MSI_based_based_design

• Design is based on available parts

• Configure to use LS library, specify delay


Behavioral.MSI_based_design

• Component declarations do not include generics

• Unconfigured description wires components


Behavioral.MSI_based_design

• Configuration declaration binds to 74LS parts

• Generic values overwrite those of the 74LS parts


Behavioral.MSI_based_design

• Testbench verifies behavior


1. Outline: Introduction, Organization, Outline

2. Review: Behavioral description, Using process statements, Top-down design, Using available components, Wiring predefined components, Wiring from bottom to top, Generation of testbench data, Using procedures

3. VHDL_Timing: Modeling requirements, Objects & classes, Signals & variables, Concurrent & sequential assignments, Events, transactions & delta delays, Delay modeling, Sequential placement of transactions, Conventions

4. Structural_Description_of_Hardware: Wiring parts into larger designs, Start with primitives, Wire gates into general purpose components, Use iterative constructs, Generate testbenches, Show binding alternatives, Use gate-based components for a larger design

5. Design_Organization: Subprograms, Packaging, Parameter specification, Parametrization, Top level configuration, Design libraries, A complete example

6. Utilities_for_high_level_descriptions: Language aspects, Types, Over loading subprograms operators, Predefined Attributes, User defined attributes

7. Dataflow: Constructs for dataflow descriptions, Multiplexing and clocking, Multiple assignments, State machines, Open collector gates, A complete dataflow example, Load dependent timing

8. Behavioral_Descriptions: Constructs for sequential descriptions, Assertion for behavioral checks, Handshaking constructs, Timing control, Formatted I/O, MSI parts, A complete MSI based design

9. STANDARDS: MVL9: logic value system, Logic type, Operators, Conversions; VHDL'93: Operators, Delay model, Instantiation, Binding, Attributes, Signal assignments, Report, Postponed process
