• Constructs for dataflow descriptions

• Multiplexing and clocking


Selection constructs

Guarded assignments

• Multiple assignments


Resolutions

Anding, oring, wiring

Guarded signals

• State machines

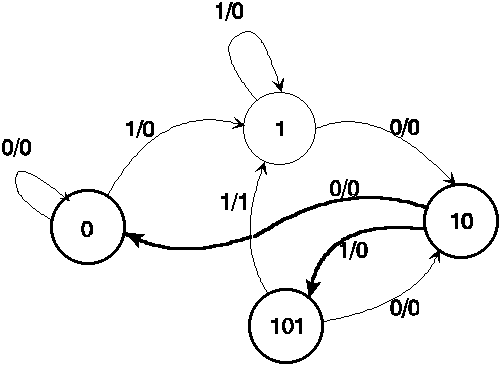

Simple sequence detector

Multiple active states

• Open collectors


Using resolution functions

• A complete dataflow example

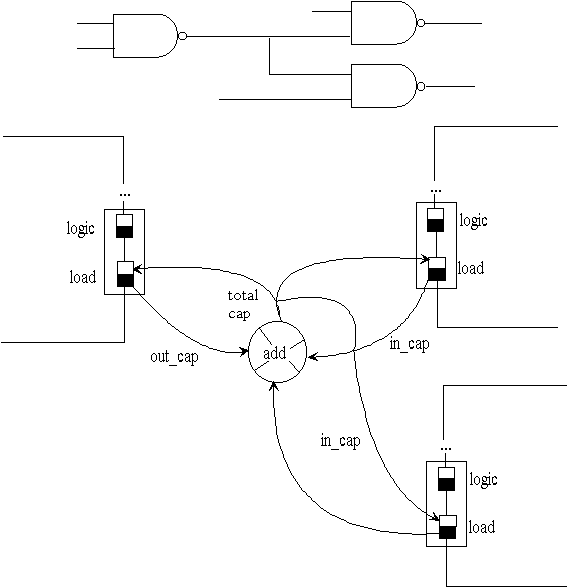

• Load dependent timing

• Multiplexers are used for data selection

Dataflow.multiplexing

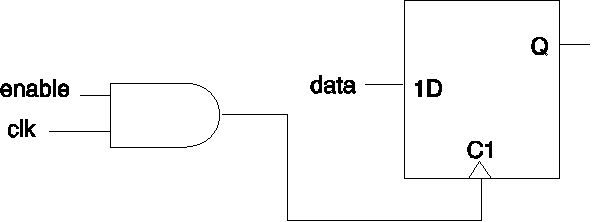

• Flip flop clocking selects data

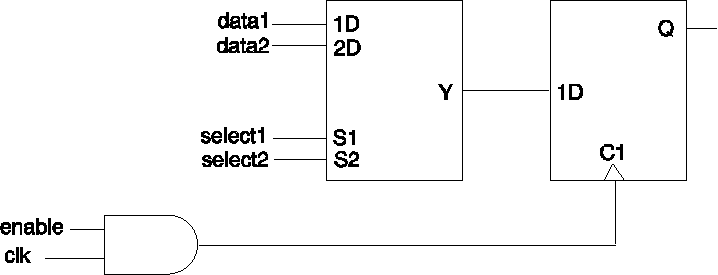

• Various forms of data selection may be combined

• Will show language constructs for such selections


Dataflow.multiplexing

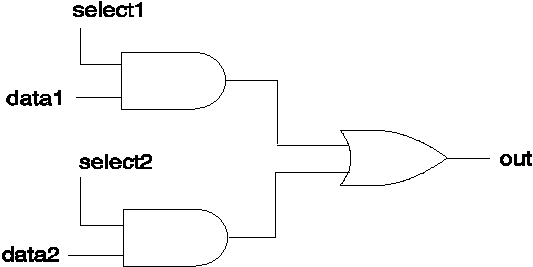

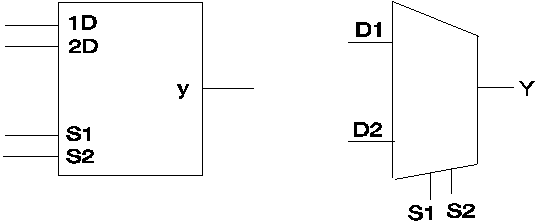

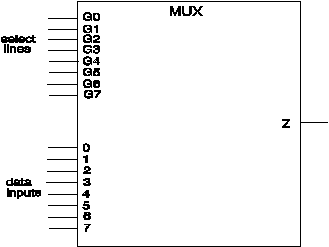

• Description of a simple multiplexer

• Selected signal assignment is used


Dataflow.multiplexing

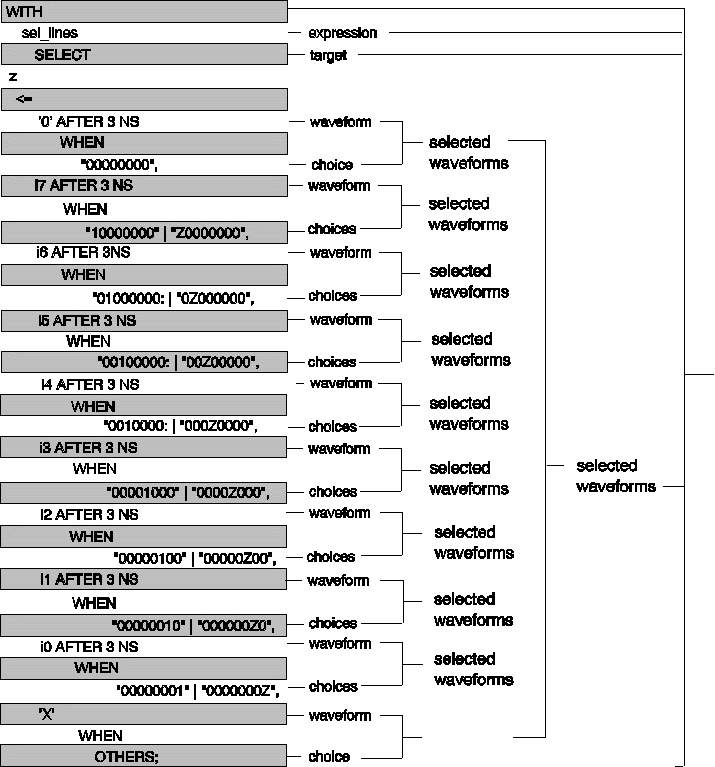

• Selected signal assignment

• Selected waveforms use choice or choices


Dataflow.multiplexing

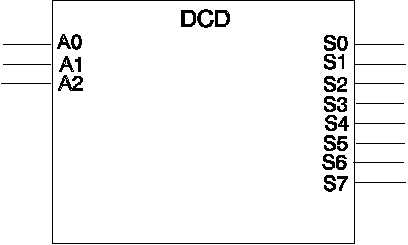

• Decoder description uses selected signal assignment

• All possibilities must be considered

Dataflow.clocking

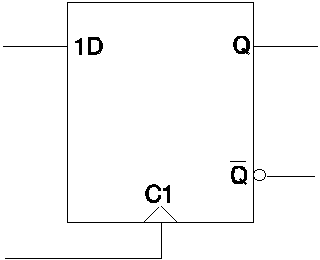

• A simple flipflop uses internal_state

• On clock edge d is transferred to internal_state

• Events on internal_state cause assignments to q and qb

Dataflow.clocking

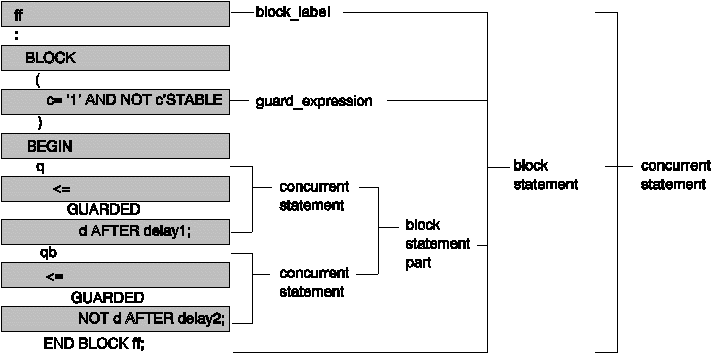

ARCHITECTURE guarding OF d_flipflop IS

BEGIN

ff: BLOCK ( c = '1' AND NOT c'STABLE )

BEGIN

q <= GUARDED d AFTER delay1;

qb <= GUARDED NOT d AFTER delay2;

END BLOCK ff;

END guarding;

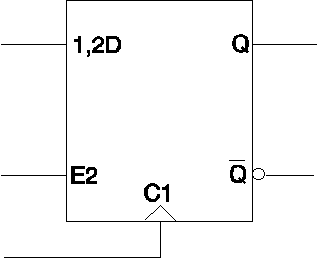

• Better representation of clocking disconnects d from q

• Disconnection is specified by GUARDED

• GUARDED assignments are guarded by guard expression

• Can also guard selected and conditional signal assignments


Dataflow.clocking

ENTITY flipflop_test IS END flipflop_test;

--

ARCHITECTURE input_output OF flipflop_test IS

COMPONENT

flop PORT (d, c : IN BIT; q, qb : OUT BIT);

END COMPONENT;

FOR c1 : flop USE ENTITY WORK.d_flipflop (assigning);

FOR c2 : flop USE ENTITY WORK.d_flipflop (guarding);

SIGNAL dd, cc, q1, q2, qb1, qb2 : BIT;

BEGIN

cc <= NOT cc AFTER 400 NS WHEN NOW < 2 US ELSE cc;

dd <= NOT dd AFTER 1000 NS WHEN NOW < 2 US ELSE dd;

c1: flop PORT MAP (dd, cc, q1, qb1);

c2: flop PORT MAP (dd, cc, q2, qb2);

END input_output;

• Testbench tests and verifies both descriptions

• A simple method for generation of periodic signals


Dataflow.clocking

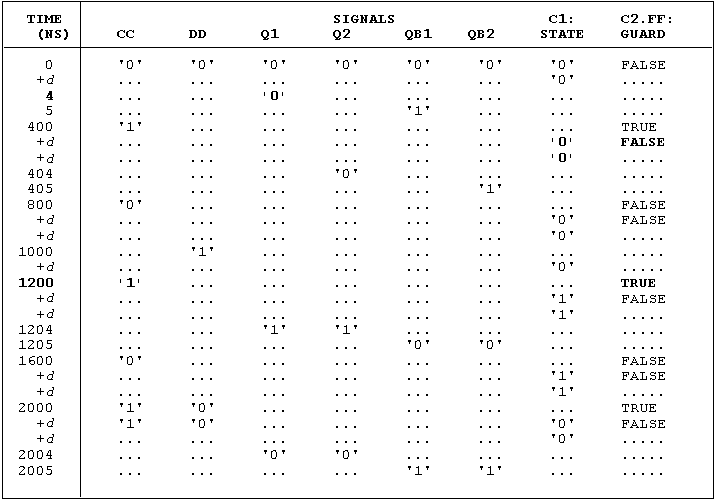

• In assigning:


Two transactions on internal_state for every clock edge

Transaction on q1 at time 0004, is due to initialization

• In guarding:


c2.ff : GUARD sees GUARD inside guarding

Guard expression is only TRUE for 1 delta

---

Dataflow.clocking

• Syntax details of guarded blocks


Dataflow.clocking

ENTITY de_flipflop IS

GENERIC (delay1 : TIME := 4 NS; delay2 : TIME := 5 NS);

PORT (d, e, c : IN BIT; q, qb : OUT BIT);

END de_flipflop;

--

ARCHITECTURE guarding OF de_flipflop IS

BEGIN

edge: BLOCK ( c = '1' AND NOT c'STABLE )

BEGIN

gate: BLOCK ( e = '1' AND GUARD )

BEGIN

q <= GUARDED d AFTER delay1;

qb <= GUARDED NOT d AFTER delay2;

END BLOCK gate;

END BLOCK edge;

END guarding;

(e= '1') AND ( c= '1' AND NOT c'STABLE)

• Can nest block statements

• Combining guard expressions must be done explicitly

• Implicit GUARD signals in each block


Dataflow.clocking

ENTITY flipflop_test IS END flipflop_test;

--

ARCHITECTURE input_output OF flipflop_test IS

COMPONENT

ff1 PORT (d, e, c : IN BIT; q, qb : OUT BIT);

END COMPONENT;

FOR c1 : ff1 USE ENTITY WORK.de_flipflop (guarding);

SIGNAL dd, ee, cc, q1, qb1 : BIT;

BEGIN

cc <= NOT cc AFTER 400 NS WHEN NOW < 3 US ELSE cc;

dd <= NOT dd AFTER 1000 NS WHEN NOW < 3 US ELSE dd;

ee <= '1', '0' AFTER 2200 NS;

c1: ff1 PORT MAP (dd, ee, cc, q1, qb1);

END input_output;

• Testbench verifies operation of de_flipflop

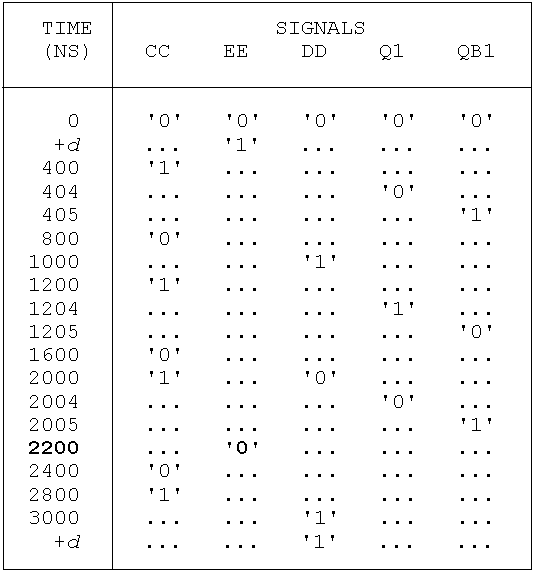

• After 2200 q1 is disconnected from d


Dataflow.resolution

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE: qit

ENTITY y_circuit IS

PORT (a, b, c, d : IN qit; z : OUT qit);

END y_circuit;

--

ARCHITECTURE smoke_generator OF y_circuit IS

SIGNAL circuit_node : qit;

BEGIN

circuit_node <= a;

circuit_node <= b;

circuit_node <= c;

circuit_node <= d;

z <= circuit_node;

END smoke_generator;

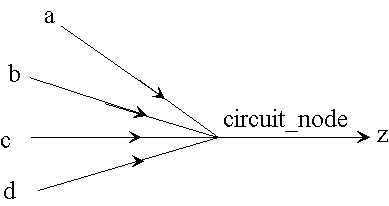

• Normally several sources cannot drive a signal

• Real circuits smoke


Dataflow.resolution

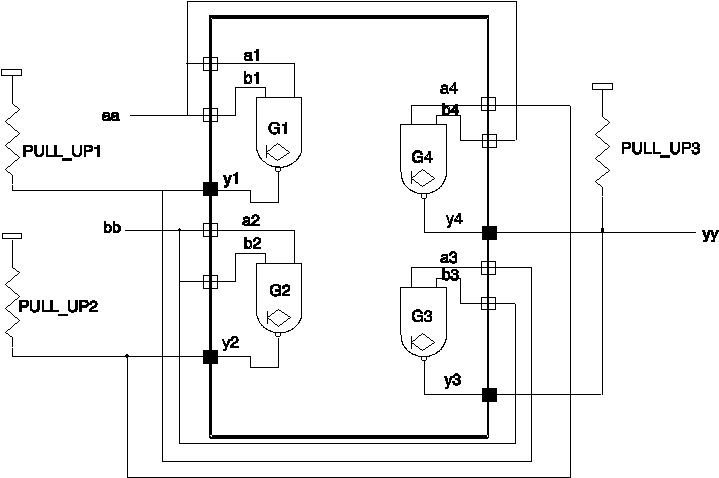

• Multiple drivers is possible only if a resolution exists

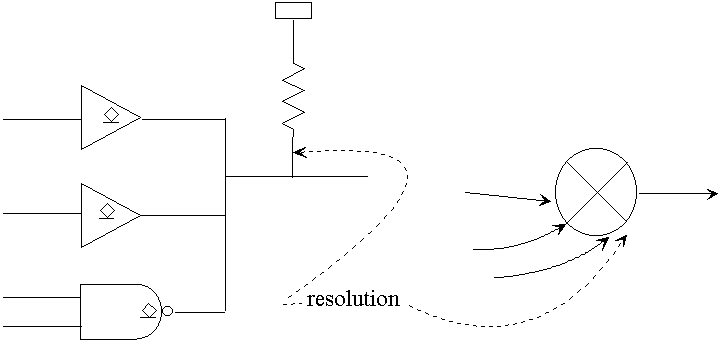

• Example in hardware is "open collector"

• Pull_up provides resolution

• A convenient symbol is shown


Dataflow.resolution

-- FROM basic_utilities USE qit, qit_vector, "AND"

FUNCTION anding ( drivers : qit_vector) RETURN qit IS

VARIABLE accumulate : qit := '1';

BEGIN

FOR i IN drivers'RANGE LOOP

accumulate := accumulate AND drivers(i);

END LOOP;

RETURN accumulate;

END anding;

• VHDL uses resolution functions

• Resolving multiple values to a single value

• Function parameter must be vector of its return type

• All drivers are checked


Dataflow.resolution

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE: qit

ARCHITECTURE wired_and OF y_circuit IS

FUNCTION anding ( drivers : qit_vector) RETURN qit IS

VARIABLE accumulate : qit := '1';

BEGIN

FOR i IN drivers'RANGE LOOP

accumulate := accumulate AND drivers(i);

END LOOP;

RETURN accumulate;

END anding;

SIGNAL circuit_node : anding qit;

BEGIN

circuit_node <= a;

circuit_node <= b;

circuit_node <= c;

circuit_node <= d;

z <= circuit_node;

END wired_and;

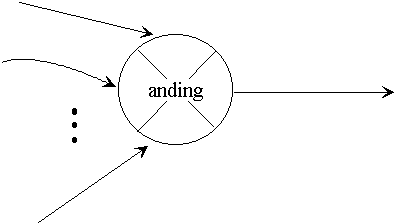

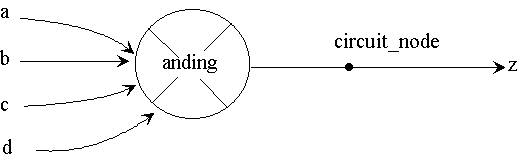

• Specify anding for the resolution on circuit_node

• Type of circuit_node is a subtype of qit

• ANDing simultaneously receives all drivers


Dataflow.resolution

FUNCTION oring ( drivers : qit_vector) RETURN qit IS

VARIABLE accumulate : qit := '0';

BEGIN

FOR i IN drivers'RANGE LOOP

accumulate := accumulate OR drivers(i);

END LOOP;

RETURN accumulate;

END oring;

A subtype:

SUBTYPE ored_qit IS oring qit;

. . .

-- The following declarations are equivalent

SIGNAL t : ored_qit;

SIGNAL t : oring qit;

For Arrays:

TYPE ored_qit_vector IS ARRAY (NATURAL RANGE<>) OF ored_qit;

. . .

SIGNAL t_byte : ored_qit_vector (7 DOWNTO 0);

• Another example of resolution function

• Must have subtype for resolved array types


Dataflow.resolution

ARCHITECTURE multiple_assignments OF mux_8_to_1 IS

SIGNAL t : ored_qit

BEGIN

t <= i7 AND s7;

t <= i6 AND s6;

t <= i5 AND s5;

t <= i4 AND s4;

t <= i3 AND s3;

t <= i2 AND s2;

t <= i1 AND s1;

t <= i0 AND s0;

z <= t;

END multiple_assignments;

• Multiplexer uses implicit ORing on t

• AND_OR logic is realized


Dataflow.resolution

FUNCTION wiring ( drivers : qit_vector) RETURN qit IS
VARIABLE accumulate : qit := 'Z'; -- wire value with no drivers
BEGIN
FOR i IN drivers'RANGE LOOP
accumulate := wire (accumulate, drivers(i));
END LOOP;
RETURN accumulate;
END wiring;

FUNCTION wiring ( drivers : qit_vector) RETURN qit;
SUBTYPE wired_qit IS wiring qit;
TYPE wired_qit_vector IS ARRAY (NATURAL RANGE <>) OF wired_qit;

• A complete resolution for wiring


Dataflow.resolution

FUNCTION oring ( drivers : qit_vector) RETURN qit;
SUBTYPE ored_qit IS oring qit;
TYPE ored_qit_vector IS ARRAY (NATURAL RANGE <>) OF ored_qit;

-- Function definition, can go in a package body

FUNCTION oring ( drivers : qit_vector) RETURN qit IS
VARIABLE accumulate : qit := '0';
BEGIN
FOR i IN drivers'RANGE LOOP
accumulate := accumulate OR drivers(i);
END LOOP;
RETURN accumulate;
END oring;

• A complete resolution for oring

• OR for BIT is already defined

• If no drivers, '0' is returned


Dataflow.resolution.application

bi : BLOCK (si = '1' OR si = 'z')

BEGIN

t <= GUARDED ii;

END BLOCK;

. . .

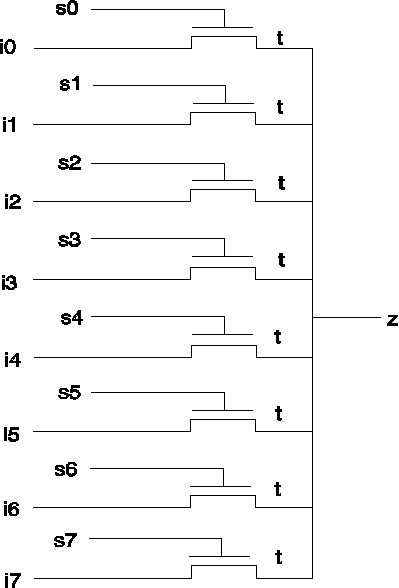

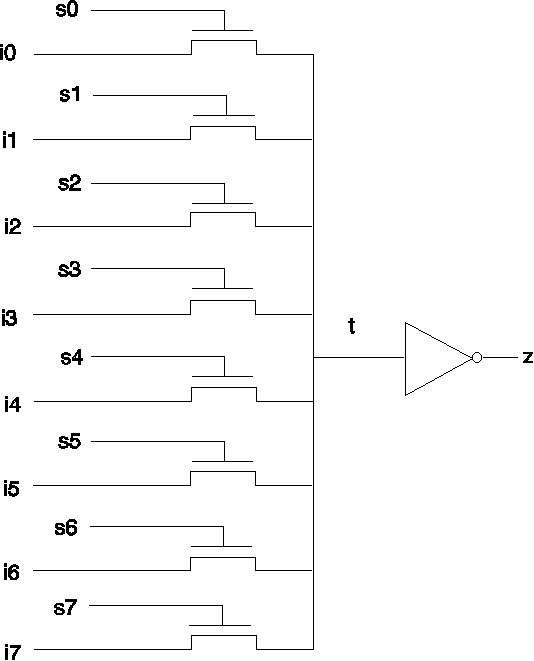

• A mux made of pass transistors

• Each ii connects to t if si is '1'

• ii is disconnected from t if si is '0'


Dataflow.resolution.application

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE: wired_qit

ARCHITECTURE multiple_guarded_assignments OF mux_8_to_1 IS

SIGNAL t : wiring qit BUS;

BEGIN

b7: BLOCK (s7 = '1' OR s7 = 'Z') BEGIN t <= GUARDED i7; END BLOCK;

b6: BLOCK (s6 = '1' OR s6 = 'Z') BEGIN t <= GUARDED i6; END BLOCK;

b5: BLOCK (s5 = '1' OR s5 = 'Z') BEGIN t <= GUARDED i5; END BLOCK;

b4: BLOCK (s4 = '1' OR s4 = 'Z') BEGIN t <= GUARDED i4; END BLOCK;

b3: BLOCK (s3 = '1' OR s3 = 'Z') BEGIN t <= GUARDED i3; END BLOCK;

b2: BLOCK (s2 = '1' OR s2 = 'Z') BEGIN t <= GUARDED i2; END BLOCK;

b1: BLOCK (s1 = '1' OR s1 = 'Z') BEGIN t <= GUARDED i1; END BLOCK;

b0: BLOCK (s0 = '1' OR s0 = 'Z') BEGIN t <= GUARDED i0; END BLOCK;

z <= t;

END multiple_guarded_assignments;

• Disconnection is realized by block statements

• If all drivers are disconnected


Real hardware returns to 'Z'

Use BUS to implement this behavior

• Default in wire is 'Z'

• This default is used if wiring is called with null

• Last disconnection causes call to wiring with Null


Dataflow.resolution.application

• Circuit shows a register effect

• t retains value after last disconnection

Dataflow.resolution.application

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE: qit, wired_qit

ENTITY multiplexed_half_register IS

PORT (i7, i6, i5, i4, i3, i2, i1, i0 : IN qit;

s7, s6, s5, s5, s4, s3, s2, s1, s0 : IN qit; z : OUT qit );

END multiplexed_half_register;

--

ARCHITECTURE guarded_assignments OF multiplexed_half_register IS

SIGNAL t : wired_qit REGISTER;

BEGIN

b7: BLOCK (s7 = '1' OR s7 = 'Z') BEGIN t <= GUARDED i7; END BLOCK;

b6: BLOCK (s6 = '1' OR s6 = 'Z') BEGIN t <= GUARDED i6; END BLOCK;

b5: BLOCK (s5 = '1' OR s5 = 'Z') BEGIN t <= GUARDED i5; END BLOCK;

b4: BLOCK (s4 = '1' OR s4 = 'Z') BEGIN t <= GUARDED i4; END BLOCK;

b3: BLOCK (s3 = '1' OR s3 = 'Z') BEGIN t <= GUARDED i3; END BLOCK;

b2: BLOCK (s2 = '1' OR s2 = 'Z') BEGIN t <= GUARDED i2; END BLOCK;

b1: BLOCK (s1 = '1' OR s1 = 'Z') BEGIN t <= GUARDED i1; END BLOCK;

b0: BLOCK (s0 = '1' OR s0 = 'Z') BEGIN t <= GUARDED i0; END BLOCK;

z <= t;

END guarded_assignments;

• Use REGISTER to model retaining of last value

• No call is made to wiring upon last disconnection


Dataflow.resolution.application

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE: qit, wired_qit

ENTITY multiplexed_half_register IS

PORT (i7, i6, i5, i4, i3, i2, i1, i0 : IN qit;

s7, s6, s5, s5, s4, s3, s2, s1, s0 : IN qit;

z : OUT wired_qit REGISTER );

END multiplexed_half_register;

--

ARCHITECTURE guarded_assignments OF multiplexed_half_register IS

BEGIN

b7: BLOCK (s7 = '1' OR s7 = 'Z') BEGIN z <= GUARDED i7; END BLOCK;

b6: BLOCK (s6 = '1' OR s6 = 'Z') BEGIN z <= GUARDED i6; END BLOCK;

b5: BLOCK (s5 = '1' OR s5 = 'Z') BEGIN z <= GUARDED i5; END BLOCK;

b4: BLOCK (s4 = '1' OR s4 = 'Z') BEGIN z <= GUARDED i4; END BLOCK;

b3: BLOCK (s3 = '1' OR s3 = 'Z') BEGIN z <= GUARDED i3; END BLOCK;

b2: BLOCK (s2 = '1' OR s2 = 'Z') BEGIN z <= GUARDED i2; END BLOCK;

b1: BLOCK (s1 = '1' OR s1 = 'Z') BEGIN z <= GUARDED i1; END BLOCK;

b0: BLOCK (s0 = '1' OR s0 = 'Z') BEGIN z <= GUARDED i0; END BLOCK;

END guarded_assignments;

• Ports can be resolved signals

• Kind of signal (BUS or REGISTER) can also be specified


Dataflow.disconnection

b5: BLOCK (s5='1' OR s5='Z')

BEGIN t <= GUARDED i5 AFTER 4 NS;

END BLOCK;

DISCONNECT t : w ired_qit AFTER 6 NS;

• Signal assignment can specify connection delay

• In guarded signal assignments:

• Use DISCONNECT for disconnection delay

• Above DISCONNECT applies to all assignments to t


Dataflow.disconnection

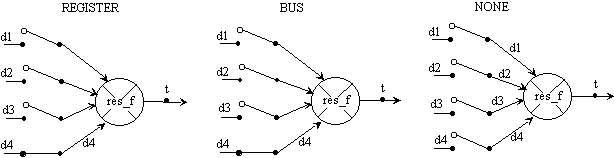

Signal Kind determines effective value

• REGISTER: Last disconnection; t retains value

• BUS: Last disconnection; t receives values of res_f(null)

• none: Upon disconnection, driver value still holds


Dataflow.general_multiplexer

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE : qit, qit_vector, wired_qit

ENTITY mux_n_to_1 IS

PORT (i, s : IN qit_vector; z : OUT wired_qit BUS);

END mux_n_to_1;

--

ARCHITECTURE multiple_guarded_assignments OF mux_n_to_1 IS

BEGIN

bi: FOR j IN i'RANGE GENERATE

bj: BLOCK (s(j) = '1' OR s(j) = 'Z')

BEGIN

z <= GUARDED i(j);

END BLOCK;

END GENERATE;

END multiple_guarded_assignments;

• A useful unconstrained multiplexer

• Will know size when instantiated


Dataflow.general_multiplexer

USE WORK.basic_utilities.ALL;

ENTITY mux_tester IS END mux_tester;

--

ARCHITECTURE input_output OF mux_tester IS

COMPONENT mux PORT (i, s : IN qit_vector; z : OUT wired_qit BUS);

END COMPONENT;

FOR ALL : mux

USE ENTITY WORK.mux_n_to_1 (multiple_guarded_assignments);

SIGNAL ii, ss : qit_vector (3 DOWNTO 0) := "0000"; SIGNAL zz : qit;

BEGIN

ii <= "1010" AFTER 10 US, "Z100" AFTER 20 US, "0011" AFTER 30 US;

ss <= "0010" AFTER 05 US, "1100" AFTER 15 US, "000Z" AFTER 25 US;

mm : mux PORT MAP (ii, ss, zz);

END input_output;

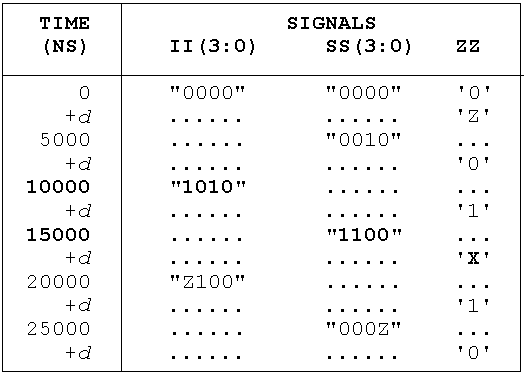

• Simulation produces 'X' for two conflincting enabled inputs

• Produces 'Z' when no inputs are enabled


Dataflow.state_machines

--States are named: reset, got1, got10, got101

clocking : BLOCK (clk = '1' AND NOT clk'STABLE)

BEGIN

s1: BLOCK ( current = reset AND GUARD ) - - reset

BEGIN

current <= GUARDED got1 WHEN x = '1' ELSE reset;

END BLOCK s1;

...

END BLOCK clocking;

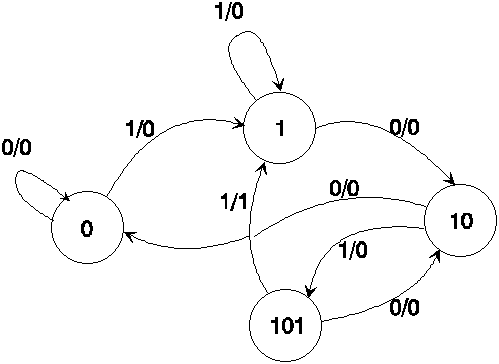

• Use resolutions & guarded blocks

• A simple 1011 Mealy detector

• A block statement for each state


Dataflow.state_machines

ENTITY detector IS PORT (x, clk : IN BIT; z : OUT BIT); END detector;

--

ARCHITECTURE singular_state_machine OF detector IS

TYPE state IS (reset, got1, got10, got101);

TYPE state_vector IS ARRAY (NATURAL RANGE <>) OF state;

FUNCTION one_of (sources : state_vector) RETURN state IS

BEGIN RETURN sources(sources'LEFT);

END one_of;

SIGNAL current : one_of state REGISTER := reset;

BEGIN

clocking : BLOCK (clk = '1' AND NOT clk'STABLE)

BEGIN

s1: BLOCK ( current = reset AND GUARD )

BEGIN

current <= GUARDED got1 WHEN x = '1' ELSE reset;

END BLOCK s1;

s2: BLOCK ( current = got1 AND GUARD )

BEGIN

current <= GUARDED got10 WHEN x = '0' ELSE got1;

END BLOCK s2;

s3: BLOCK ( current = got10 AND GUARD )

BEGIN

current <= GUARDED got101 WHEN x = '1' ELSE reset;

END BLOCK s3;

s4: BLOCK ( current = got101 AND GUARD)

BEGIN

current <= GUARDED got1 WHEN x = '1' ELSE got10;

z <= '1' WHEN ( current = got101 AND x = '1') ELSE '0';

END BLOCK s4;

END BLOCK clocking;

END singular_state_machine;

• Current receives four concurrent assignments

• Current must be resolved; use one_of


Dataflow.state_machines

--States are: 1 = reset, 2 = got1, 3 = got10, 4 = got101

clocking : BLOCK (clk = '1' AND NOT clk'STABLE)

BEGIN

s3: BLOCK (s(3) = '1' AND GUARD)

BEGIN

s(1) <= GUARDED '1' WHEN x = '0' ELSE '0';

s(4) <= GUARDED '1' WHEN x = '1' ELSE '0';

END BLOCK s3;

END BLOCK clocking;

• The last description does not allow multiple active states

• To remedy: use a signal for each state

• State 3 : goes to 1 when x = '0'


goes to 4 when x = '1'

---

Dataflow.state_machines

ARCHITECTURE multiple_state_machine OF detector IS

SIGNAL s : ored_bit_vector (1 TO 4) REGISTER := "1000";

BEGIN

clocking : BLOCK (clk = '1' AND NOT clk'STABLE)

BEGIN

s1: BLOCK (s(1) = '1' AND GUARD)

BEGIN

s(1) <= GUARDED '1' WHEN x = '0' ELSE '0';

s(2) <= GUARDED '1' WHEN x = '1' ELSE '0';

END BLOCK s1;

s2: BLOCK (s(2) = '1' AND GUARD)

BEGIN

s(3) <= GUARDED '1' WHEN x = '0' ELSE '0';

s(2) <= GUARDED '1' WHEN x = '1' ELSE '0';

END BLOCK s2;

s3: BLOCK (s(3) = '1' AND GUARD)

BEGIN

s(1) <= GUARDED '1' WHEN x = '0' ELSE '0';

s(4) <= GUARDED '1' WHEN x = '1' ELSE '0';

END BLOCK s3;

s4: BLOCK (s(4) = '1' AND GUARD)

BEGIN

s(3) <= GUARDED '1' WHEN x = '0' ELSE '0';

s(2) <= GUARDED '1' WHEN x = '1' ELSE '0';

z <= '1' WHEN (s(4) = '1' AND x = '1') ELSE '0';

END BLOCK s4;

s <= GUARDED "0000";

END BLOCK clocking;

END multiple_state_machine;

• S must be resolved vector REGISTER kind

• S <= GUARDED "0000";


Causes removal of retained value upon last disconnection

---

Dataflow.general_state_machines

ENTITY detector_m IS PORT (x,clk : IN BIT; z : OUT BIT); END detector_m;

--

ARCHITECTURE multiple_moore_machine_1 OF detector_m IS

FUNCTION oring( drivers : BIT_VECTOR) RETURN BIT IS

VARIABLE accumulate : BIT := '0';

BEGIN

FOR i IN drivers'RANGE LOOP

accumulate := accumulate OR drivers(i);

END LOOP;

RETURN accumulate;

END oring;

SUBTYPE ored_bit IS oring BIT;

TYPE ored_bit_vector IS ARRAY (NATURAL RANGE <>) OF ored_bit;

TYPE next_table IS ARRAY (1 TO 6, BIT) OF INTEGER;

TYPE out_table IS ARRAY (1 TO 6, BIT) OF BIT;

-- Fill in next_val, out_val, and s arrays

SIGNAL o : ored_bit REGISTER;

BEGIN

clocking : BLOCK (clk = '1' AND (NOT clk'STABLE))

BEGIN

g: FOR i IN s'RANGE GENERATE

si: BLOCK (s(i) = '1' AND GUARD)

BEGIN

s(next_val(i,'0')) <= GUARDED '1' WHEN x='0' ELSE '0';

s(next_val(i,'1')) <= GUARDED '1' WHEN x='1' ELSE '0';

o <= GUARDED out_val(i, x);

END BLOCK si;

s (i) <= GUARDED '0';

END GENERATE;

END BLOCK clocking;

z <= o;

END multiple_moore_machine_1;

• A Moore sequence detector

• Specify transisitions & outputing in constant tables

• Allows multiple machines in one


Dataflow.general_state_machines

---------------------------------------------------------------------

--The folowing tables program the general purpose Moore description--

---------------------------------------------------------------------

-- -- Next States: ----- x=0, x=1 --

CONSTANT next_val : next_table := ( (1 , 2), --S1: -> S1, S2 --

(1 , 3), --S2: -> S1, S3 --

(1 , 4), --S3: -> S1, S4 --

(1 , 1), --S4: -> S1, S1 --

(5 , 6), --S5: -> S5, S6 --

(5 , 6) ); --S6: -> S5, S6 --

-- --

-- -- Output Values: ----- x=0, x=1 --

CONSTANT out_val : out_table := ( ('0' , '0'), --S1: == z=0, 0 --

('0' , '0'), --S2: == z=0, 0 --

('0' , '0'), --S3: == z=0, 0 --

('0' , '0'), --S4: == z=1, 1 --

('0' , '0'), --S5: == z=0, 0 --

('1' , '1') );--S6: == z=1, 1 --

--

-- -- Initial Active States: --

SIGNAL s : ored_bit_vector (1 TO 6) REGISTER := "100010"; --

---------------------------------------------------------------------

---------------------------------------------------------------------

• The next_val constant holds next state values

• The out_val constant holds the output values on the z output

• Initial starting states are set to '1' in the s vector

Dataflow.open_collector

• Resolution functions are used in bussing

• Will use open collector to illustrate


Dataflow.open_collector

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE: qit, "AND"

ENTITY nand2 IS

PORT (a, b : IN qit; y : OUT qit);

CONSTANT tplh : TIME := 10 NS; CONSTANT tphl : TIME := 12 NS;

END nand2;

--

ARCHITECTURE open_output OF nand2 IS

BEGIN

y <= '0' AFTER tphl WHEN (a AND b) = '1' ELSE

'Z' AFTER tplh WHEN (a AND b) = '0' ELSE

'X' AFTER tphl;

END open_output;

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE: qit

ENTITY sn7403 IS

PORT (a1, a2, a3, a4, b1, b2, b3, b4 : IN qit; y1, y2, y3, y4 : OUT qit);

END sn7403;

--

ARCHITECTURE structural OF sn7403 IS

COMPONENT nand2 PORT (a, b : IN qit; y : OUT qit); END COMPONENT;

FOR ALL : nand2 USE ENTITY WORK.nand2 (open_output);

BEGIN

g1: nand2 PORT MAP ( a1, b1, y1 );

g2: nand2 PORT MAP ( a2, b2, y2 );

g3: nand2 PORT MAP ( a3, b3, y3 );

g4: nand2 PORT MAP ( a4, b4, y4 );

END structural;

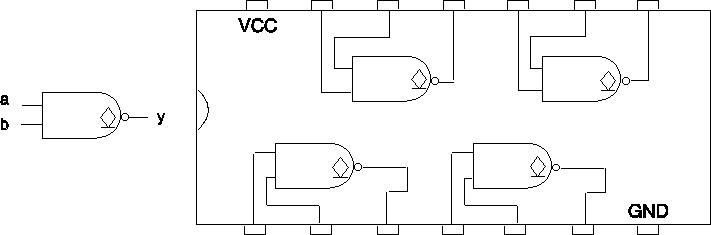

• A two input open collector NAND

• 74LS03 contains 4 open collector NAND gates


Dataflow.open_collector

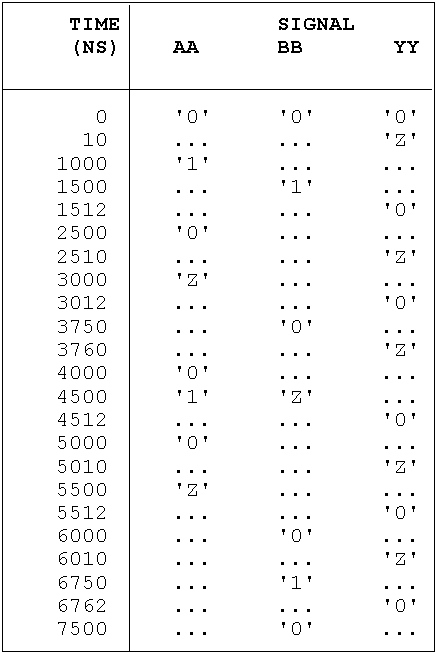

• Simulation verifies open collector

• Output is never '1'


Dataflow.open_collector

• Using 74LS03 for implementing an XNOR

• pull_up3 has two drivers


Dataflow.open_collector

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE: qit, anded_qit

ENTITY test_xnor IS END test_xnor;

--

USE WORK.basic_utilities.ALL;

ARCHITECTURE input_output OF test_xnor IS

COMPONENT sn7403

PORT (a1, a2, a3, a4, b1, b2, b3, b4 : IN qit; y1, y2, y3, y4 : OUT qit);

END COMPONENT;

FOR ALL : sn7403 USE ENTITY WORK.sn7403 (structural);

SIGNAL aa, bb : qit;

SIGNAL pull_up_1, pull_up_2, pull_up_3 : anded_qit := 'Z';

BEGIN

aa <= '1', '0' AFTER 10US, '1' AFTER 30US, '0' AFTER 50US,

'Z' AFTER 60US;

bb <= '0', '1' AFTER 20US, '0' AFTER 40US, 'Z' AFTER 70US;

c1: sn7403 PORT MAP (

aa, bb, pull_up_1, pull_up_2,

aa, bb, bb, aa,

pull_up_1, pull_up_2 , pull_up_3, pull_up_3 );

END input_output;

yy = ( aa' . bb)' . (bb' . aa)' = ( aa Å bb)'

• pull_up_1 and pull_up_2 turn 0,Z to 0,1

• anded_qit resolution function implements wired logic

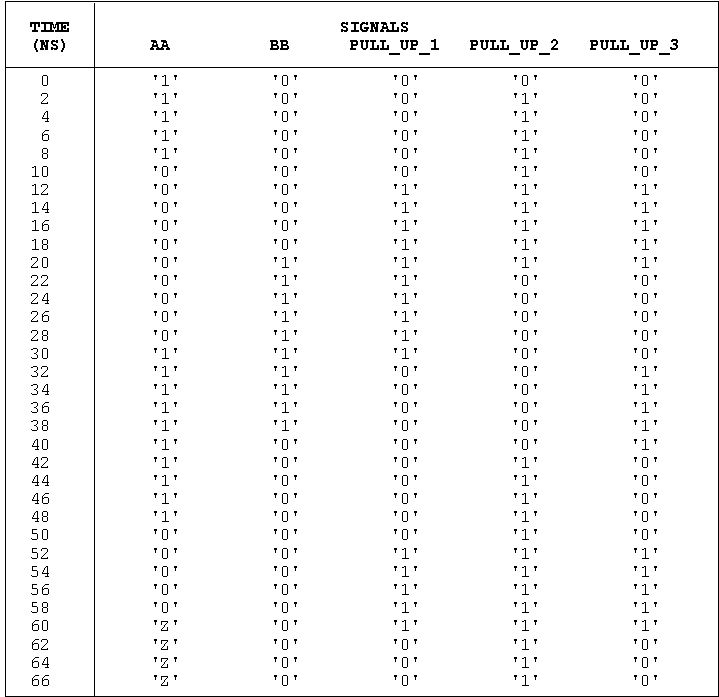

Dataflow.open_collector

• Simulation shows XNOR implementation

• Pull up resolutions turn gate output 'Z' values to '1'

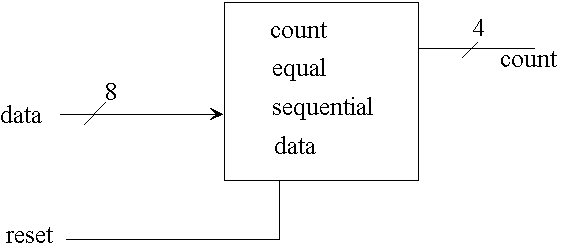

Dataflow.dataflow_example

• Seen dataflow primitives

• Use dataflow for system description

• A sequential comparator example


Dataflow.dataflow_example

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE: bin2int, int2bin

ENTITY sequential_comparator IS

PORT (data : IN BIT_VECTOR (7 DOWNTO 0); clk, reset : IN BIT;

matches : OUT BIT_VECTOR (3 DOWNTO 0));

END sequential_comparator;

--

ARCHITECTURE dataflow OF sequential_comparator IS

FUNCTION inc (x : BIT_VECTOR) RETURN BIT_VECTOR IS

VARIABLE i : INTEGER;

VARIABLE t : BIT_VECTOR (x'RANGE);

BEGIN

bin2int (x, i);

i := i + 1; IF i >= 2**x'LENGTH THEN i := 0; END IF;

int2bin (i, t);

RETURN t;

END inc;

SIGNAL buff : BIT_VECTOR (7 DOWNTO 0);

SIGNAL count : BIT_VECTOR (3 DOWNTO 0);

BEGIN

edge: BLOCK (clk = '0' AND NOT clk'STABLE)

BEGIN

buff <= GUARDED data;

count <= GUARDED "0000" WHEN reset = '1' ELSE

inc (count) WHEN data = buff ELSE

count;

END BLOCK;

matches <= count;

END dataflow;

• inc function is unconstrained

• Save old data in buff

• Compares old and new


Dataflow.dataflow_example

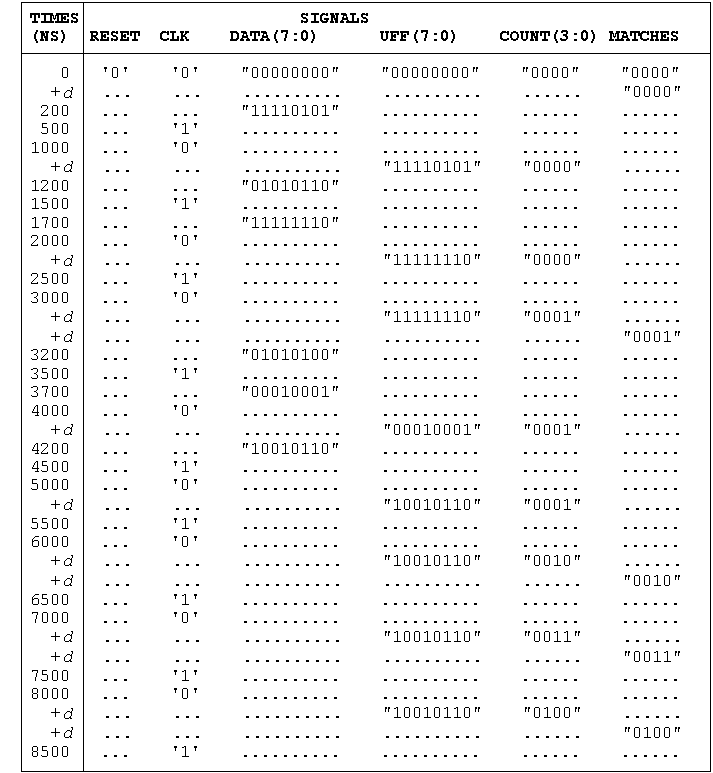

• matches shows count of matching data

• Model gates for load dependent timing

• Timing depends on capacitance

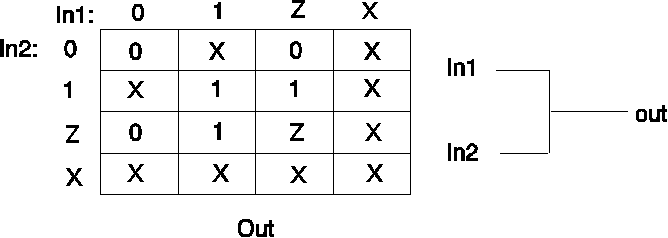

• A resolution function adds all capacitances

• Internal Timing depends on total capacitance at output


• Each port has:


• Logical resolution is wired

• Load resolution is adding

LIBRARY cmos;
USE cmos.basic_utilities.ALL;
PACKAGE added_utilities IS
FUNCTION loading (drivers : capacitance_vector) RETURN capacitance;
SUBTYPE loading_capacitance IS loading capacitance;
TYPE line IS RECORD
logic : wired_qit;
load : loading capacitance;
END RECORD;
END added_utilities;

PACKAGE BODY added_utilities IS
FUNCTION loading (drivers : capacitance_vector) RETURN capacitance IS
VARIABLE load_value : capacitance := 0 ffr;
BEGIN
FOR i IN drivers'RANGE LOOP
load_value := load_value + drivers(i);
END LOOP;
RETURN load_value;
END loading;
END added_utilities;

• Use most of basic_utilities

• Add new types and resolution functions in the added_utilities

USE WORK.added_utilities.ALL;
--
ENTITY nand_2 IS
PORT(in1,in2 : INOUT line; out1 : INOUT line);
END nand_2;
--
ARCHITECTURE load_dependent OF nand_2 IS
CONSTANT pullup : resistance := 15 k_o;
CONSTANT pulldown: resistance := 10 k_o;
BEGIN
in1.load <= 10 ffr; in2.load <= 10 ffr; out1.load <= 2 ffr;
in1.logic <= 'Z' ; in2.logic <= 'Z' ;
outing : PROCESS(in1.logic , in2.logic)
VARIABLE temp_out : qit;
BEGIN
temp_out := in1.logic NAND in2.logic;
IF temp_out = '0' THEN
out1.logic <= '0' AFTER 3 * pulldown * out1.load;
ELSE
IF temp_out = '1' THEN
out1.logic <= '1' AFTER 3 * pullup * out1.load;
ELSE
out1.logic <= temp_out;
END IF;
END IF;
END PROCESS outing;
END load_dependent;

• out1.load is returned by the resolution function

• NAND gate delay depends on total capacitance

USE WORK.added_utilities.ALL;
ENTITY three_nand_system IS END three_nand_system;
--
ARCHITECTURE test OF three_nand_system IS
COMPONENT nand_2
PORT(in1,in2 : INOUT line ; out1 : INOUT line);
END COMPONENT;
SIGNAL a1,b1,b2,b3,q1_out,q2_out,q3_out : line;
BEGIN
b1.logic <= '1'; b2.logic <= '1'; b3.logic <= '1';
a1.logic <= '0', '1' AFTER 100 NS, '0' AFTER 300 NS,
'Z' AFTER 700 NS, 'X' AFTER 800 NS, '1' AFTER 1000 NS;
n1 : nand_2 PORT MAP(a1,b1,q1_out);
n2 : nand_2 PORT MAP(q1_out,b2,q2_out);
n3 : nand_2 PORT MAP(q1_out,b3,q3_out);
END test;

fs a1 b1 b2 b3 q1_out q2_out q3_out
0 (0, 00) (0, 00) (0, 00) (0, 00) (0, 00) (0, 0) (0, 0)
0 (0, 10) (1, 10) (1, 10) (1, 10) (1, 22) (1, 2) (1, 2)
60000 (0, 10) (1, 10) (1, 10) (1, 10) (1, 22) (0, 2) (0, 2)
100000000 (1, 10) (1, 10) (1, 10) (1, 10) (1, 22) (0, 2) (0, 2)
100660000 (1, 10) (1, 10) (1, 10) (1, 10) (0, 22) (0, 2) (0, 2)
100960000 (1, 10) (1, 10) (1, 10) (1, 10) (0, 22) (1, 2) (1, 2)
300000000 (0, 10) (1, 10) (1, 10) (1, 10) (0, 22) (1, 2) (1, 2)
300000105 (0, 10) (1, 10) (1, 10) (1, 10) (1, 22) (1, 2) (1, 2)
300065033 (0, 10) (1, 10) (1, 10) (1, 10) (1, 22) (0, 2) (0, 2)
700000000 (Z, 10) (1, 10) (1, 10) (1, 10) (1, 22) (0, 2) (0, 2)
700660000 (Z, 10) (1, 10) (1, 10) (1, 10) (0, 22) (0, 2) (0, 2)
700960000 (Z, 10) (1, 10) (1, 10) (1, 10) (0, 22) (1, 2) (1, 2)
800000000 (X, 10) (1, 10) (1, 10) (1, 10) (0, 22) (1, 2) (1, 2)
800000000+ (X, 10) (1, 10) (1, 10) (1, 10) (X, 22) (1, 2) (1, 2)
800000000+ (X, 10) (1, 10) (1, 10) (1, 10) (X, 22) (X, 2) (X, 2)
1000000000 (1, 10) (1, 10) (1, 10) (1, 10) (X, 22) (X, 2) (X, 2)
1000660000 (1, 10) (1, 10) (1, 10) (1, 10) (0, 22) (X, 2) (X, 2)
1000960000 (1, 10) (1, 10) (1, 10) (1, 10) (0, 22) (1, 2) (1, 2)

• q1_out is the common node between 3 NAND gates

• Logic values and capacitances at each node are shown

• Timing considers node capacitances


1. Outline: Introduction, Organization, Outline

2. Review: Behavioral description, Using process statements, Top-down design, Using available components, Wiring predefined components, Wiring from bottom to top, Generation of testbench data, Using procedures

3. VHDL_Timing: Modeling requirements, Objects & classes, Signals & variables, Concurrent & sequential assignments, Events, transactions & delta delays, Delay modeling, Sequential placement of transactions, Conventions

4. Structural_Description_of_Hardware: Wiring parts into larger designs, Start with primitives, Wire gates into general purpose components, Use iterative constructs, Generate testbenches, Show binding alternatives, Use gate-based components for a larger design

5. Design_Organization: Subprograms, Packaging, Parameter specification, Parametrization, Top level configuration, Design libraries, A complete example

6. Utilities_for_high_level_descriptions: Language aspects, Types, Over loading subprograms operators, Predefined Attributes, User defined attributes

7. Dataflow: Constructs for dataflow descriptions, Multiplexing and clocking, Multiple assignments, State machines, Open collector gates, A complete dataflow example, Load dependent timing

8. Behavioral_Descriptions: Constructs for sequential descriptions, Assertion for behavioral checks, Handshaking constructs, Timing control, Formatted I/O, MSI parts, A complete MSI based design

9. STANDARDS: MVL9: logic value system, Logic type, Operators, Conversions; VHDL'93: Operators, Delay model, Instantiation, Binding, Attributes, Signal assignments, Report, Postponed process
