• Language aspects

• Types


• Overloading subprogram operators

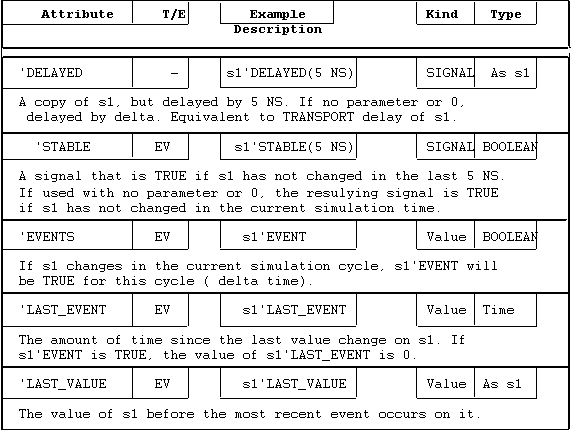

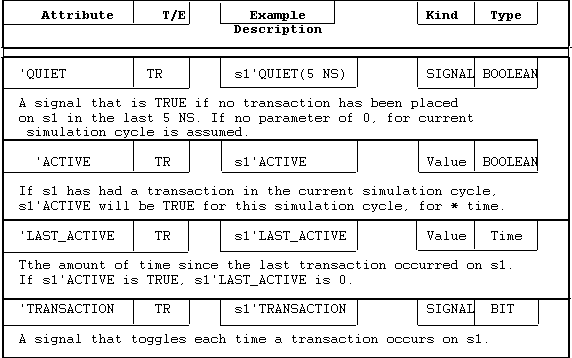

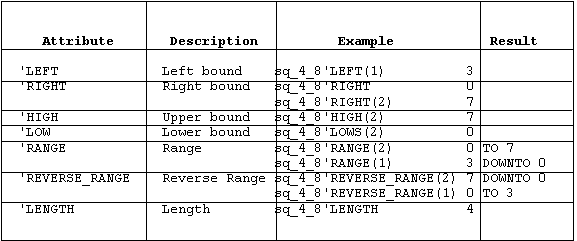

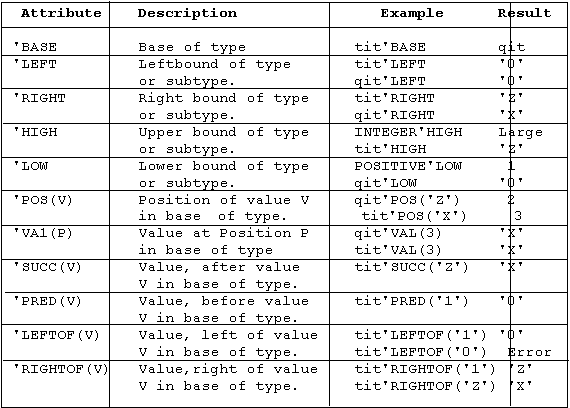

• Predefined Attributes for


• User defined attributes

In General:

• Language aspects will be discussed

• Examples will clarify language aspects

• Hardware related examples are used

• Attributes are important in modeling

Utilities.types.scalars

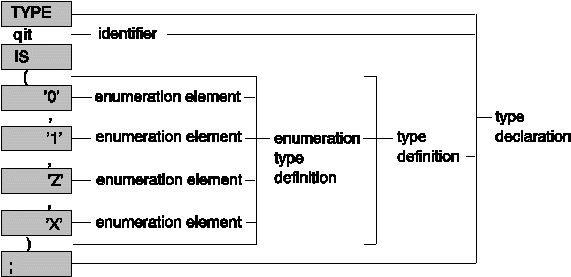

TYPE qit IS ('0', '1', 'Z', 'X');

• New type for multi-value logic system

• qit is type identifier

• '0', '1', 'Z', 'X' are enumeration elements

• This is enumeration type definition

• '0' is default initial values

• Let's assume qit goes in basic_utilities

Utilities.types.scalars

• Can develop logic gates using qit values system

• NOT and NAND tables in qit

USE WORK.basic_utilities.ALL;

ENTITY inv_q IS

GENERIC (tplh : TIME := 5 NS; tphl : TIME := 3 NS);

PORT (i1 : IN qit; o1 : OUT qit);

END inv_q;

--

ARCHITECTURE double_delay OF inv_q IS

BEGIN

o1 <= '1' AFTER tplh WHEN i1 = '0' ELSE

'0' AFTER tphl WHEN i1 = '1' OR i1 = 'Z' ELSE

'X' AFTER tplh;

END double_delay;

USE WORK.basic_utilities.ALL;

ENTITY nand2_q IS

GENERIC (tplh : TIME := 7 NS; tphl : TIME := 5 NS);

PORT (i1, i2 : IN qit; o1 : OUT qit);

END nand2_q;

--

ARCHITECTURE double_delay OF nand2_q IS

BEGIN

o1 <= '1' AFTER tplh WHEN i1 = '0' OR i2 = '0' ELSE

'0' AFTER tphl WHEN (i1 = '1' AND i2 = '1') OR

(i1 = '1' AND i2 = 'Z') OR

(i1 = 'Z' AND i2 = '1') OR

(i1 = 'Z' AND i2 = 'Z') ELSE

'X' AFTER tplh;

END double_delay;

• INV and NAND2 gates using qit

• Use conditional signal assignments

• Double_delay values are used


Utilities.types.scalars

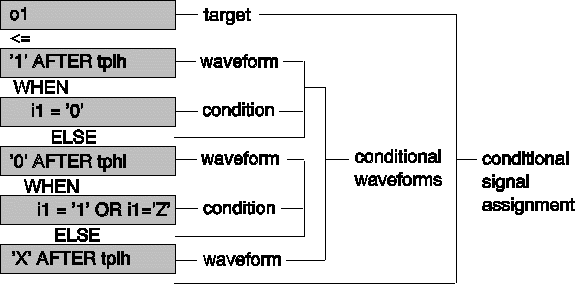

• Syntax for the new constructs

Utilities.types.scalars

USE WORK.basic_utilities.ALL; -- FROM PACKAGE USE : qit

ENTITY inv_rc IS

GENERIC (c_load : REAL := 0.066E-12); -- Farads

PORT (i1 : IN qit; o1 : OUT qit);

CONSTANT rpu : REAL := 25000.0; -- Ohms

CONSTANT rpd : REAL := 15000.0; -- Ohms

END inv_rc;

--

ARCHITECTURE double_delay OF inv_rc IS

CONSTANT tplh : TIME := INTEGER ( rpu * c_load * 1.0E15) * 3 FS;

CONSTANT tphl : TIME := INTEGER ( rpd * c_load * 1.0E15) * 3 FS;

BEGIN

o1 <= '1' AFTER tplh WHEN i1 = '0' ELSE

'0' AFTER tphl WHEN i1 = '1' OR i1 = 'Z' ELSE 'X' AFTER tplh;

END double_delay;

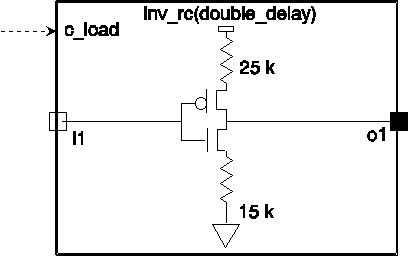

• Other types can be used for signals, constants and variables

• Example shows use of REAL

• Time is calculated from R and C values


Utilities.types.scalars

CONSTANT tplh : TIME := INTEGER (rpu* c_load* 1.0E15)*3 FS;

• REAL rpu multiplied by REAL c_load

• 1.0E15 provides FS scaling

• INTEGER(...) converts REAL to INTEGER

• INTEGER and REAL are closely-related types

• 3*RC is for the exponential delay

Utilities.types.scalars

TYPE capacitance IS RANGE 0 TO 1E16

UNITS

ffr; -- Femto Farads (base unit)

pfr = 1000 ffr;

nfr = 1000 pfr;

ufr = 1000 nfr;

mfr = 1000 ufr;

far = 1000 mfr;

kfr = 1000 far;

END UNITS;

TYPE resistance IS RANGE 0 TO 1E16

UNITS

l_o; -- Milli-Ohms (base unit)

ohms = 1000 l_o;

k_o = 1000 ohms;

m_o = 1000 k_o;

g_o = 1000 m_o;

END UNITS;

• Use physical types for better correspondence

• Capacitance for C values

• Resistance for R values

• Put both type definitions in basic_utilities


Utilities.types.scalars

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE : qit, resistance, capacitance

ENTITY inv_rc IS

GENERIC (c_load : capacitance := 66 ffr);

PORT (i1 : IN qit; o1 : OUT qit);

CONSTANT rpu : resistance := 25000 ohms;

CONSTANT rpd : resistance := 15000 ohms;

END inv_rc;

--

ARCHITECTURE double_delay OF inv_rc IS

CONSTANT tplh : TIME := (rpu / 1 l_o) * (c_load / 1 ffr) * 3 FS / 1000;

CONSTANT tphl : TIME := (rpd / 1 l_o) * (c_load / 1 ffr) * 3 FS / 1000;

BEGIN

o1 <= '1' AFTER tplh WHEN i1 = '0' ELSE

'0' AFTER tphl WHEN i1 = '1' OR i1 = 'Z' ELSE

'X' AFTER tplh;

END double_delay;

• Use physical R and C types

• Equation converts values to their base units

• l_o * ffr requires 10 -18 adjustment


Utilities.type.arrays

TYPE qit_nibble IS ARRAY ( 3 DOWNTO 0 ) OF qit;

TYPE qit_byte IS ARRAY ( 7 DOWNTO 0 ) OF qit;

TYPE qit_word IS ARRAY ( 15 DOWNTO 0 ) OF qit;

TYPE qit_4by8 IS ARRAY ( 3 DOWNTO 0, 0 TO 7 ) OF qit;

TYPE qit_nibble_by_8 IS ARRAY ( 0 TO 7 ) OF qit_nibble;

SIGNAL sq8 : qit_byte := "ZZZZZZZZ";

sq8 <= "Z101000Z";

• Various array types can be based on qit

• Type qit_4by8 is two dimensional

• Type qit_nibble_by_8 is one dimensional of qit_nibble

• qit_4by8 and qit_nibble_by_8 specify different indexings

• String of enumeration elements forms an array

• The sq8 signal is initialized to "ZZZZZZZZ"

• Signal value can consist of a string of enumaration elements

Utilities.type.arrays

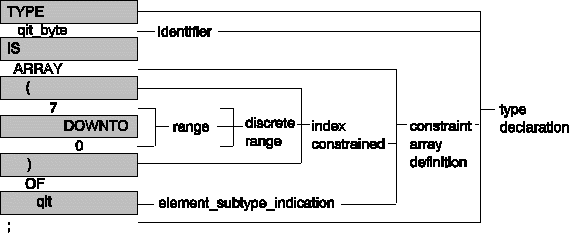

• Syntax of array type declaration


Utilities.type.arrays

TYPE qit_nibble IS ARRAY ( 3 DOWNTO 0 ) OF qit;

TYPE qit_byte IS ARRAY ( 7 DOWNTO 0 ) OF qit;

TYPE qit_word IS ARRAY ( 15 DOWNTO 0 ) OF qit;

TYPE qit_4by8 IS ARRAY ( 3 DOWNTO 0, 0 TO 7 ) OF qit;

TYPE qit_nibble_by_8 IS ARRAY ( 0 TO 7 ) OF qit_nibble;

SIGNAL sq1 : qit;

SIGNAL sq4 : qit_nibble;

SIGNAL sq8 : qit_byte;

SIGNAL sq16 : qit_word;

SIGNAL sq_4_8 : qit_4by8;

SIGNAL sq_nibble_8 : qit_nibble_by_8;

sq8 <= sq16 (11 DOWNTO 4); -- middle 8 bit slice of sq16 to sq8

sq16 (15 DOWNTO 12) <= sq4; -- sq4 into left 4 bit slice of sq16

sq1 <= sq_4_8 (0, 7); -- lower right bit of sq_4_8 to sq1

sq4 <= sq_nibble_8 (2); -- third nibble of sq_nibble_8 into sq4

sq8 <= sq8 (0) & sq8 (7 DOWNTO 1); -- right rotate sq8

sq4 <= sq8 (2) & sq8 (3) & sq8 (4) & sq8 (5); -- reversing sq8 into sq4

• Signal declarations based on defined types

• Examples of signal assignments

• Concatenation operator can be used for shift and rotate

• Direction of indexing must be as declared

Utilities.type.arrays

TYPE qit_nibble IS ARRAY ( 3 DOWNTO 0 ) OF qit;

TYPE qit_byte IS ARRAY ( 7 DOWNTO 0 ) OF qit;

SIGNAL sq4 : qit_nibble;

SIGNAL sq8 : qit_byte;

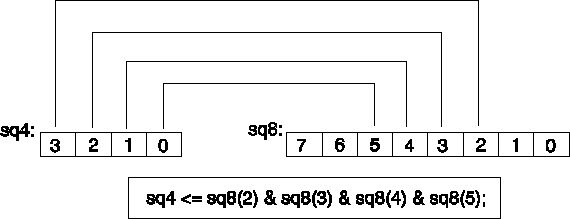

• Use concatenation if reversing is required

Utilities.types.arrays

TYPE qit_4by8 IS ARRAY ( 3 DOWNTO 0, 0 TO 7 ) OF qit;

SIGNAL sq_4_8 : qit_4by8 :=

(

( '0', '0', '1', '1', 'Z', 'Z', 'X', 'X' ), -- sq_4_8 (3, 0 TO 7)

( 'X', 'X', '0', '0', '1', '1', 'Z', 'Z' ), -- sq_4_8 (2, 0 TO 7)

( 'Z', 'Z', 'X', 'X', '0', '0', '1', '1' ), -- sq_4_8 (1, 0 TO 7)

( '1', '1', 'Z', 'Z', 'X', 'X', '0', '0' ) -- sq_4_8 (0, 0 TO 7)

);

• Use nested parenthesis for multidimensional arrays

• Deepest set of parenthesis corresponds to right most index

• Example shows initialization of sq_4_8

• Type of signal is two dimensional qit_4by8

Utilities.types.indexing

TYPE qit_2d IS ARRAY (qit, qit) OF qit;

• Can use enumaration types for indexing

• If qc is a signal of type qit_char,


TYPE qit_char IS ARRAY (CHARACTER) OF qit;

• Then, qc('A') indexes a qit value in the qc array

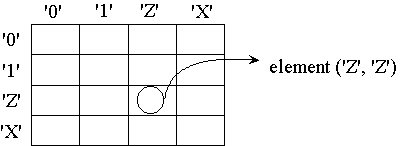

• Use qit for indexing

• Upper left most element is indexed by ('0','0')

• Put qit_2d in basic_utilities

Utilities.types.indexing

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE: qit, qit_2d

ENTITY nand2_q IS

GENERIC (tplh : TIME := 7 NS; tphl : TIME := 5 NS);

PORT (i1, i2 : IN qit; o1 : OUT qit);

END nand2_q;

--

ARCHITECTURE average_delay OF nand2_q IS

CONSTANT qit_nand2_table : qit_2d := (

-- '0' '1' 'Z' 'X'

-- ---------------------------------------------

('1', '1', '1', '1'), -- '0'

('1', '0', '0', 'X'), -- '1'

('1', '0', '0', 'X'), -- 'Z'

('1', 'X', 'X', 'X')); --'X'

BEGIN

o1 <= qit_nand2_table (i1, i2) AFTER (tplh + tphl) / 2;

END average_delay;

• Example shows NAND2 using qit_2d

• Constant values are set according to NAND table

Utilities.arrays.unconstrained

TYPE BIT_VECTOR IS ARRAY (NATURAL RANGE <>) OF BIT;

TYPE integer_vector IS ARRAY (NATURAL RANGE <>) of INTEGER;

• NATURAL is defined in STD 0 TO 2147483047

• BIT_VECTOR is defined in STD

• Can index BIT_VECTOR with any NATURAL range

• We define unconstrained integer_vector


Utilities.arrays.unconstrained

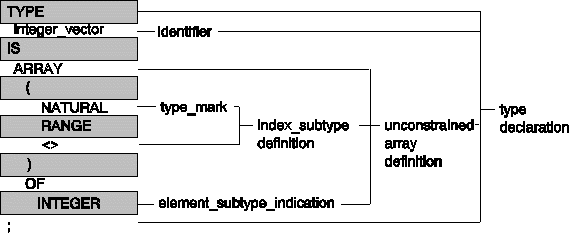

• Syntax details of unconstrained array declarations

Utilities.arrays.unconstrained

PROCEDURE apply_data (

SIGNAL target : OUT BIT_VECTOR;

CONSTANT values : IN integer_vector; CONSTANT period : IN TIME)

IS

VARIABLE buf : BIT_VECTOR (target'RANGE);

BEGIN

FOR i IN values'RANGE LOOP

int2bin (values(i), buf);

target <= TRANSPORT buf AFTER i * period;

END LOOP;

END apply_data;

• Example shows use of unconstrained:


target : BIT_VECTOR

values : integer_vector

• Use 'RANGE to look up passed range

• Range will be determined when procedure is called

Utilities.arrays.unconstrained

• A new unconstrained comparator is shown

• Size of input vectors are not specified

• Comparator length is a'LENGTH

• Size will be determined when instantiated


Utilities.arrays.unconstrained

ENTITY n_bit_comparator_test_bench IS

END n_bit_comparator_test_bench ;

--

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE : apply_data which uses integer_vector

ARCHITECTURE procedural OF n_bit_comparator_test_bench IS

COMPONENT comp_n PORT (a, b : IN bit_vector;

gt, eq, lt : IN BIT;

a_gt_b, a_eq_b, a_lt_b : OUT BIT);

END COMPONENT;

FOR a1 : comp_n USE ENTITY WORK.n_bit_comparator(structural);

SIGNAL a, b : BIT_VECTOR (5 DOWNTO 0);

SIGNAL eql, lss, gtr : BIT;

SIGNAL vdd : BIT := '1';

SIGNAL gnd : BIT := '0';

BEGIN

a1: comp_n PORT MAP (a, b, gnd, vdd, gnd, gtr, eql, lss);

apply_data (a, 00&15&57&17, 500 NS);

apply_data (b, 00&43&14&45&11&21&44&11, 500 NS);

END procedural;

• Testbench applies data to comparator

• SIGNAL a determines size of comparator

• SIGNAL a determines target size of apply_data

• SIGNAL b determines target size of apply_data

• Concatenated integers form integer_vector


Utilities.types.IO

File type declaration:

TYPE logic_data IS FILE OF CHARACTER;

File declaration:

FILE input_logic_value_file : logic_data IS IN "input.dat";

Usage:

READ (input_logic_values_file, x_char);

• Declare a file type indicating type of data

• Declare a file indicating type, mode, logical_name

• Use READ, WRITE, ENDFILE on a declared file


Utilities.types.IO

-- File Type logic_data is Visible

PROCEDURE assign_bits (

SIGNAL target : OUT BIT; file_name : IN STRING; period : IN TIME)

IS

VARIABLE char : CHARACTER;

VARIABLE current : TIME := 0 NS;

FILE input_value_file : logic_data IS IN file_name;

BEGIN

WHILE NOT ENDFILE (input_value_file) LOOP

READ (input_value_file, char);

IF char = '0' OR char = '1' THEN

current := current + period;

IF char = '0' THEN

target <= TRANSPORT '0' AFTER current;

ELSIF char = '1' THEN

target <= TRANSPORT '1' AFTER current;

END IF;

END IF;

END LOOP;

END assign_bits;

• Example shows use of file for data input

• Read character, find binary values, schedule to target

• Using assign_bits in a testbench can be done as:


assign_bits (a_signal, "afile.bit", 1500NS)

---

Utilities.overloading

• VHDL allows Overloading subprograms

• Overloading : Operand types determine exact function

• Use overloading to redefine operators

• Use overloading for various logic values systems

• Use overloading with user defined subprograms

Utilities.overloading

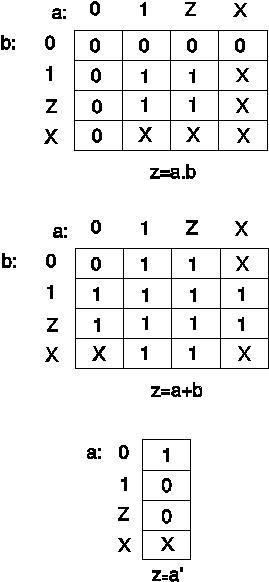

• Use qit AND, OR, NOT table to overload operators

Utilities.overloading

-- Type and subprogram declarations:

TYPE qit IS ('0', '1', 'Z', 'X');

TYPE qit_2d IS ARRAY (qit, qit) OF qit;

TYPE qit_1d IS ARRAY (qit) OF qit;

--

FUNCTION "AND" (a, b : qit) RETURN qit;

FUNCTION "OR" (a, b : qit) RETURN qit;

FUNCTION "NOT" (a : qit) RETURN qit;

-- Subprogram body

FUNCTION "OR" (a, b : qit) RETURN qit IS

CONSTANT qit_or_table : qit_2d := (

('0','1','1','X'),

('1','1','1','1'),

('1','1','1','1'),

('X','1','1','X'));

BEGIN

RETURN qit_or_table (a, b);

END "OR";

--

FUNCTION "NOT" (a : qit) RETURN qit IS

CONSTANT qit_not_table : qit_1d := ('1','0','0','X');

BEGIN

RETURN qit_not_table (a);

END "NOT";

• New AND is called if called with qit operands

• Overload "OR" similarly

• Add to basic_utilities

Utilities.overloading.example

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE: qit, "NOT"

ENTITY inv_q IS

GENERIC (tplh : TIME := 5 NS; tphl : TIME := 3 NS);

PORT (i1 : IN qit; o1 ; OUT qit);

END inv_q;

--

ARCHITECTURE average_delay OF inv_q IS

BEGIN

o1 <= NOT i1 AFTER (tplh + tphl) / 2;

END average_delay;

------------------------------------------------------------

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE: qit, "AND"

ENTITY nand2_q IS

GENERIC (tplh : TIME := 7 NS; tphl : TIME := 5 NS);

PORT (i1, i2 : IN qit; o1 : OUT qit);

END nand2_q;

--

ARCHITECTURE average_delay OF nand2_q IS

BEGIN

o1 <= NOT ( i1 AND i2 ) AFTER (tplh + tphl) / 2;

END average_delay;

• New gates based of qit logic values system

• New gates use overloaded operators

Utilities.overloading

-- Subprogram declaration:

FUNCTION "*" (a : resistance; b : capacitance) RETURN TIME;

-- Subprogram body

FUNCTION "*" (a : resistance; b : capacitance) RETURN TIME IS

BEGIN

RETURN ( ( a / 1 l_o) * ( b / 1 ffr ) * 1 FS ) / 1000;

END "*";

• Overload * to calculate RC time

• Turn resistance to its base unit

• Turn capacitance to its base unit

• FS/1000 compensates for l_o * ffr

Utilities.overloading.example

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE: qit, capacitance, resistance, "*"

ENTITY inv_rc IS

GENERIC (c_load : capacitance := 66 ffr);

PORT (i1 : IN qit; o1 : OUT qit);

CONSTANT rpu : resistance := 25 k_o;

CONSTANT rpd : resistance := 15 k_o;

END inv_rc;

--

USE WORK.basic_utilities.ALL;

ARCHITECTURE double_delay OF inv_rc IS

CONSTANT tplh : TIME := rpu * c_load * 3;

CONSTANT tphl : TIME := rpd * c_load * 3;

BEGIN

o1 <= '1' AFTER tplh WHEN i1 = '0' ELSE

'0' AFTER tphl WHEN i1 = '1' OR i1 = 'Z' ELSE

'X' AFTER tplh;

END double_delay;

• New "*" simplifies calculation of tplh

• Must keep the same order


Utilities.overloading.example

-- Type and subprogram declaration:

TYPE qit IS ('0', '1', 'Z', 'X');

TYPE logic_data IS FILE OF CHARACTER;

PROCEDURE assign_bits ( SIGNAL target : OUT qit;

file_name : IN STRING; period : IN TME);

-- Subprogram body

PROCEDURE assign_bits (

SIGNAL target : OUT qit; file_name : IN STRING; period : IN TIME)

IS

VARIABLE char : CHARACTER;

VARIABLE current : TIME := 0 NS;

FILE input_value_file : logic_data IS IN file_name;

BEGIN

WHILE NOT ENDFILE (input_value_file) LOOP

READ (input_value_file, char);

current := current + period;

CASE char IS

WHEN '0' => target <= TRANSPORT '0' AFTER current;

WHEN '1' => target <= TRANSPORT '1' AFTER current;

WHEN 'Z' | 'z' => target <= TRANSPORT 'Z' AFTER current;

WHEN 'X' | 'x' => target <= TRANSPORT 'X' AFTER current;

WHEN OTHERS => current := current - period;

END CASE;

END LOOP;

END assign_bits;

• Can overload any user defined function

• New assign_bits assigns qits

• A case statement converts characters to qit


Utilities.overloading.example

USE WORK.basic_utilities.ALL;

-- FROM PACKAGE USE: qit, capacitance, resistance, assign_bits (Fig. 6.28)

ENTITY tester IS

END tester;

--

ARCHITECTURE input_output OF tester IS

COMPONENT inv

GENERIC (c_load : capacitance := 11 ffr);

PORT (i1 : IN qit; o1 : OUT qit);

END COMPONENT;

FOR ALL : inv USE ENTITY WORK.inv_rc(double_delay);

SIGNAL a, z : qit;

BEGIN

assign_bits (a, "data.qit", 500 NS);

i1 : inv PORT MAP (a, z);

END input_output;

• Using assign_bits to assign qits to a

• Tester tests inv_rc(double_delay)

Utilities.overloading.example

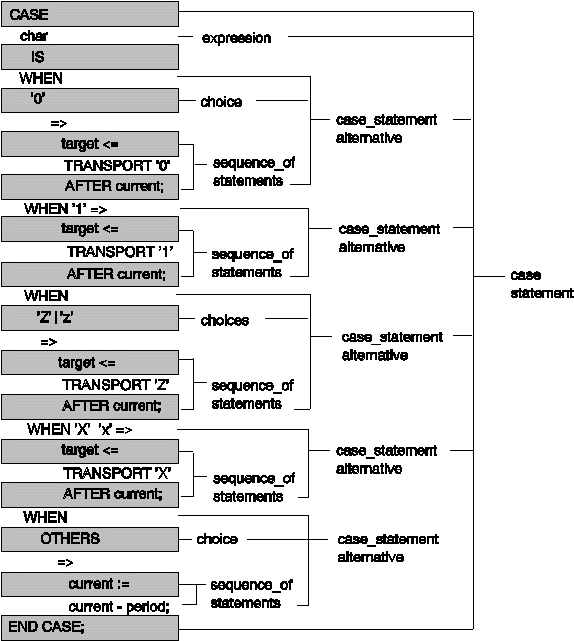

• Syntax of case statement

• OTHERS accounts for all those not mentioned above

Utilities.type_issues

• Subtype

Define subtype of a base type

• Record type

A composite type consisting of elements of other types

• Alias declarations

Used for renaming

---

Utilities.type_issues.subtype

SUBTYPE compatible_nibble_bits IS BIT_VECTOR (3 DOWNTO 0);

TYPE nibble_bits IS ARRAY (3 DOWNTO 0) OF BIT;

SUBTYPE ten_value_logic IS INTEGER RANGE 0 TO 9;

• Subtype of type is fully compatible with type

• compatible_nibble_bits is compatible with any BIT_VECTOR

• nibble_bits is not compatible with BIT_VECTOR

• ten_value_logic is compatible with any INTEGER


Utilities.type_issues.subtype

SUBTYPE tit IS qit RANGE '0' TO 'Z';

SUBTYPE bin IS qit RANGE '0' TO '1';

• tit and bin and qit are fully compatible

• Can assign tit to qit, qit to bin

• Can assign bin to qit, bin to tit


Utilities.type_issues.records

TYPE a_new_record_type IS RECORD

id1, id2 : type_1;

id3 : array_type_2;

id4, id5, id6 : record_type_3;

END RECORD;

• Records and arrays are composite types

• A record type definition creates a record type

• A record contains several element_declarations


Utilities.type_issues.records

TYPE opcode IS (sta, lda, add, sub, and, nop, jmp, jsr);

TYPE mode IS RANGE 0 TO 3

TYPE address IS BIT_VECTOR (10 DOWNTO 0);

TYPE instruction_format IS RECORD

opc : opcode;

mde : mode;

adr : address;

END RECORD;

• Example shows instruction format declarations

• Element types are opcode, mode, and address

• Assume visibility of opcode, mode, and address declarations


Utilities.type_issues.records

TYPE opcode IS (sta, lda, add, sub, and, nop, jmp, jsr);

TYPE mode IS RANGE 0 TO 3

TYPE address IS BIT_VECTOR (10 DOWNTO 0);

--

TYPE instruction_format IS RECORD

opc : opcode;

mde : mode;

adr : address;

END RECORD;

SIGNAL instr : instruction_format := (nop, 0, "00000000000");

instr.opc <= lda;

instr.mde <= 2;

instr.adr <= "00011110000";

. . .

instr <= (lda, 2, "00011110000")

---

• Using instruction_format type, the instr SIGNAL is declared

• Initial values are put in parenthesis

• The order is that of elements in record

• Value assignment can be done to individual elements

• Value assignment can be done to all elements

Utilities.type_issues.records

TYPE line IS RECORD

val : BIT;

load : capacitance;

END RECORD

-- Assume visibility of Resistance, Capacitance and Line (as above)

ENTITY nand_l IS

PORT (i1, i2 : INOUT line; o1 : INOUT line);

END nand_l

--

ARCHITECTURE load_dependent OF nand_l IS

CONSTANT rpu : resistance := 15 k_o;

CONSTANT rpd : resistance := 10 k_o;

BEGIN

i1.load <= 60 ffr;

i2.load <= 70 ffr;

o1.val <= '1' AFTER rpu * o1.load WHEN i1.val AND i2.val = '1' ELSE

'0' AFTER rpd * o1.load;

END load_dependent;

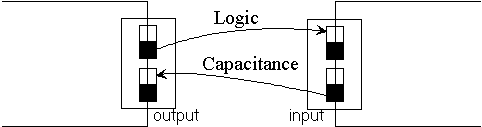

• Example shows load dependent timing calculation

• Inputs report capacitance to outputs

• Output delay is calculated using capacitance at output

• The complete solution is more involved than the above


Utilities.type_issues.aliasing

ALIAS c_flag : BIT IS flag_register (3);

ALIAS v_flag : BIT IS flag_register (2);

ALIAS n_flag : BIT IS flag_register (1);

ALIAS z_flag : BIT IS flag_register (0);

• Alias declaration selects part of an object

• Use for renaming, for convenience

• Can be used on the right hand side and the left hand side

Utilities.type_issues.aliasing

ALIAS page :

BIT_VECTOR (2 DOWNTO 0) IS instr.adr (10 DOWNTO 8);

ALIAS offset :

BIT_VECTOR (7 DOWNTO 0) IS instr.adr (7 DOWNTO 0);

page <= "001"; -- 3 bits

offset <= X"F1"; -- 8 bits

offset <= B"1111_0001"; -- 8 bits

• Use aliasing to separately name page and offset

• All references to page refer to 10:8 of address

• All references to offset refer to 7:0 of address

• Hex and equivalent Binary strings are shown

• X, B, and O are called base identifier

• Use _ for separation

Utilities.attributes.predefined

array_or_type_or_signal_name'ATTRIBUTE_NAME

• Three types of attributes

• Attributes for arrays

• Attributes for types

• Attributes for signals

• Pronounce ' as tick

Utilities.attributes.predefined.arrays

TYPE qit_4by8 IS ARRAY (3 DOWNTO 0, 0 TO 7) OF qit;

SIGNAL sq_4_8 : qit_4by8;

• 'RANGE and 'LENGTH have been introduced

• Examples refer to sq_4_8 array signal

• Follow attribute by ( ) to specify index


Utilities.attributes.predefined.type

TYPE qit IS ('0', '1', 'Z', 'X');

SUBTYPE tit IS qit RANGE '0' TO 'Z';

• Type attribute, example refersto qit and tit

Utilities.attributes.predefined.type

FOR the enumeration types:

'PRED 'LEFTOF

'SUCC 'RIGHOF

'LEFT 'LOW

'RIGHT 'HIGH

• Position wise, enumeration elements are in ascending order

• For types with ascending range low to high is left to right

• Above pairs are equivalent for enumeration types


Utilities.attributes.predefined.signal

SIGNAL s1 : BIT;

• All examples refer to s1 as above

Utilities.attributes.predefined.signal

SIGNAL s1 : BIT;

• All examples refer to s1 as above


Utilities.attributes.predefined.signal

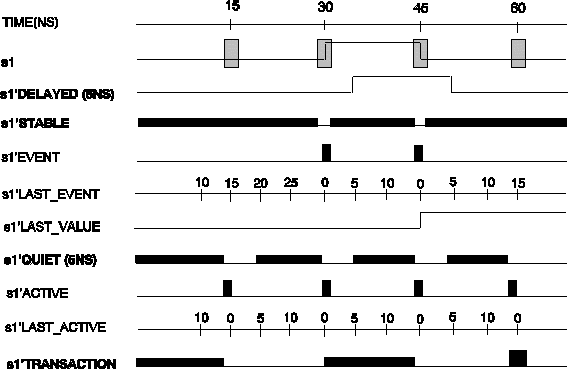

• Signal attribute examples

• Attributes resulting in signal are in bold

• Attributes resulting in BIT are

• Attributes resulting in BOOLEAN are


Utilities.attributes.predefined.signal

ENTITY find_out IS END find_out;

--

ARCHITECTURE comparing OF find_out IS

SIGNAL c, x1, x2, diff : BIT :='0';

BEGIN

c <= '0', '1' AFTER 60 NS, '0' AFTER 120 NS;

x1 <= '1' AFTER 6 NS WHEN c'EVENT ELSE x1;

x2 <= '1' AFTER 6 NS WHEN NOT c'STABLE ELSE x2;

diff <= x1 XOR x2;

END comparing

ns c x1 x2 diff c'STABLE

-------------------------------------

0 0 0 0 0 true

60 1 0 0 0 false

60+d 1 0 0 0 true

66 1 1 0 0 true

66+d 1 1 0 1 true

120 0 1 0 1 false

120+d 0 1 0 1 true

• c'EVENT is value

• c'STABLE is signal

• c'STABLE changes twice for a change on c

Utilities.attributes.predefined.signal

ENTITY brief_d_flip_flop IS

PORT (d, c : IN BIT; q : OUT BIT);

END brief_d_flip_flop;

--

ARCHITECTURE falling_edge OF brief_d_flip_flop IS

SIGNAL tmp : BIT;

BEGIN

tmp <= d WHEN (c = '0' AND NOT c'STABLE) ELSE tmp;

q <= tmp AFTER 8 NS;

END falling_edge;

• Example shows a falling edge d_flip_flop


Utilities.attributes.predefined.signal

ENTITY brief_t_flip_flop IS

PORT (t : IN BIT; q : OUT BIT);

END brief_t_flip_flop;

--

ARCHITECTURE toggle OF brief_t_flip_flop IS

SIGNAL tmp : BIT;

BEGIN

tmp <= NOT tmp WHEN (

(t = '0' AND NOT t' STABLE) AND (t'DELAYED' STABLE(20 NS))

) ELSE tmp;

q <= tmp AFTER 8 NS;

END toggle;

• T flipflop toggles when pulse on t > 20 NS

• t = '0' AND NOT t'STABLE checks fall on t

• t' DELAYED'STABLE (20 NS) check for 20 NS before fall

• t'DELAYED is attributed because it is signal


Utilities.attributes.user_defined

CAN ATTRIBUTE:

ENTITY ARCHITECTURE CONFIGURATION

PROCEDURE FUNCTION PACKAGE

TYPE SUBTYPE CONSTANT

SIGNAL VARIABLE COMPONENT

LABEL

• Can give user_defined attributes to an entity class

• Needs attribute declaration

• Needs attribute specification

Utilities.attributes.user_defined

ATTRIBUTE sub_dir : STRING;

. . .

ATTRIBUTE sub_dir OF brief_d_flip_flop : ENTITY IS "/user/vhdl";

ATTRIBUTE del_val : TIME;

. . .

ATTRIBUTE del_val of s : SIGNAL IS 5 NS;

• An attribute must be declared before it can be specified

• Declaration and specification have different syntax

• sub_dir is declared

• Attribute is specified for:


ENTITY brief_d_flip_flop

• del_val is declared

• Attribute is specified for:


SIGNAL s

---

Utilities.attributes.user_defined

PACKAGE utility_attributes IS

TYPE timing IS RECORD

rise, fall : TIME;

END RECORD;

ATTRIBUTE delay : timing;

ATTRIBUTE sub_dir : STRING;

END utility_attributes;

--

USE WORK.utility_attributes.ALL;

-- FROM PACKAGE USE: delay, sub_dir

ENTITY brief_d_flip_flop IS

PORT (d, c : IN BIT; q : OUT BIT);

ATTRIBUTE sub_dir OF brief_d_flip_flop : ENTITY IS "/user/vhdl";

ATTRIBUTE delay OF q : SIGNAL IS (8 NS, 10 NS);

END brief_d_flip_flop;

--

ARCHITECTURE attributed_falling_edge OF brief_d_flip_flop IS

SIGNAL tmp : BIT;

BEGIN

tmp <= d WHEN ( c = '0' AND NOT c' SATBLE ) ELSE tmp;

q <= '1' AFTER q'delay.rise WHEN tmp = '1' ELSE

'0' AFTER q'delay.fall;

END attributed_falling_edge;

• Assume utility_attributes is visible

• Two examples of attributes are shown

Utilities.package

PACKAGE basic_utilities IS

TYPE qit IS ('0', '1', 'Z', 'X');

TYPE qit_2d IS ARRAY (qit, qit) OF qit;

TYPE qit_1d IS ARRAY (qit) OF qit;

TYPE qit_vector IS ARRAY (NATURAL RANGE <>) OF qit;

SUBTYPE tit IS qit RANGE '0' TO 'Z';

TYPE tit_vector IS ARRAY (NATURAL RANGE <>) OF tit;

TYPE integer_vector IS ARRAY (NATURAL RANGE <>) OF INTEGER;

TYPE logic_data IS FILE OF CHARACTER;

TYPE capacitance IS RANGE 0 TO 1E16

UNITS

ffr; -- Femto Farads (base unit)

pfr = 1000 ffr;

nfr = 1000 pfr;

ufr = 1000 nfr;

mfr = 1000 ufr;

far = 1000 mfr;

kfr = 1000 far;

END UNITS;

TYPE resistance IS RANGE 0 TO 1E16

UNITS

l_o; -- Milli-Ohms (base unit)

ohms = 1000 l_o;

k_o = 1000 ohms;

m_o = 1000 k_o;

g_o = 1000 m_o;

END UNITS;

FUNCTION fgl (w, x, gl : BIT) RETURN BIT;

FUNCTION feq (w, x, eq : BIT) RETURN BIT;

PROCEDURE bin2int (bin : IN BIT_VECTOR; int : OUT INTEGER);

PROCEDURE int2bin (int : IN INTEGER; bin : OUT BIT_VECTOR);

PROCEDURE apply_data (

SIGNAL target : OUT BIT_VECTOR;

CONSTANT values : IN integer_vector; CONSTANT period : IN TIME);

PROCEDURE assign_bits (

SIGNAL s : OUT BIT; file_name : IN STRING; period : IN TIME);

PROCEDURE assign_bits (

SIGNAL s : OUT qit; file_name : IN STRING; period : IN TIME);

FUNCTION "AND" (a, b : qit) RETURN qit;

FUNCTION "OR" (a, b : qit) RETURN qit;

FUNCTION "NOT" (a : qit) RETURN qit;

FUNCTION "*" (a : resistance; b : capacitance) RETURN TIME;

END basic_utilities;

• Continuing development of basis_utilities

• Use LFSR for pseudo random bit generation

• Use for signature analysis

• Design an unconstrained configurable LFSR

• Pass polynomial via generics

• Pass seed via generics

• Associate parallel output to determine size

• Will use simple gates for the design of LFSR


ENTITY inv_t IS
GENERIC (tplh : TIME := 5 NS; tphl : TIME := 3 NS);
PORT (i1 : IN BIT := '1'; o1 : OUT BIT := '1');
END inv_t;

ARCHITECTURE average_delay OF inv_t IS
BEGIN
o1 <= NOT i1 AFTER (tplh + tphl) /2;
END average_delay;

ENTITY nand2_t IS
GENERIC (init : BIT; tplh : TIME := 6 NS; tphl : TIME := 4 NS);
PORT (i1, i2 : IN BIT := '1'; o1 :OUT BIT := init);
END nand2_t;

ARCHITECTURE average_delay OF nand2_t IS
BEGIN
o1 <= i1 NAND i2 AFTER (tplh + tphl) / 2;
END average_delay;

ENTITY xor_t IS
GENERIC (tplh : TIME := 6 NS; tphl : TIME := 4 NS);
PORT (i1, i2 : IN BIT; o1 : OUT BIT);
END xor_t;

ARCHITECTURE average_delay OF xor_t IS
BEGIN
o1 <= i1 xor i2 AFTER (tplh + tphl) / 2;
END average_delay;

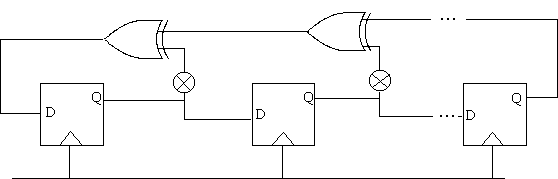

• An LFSR design based on simple gates

• NAND gate includes initial value

• Initialization will be done for stabilizing latches


ENTITY sr_latch IS
GENERIC (init_q : BIT);
PORT (s, r, clk : IN BIT; q, qbar : OUT BIT);
END sr_latch;
--
ARCHITECTURE gate_level OF sr_latch IS
COMPONENT n2
GENERIC (init : BIT; tplh : TIME := 6 NS; tphl : TIME := 4 NS);
PORT (i1, i2 : IN BIT; o1 : OUT BIT);
END COMPONENT;
SIGNAL im1, im2, im3, im4 : BIT;
BEGIN
g1 : n2 GENERIC MAP (init => '1') PORT MAP (s, clk, im1);
g2 : n2 GENERIC MAP (init => '1') PORT MAP (r, clk, im2);
g3 : n2 GENERIC MAP (init => init_q) PORT MAP (im1, im4, im3);
g4 : n2 GENERIC MAP (init => NOT init_q) PORT MAP (im3, im2, im4);
q <= im3;
qbar <= im4;
END gate_level;

• Build latch with four NAND gates

• The g3 and g4 gates form the cross-coupled structure

• init_q and NOT init_q for q and q_bar outputs

• Only init generic of NAND is given a value

• All other generics assume OPEN

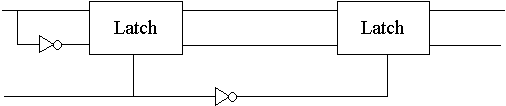

• Use two latches in a master_slave DFF

• Complement clock for slave


ENTITY LFSR IS
GENERIC (seed, poly : BIT_VECTOR);
PORT (clk : IN BIT; parallel : OUT BIT_VECTOR; serial : OUT BIT);
END LFSR;
--
ARCHITECTURE hardware OF LFSR IS
COMPONENT df
GENERIC (init : BIT); PORT (d,clk : IN BIT;q : OUT BIT);
END COMPONENT;
COMPONENT x PORT (i1, i2 : IN BIT; o1 : OUT BIT);
END COMPONENT;
SIGNAL ims : BIT_VECTOR (poly'RANGE);
SIGNAL ins : BIT_VECTOR (seed'RANGE);
CONSTANT index1 : INTEGER := poly'LEFT;
CONSTANT index2 : INTEGER := poly'RIGHT;
CONSTANT index3 : INTEGER := seed'LEFT;
CONSTANT index4 : INTEGER := seed'RIGHT;
BEGIN
ins (index4) <= ims (index2); ims (index1) <= ins (index3);
e1 : FOR i IN (poly'LENGTH - 2) DOWNTO 0 GENERATE
di : df GENERIC MAP (seed (i)) PORT MAP (ims (i), clk, ims (i+1));
END GENERATE;
e2 : FOR j IN (poly'LENGTH - 2) DOWNTO 1 GENERATE
e3 : IF (poly (j) = '1') GENERATE
fb : x PORT MAP (ims (j), ins (j), ins (j-1));
END GENERATE;
e4:IF (poly (j) = '0') GENERATE ins (j-1) <= ins (j);
END GENERATE;
END GENERATE;
serial <= ims (ims'RIGHT); parallel <= ims;
END hardware;

• Use DFF and XOR for LFSR

• Generate statements build LFSR

• Seed is passed to init values

• Polynomial determines XOR connections


USE WORK.ALL;
--
CONFIGURATION randomgenerating OF LFSR IS
FOR hardware
FOR e1
FOR di : df
USE ENTITY WORK.Dflipflop(sr_based);
FOR sr_based
FOR c1,c3 : sr USE ENTITY WORK.sr_latch(gate_level);
FOR gate_level
FOR ALL : n2 USE ENTITY WORK.nand2_t(average_delay);
END FOR;
END FOR;
END FOR;
FOR c2, c4 : n1 USE ENTITY WORK.inv_t(average_delay);
END FOR;
END FOR;
END FOR;
END FOR; -- e1
FOR e2
FOR e3
FOR fb : x USE ENTITY WORK.xor_t(average_delay);
END FOR;
END FOR; -- e3
END FOR; -- e2
END FOR;
END randomgenerating;

• Configuration declaration binds all sub components

ENTITY LFSR_testbench IS
END LFSR_testbench;
--
ARCHITECTURE structural OF LFSR_testbench IS
COMPONENT rng
GENERIC(seed,poly : BIT_VECTOR);
PORT(clk : IN BIT;parallel :OUT BIT_VECTOR(0 to 4); serial :OUT BIT);
END COMPONENT;
FOR random_number_generator:rng
USE CONFIGURATION WORK.randomgenerating;
SIGNAL p : BIT_VECTOR(0 TO 4);
SIGNAL clk,s : BIT;
BEGIN
random_number_generator : rng
GENERIC MAP("1101","11011")
PORT MAP(clk,p,s);
clk <=NOT clk AFTER 100 NS;
END structural;

• Testbench shows a simple usage

• Generic map determines seed and polynomial

• Instantiating rng generates random bits on s

• Random parallel vector is generate on p

1. Outline: Introduction, Organization, Outline

2. Review: Behavioral description, Using process statements, Top-down design, Using available components, Wiring predefined components, Wiring from bottom to top, Generation of testbench data, Using procedures

3. VHDL_Timing: Modeling requirements, Objects & classes, Signals & variables, Concurrent & sequential assignments, Events, transactions & delta delays, Delay modeling, Sequential placement of transactions, Conventions

4. Structural_Description_of_Hardware: Wiring parts into larger designs, Start with primitives, Wire gates into general purpose components, Use iterative constructs, Generate testbenches, Show binding alternatives, Use gate-based components for a larger design

5. Design_Organization: Subprograms, Packaging, Parameter specification, Parametrization, Top level configuration, Design libraries, A complete example

6. Utilities_for_high_level_descriptions: Language aspects, Types, Over loading subprograms operators, Predefined Attributes, User defined attributes

7. Dataflow: Constructs for dataflow descriptions, Multiplexing and clocking, Multiple assignments, State machines, Open collector gates, A complete dataflow example, Load dependent timing

8. Behavioral_Descriptions: Constructs for sequential descriptions, Assertion for behavioral checks, Handshaking constructs, Timing control, Formatted I/O, MSI parts, A complete MSI based design

9. STANDARDS: MVL9: logic value system, Logic type, Operators, Conversions; VHDL'93: Operators, Delay model, Instantiation, Binding, Attributes, Signal assignments, Report, Postponed process
