Structural_Description_of_Hardware

• Wiring components into larger designs

• Start with primitives

• Gates as library part

• Wire gates into general purpose components

• Use iterative constructs

• Generate test benches

• Show binding alternatives

• Use gate-based components for a larger design

• Examples include

• Basic gates

• Single bit comparator

• n-bit comparator

• Latch design: 1 bit SR-latch, a D-latch, a 4 bit D-latch

• An old-new comparator

Structural_specification.basic_components

• Three basic components are used

• Will use as the basic components of several designs

• A graphical notation helps clarify wiring


Structural...basic_components.syntax_details

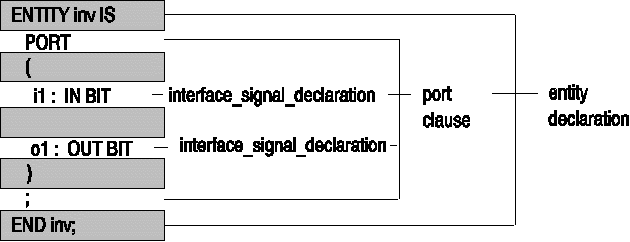

• Figure shows syntax of inv

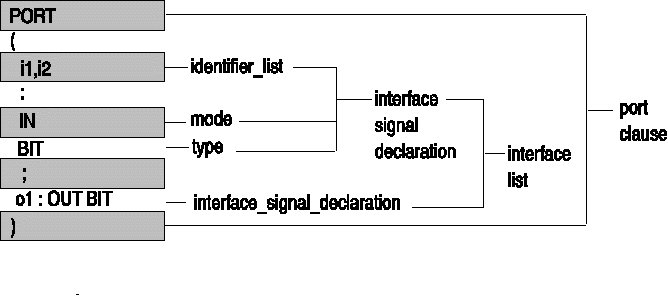

• Figure shows port clause of nand2

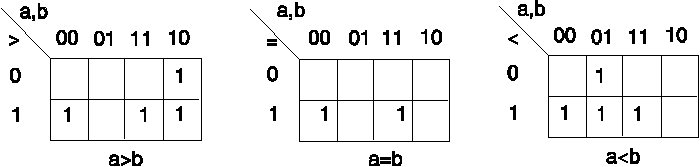

Structural...single_bit_comparator.logic_design

• A cascadable bit comparator

• When a > b the a_gt_b becomes 1

• When a < b the a_lt_b becomes 1

• If a = b outputs become the same as corresponding inputs

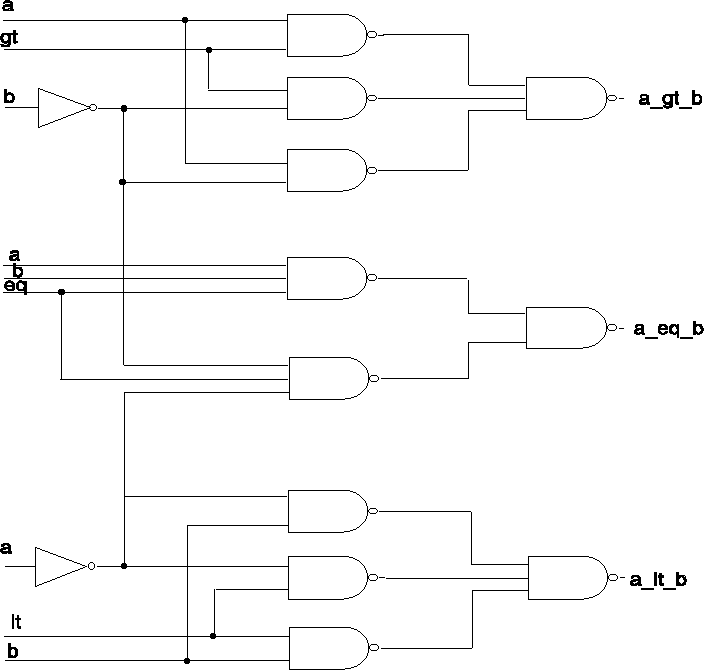

Structural...single bit comparator.logic_design

• Logic design uses our basic components

• The less-than and greater-than outputs use the same logic

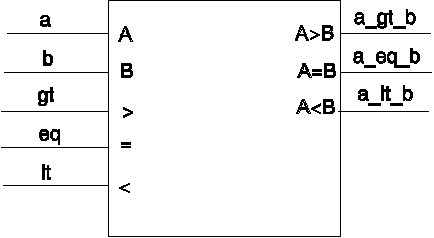

Structural...single_bit_comparator.aspect_notation

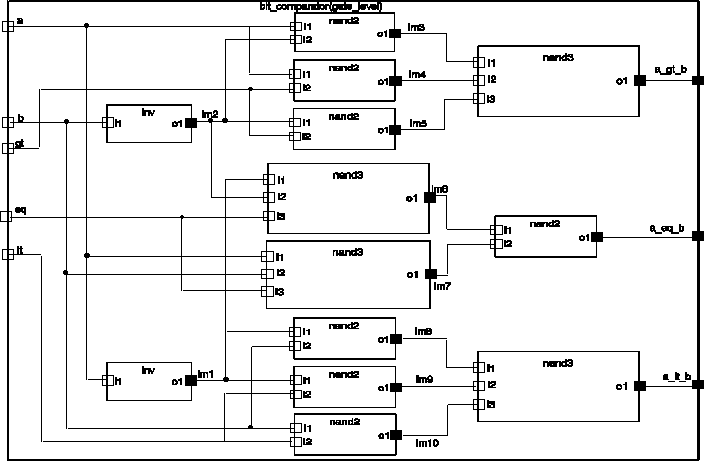

• Interface aspect and composition aspect help clarify wiring


ENTITY bit_comparator IS
PORT (a, b, -- data inputs
gt, -- previous greater than
eq, -- previous equal
lt : IN BIT; -- previous less than
a_gt_b, -- greater
a_eq_b, -- equal
a_lt_b : OUT BIT); -- less than
END bit_comparator;

--

• VHDL description consists of an entity and an architecture

• Interface description is done by the entity declaration

• Description of the operation will be given in the architecture

• Signal names of interface and composition aspects are used


Structural...single_bit_comparator.description

--

• Architecture completes the VHDL description

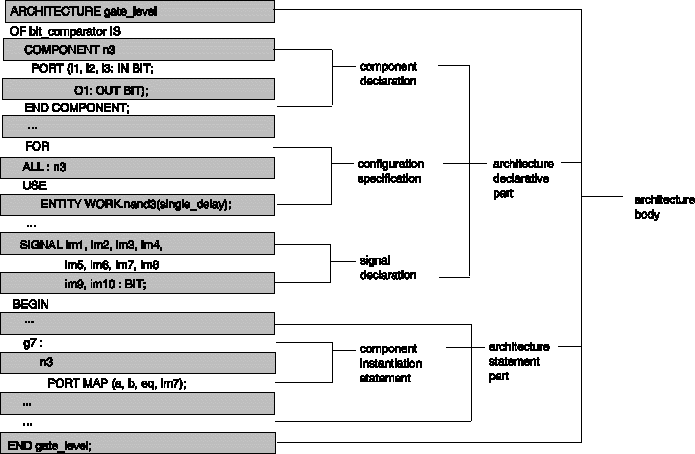

Structural...single_bit_comparator.syntax_details

• Syntax details shows syntax of architecture declaration and statement part


Structural...iterative_wiring.logic_diagram

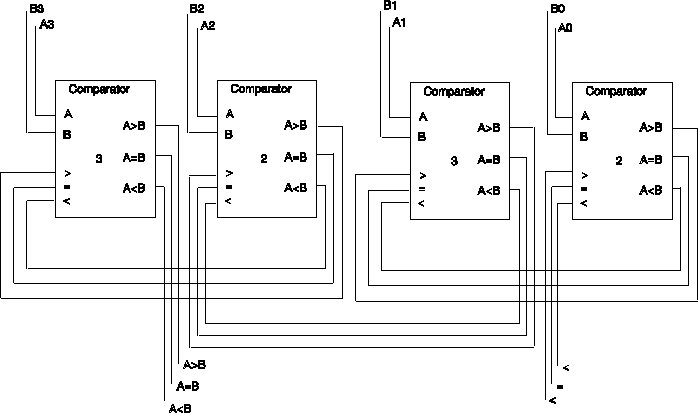

• Cascading single bit into a four bit comparator

• Least significant control inputs control outputs when A=B


Structural...iterative_wiring.logic_diagram

3 2 1 0

_______________________________________________________

A: 0 1 0 0 result propagates from bit 1

B: 0 1 1 0

_______________________________________________________

A: 1 0 1 1 bit 3 produces the result immediately

B: 0 0 1 1

_______________________________________________________

---

• Results propagate from least to most

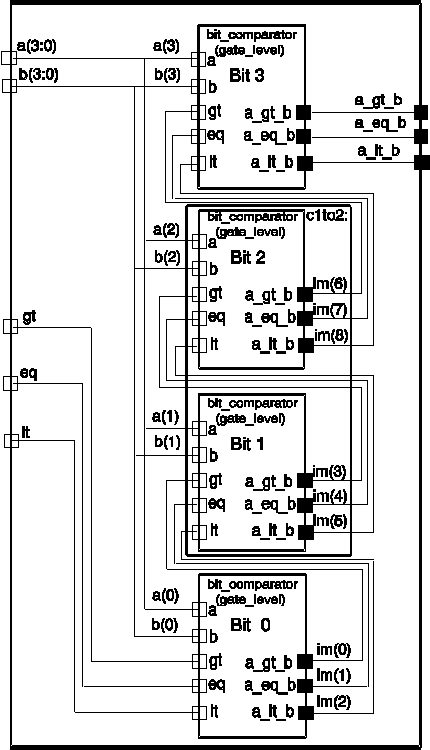

Structural...iterative_wiring.aspect_notation

<

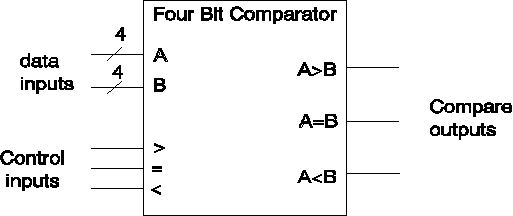

• Cascading single bit into a four bit comparator

• Signal names inside the box are visible in the architecture

Structural...iterative_wiring.aspect_notation

• Aspect notation shows VHDL wiring

• VHDL description will use same intermediate signal names


ENTITY nibble_comparator IS
PORT (a, b : IN BIT_VECTOR (3 DOWNTO 0); -- a and b data inputs
gt, -- previous greater
eq, -- previous equal
lt : IN BIT; -- previous less than
a_gt_b, -- a > b
a_eq_b, -- a = b
a_lt_b : OUT BIT); -- a < b
END nibble_comparator;
--
ARCHITECTURE iterative OF nibble_comparator IS
COMPONENT comp1
PORT (a, b, gt, eq, lt : IN BIT; a_gt_b, a_eq_b, a_lt_b : OUT BIT);
END COMPONENT;
FOR ALL : comp1 USE ENTITY WORK.bit_comparator (gate_level);
SIGNAL im : BIT_VECTOR ( 0 TO 8);
BEGIN
c0: comp1 PORT MAP (a(0), b(0), gt, eq, lt, im(0), im(1), im(2));
c1to2: FOR i IN 1 TO 2 GENERATE
c: comp1 PORT MAP (a(i), b(i), im(i*3-3), im(i*3-2), im(i*3-1),
im(i*3+0), im(i*3+1), im(i*3+2) );
END GENERATE;
c3: comp1 PORT MAP (a(3), b(3), im(6), im(7), im(8),
a_gt_b, a_eq_b, a_lt_b);
END iterative;

• Use BIT_VECTOR for data inputs

• Separate first and last bits from others

• Arrays for intermediate signals facilitate iterative wiring

• Can easily expand to an n-bit comparator


Structural...iterative_wiring.VHDL_description

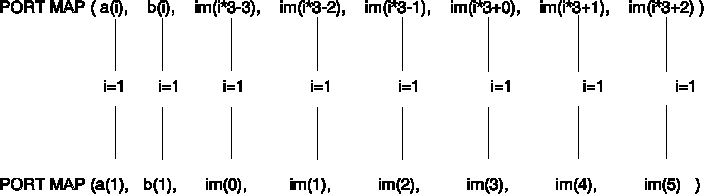

• Figure shows mapping when c=1

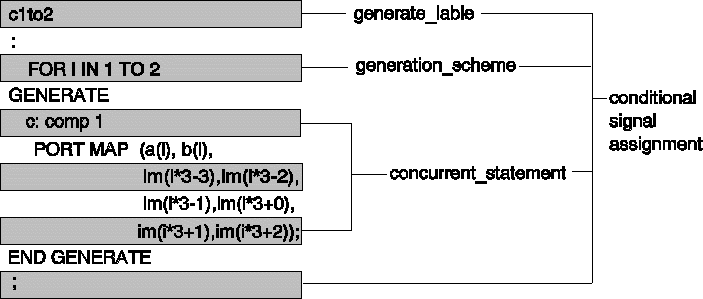

Structural...iterative_wiring.syntax_details

• Generate statement syntax

• Generate statement is a concurrent statement

• Generate statement brackets concurrent statements


Structural...iterative_wiring.VHDL_description

• Architecture replaces the previous one with the same name

• This forms an n bit comparator

• Size depends on n only

• Use IF-Generate scheme as well as FOR scheme

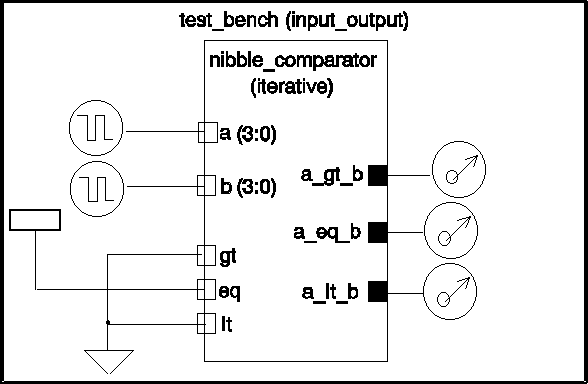

Structural...test_bench.test_environment

• Aspect notation of a testbench is shown

• Testbench applies random data to A & B inputs

• Control inputs configure comparator FOR A>B, A=B, A<B

• Three outputs are monitored


Structural...testbench.VHDL_description

ARCHITECTURE input_output OF nibble_comparator_test_bench IS

COMPONENT comp4 PORT (a, b : IN bit_vector (3 DOWNTO 0);

a_gt_b, a_eq_b, a_lt_b : IN BIT;

a_gt_b_out, a_eq_b_out, a_lt_b_out : OUT BIT);

END COMPONENT;

FOR a1 : comp4 USE ENTITY WORK.nibble_comparator(iterative);

SIGNAL a, b : BIT_VECTOR (3 DOWNTO 0);

SIGNAL eql, lss, gtr, gnd : BIT; SIGNAL vdd : BIT := '1';

BEGIN

a1: comp4 PORT MAP (a, b, gnd, vdd, gnd, gtr, eql, lss);

a2: a <= "0000", ---- a = b (steady state)

"1111" AFTER 0500 NS, -- a > b (worst case)

"1110" AFTER 1500 NS, -- a < b (worst case)

"1110" AFTER 2500 NS, -- a > b (need bit 1 info)

"1010" AFTER 3500 NS, -- a < b (need bit 2 info)

"0000" AFTER 4000 NS, -- a < b (steady state, prepare for next)

"1111" AFTER 4500 NS, -- a = b (worst case)

"0000" AFTER 5000 NS, -- a < b (need bit 3 only, best case)

"0000" AFTER 5500 NS, -- a = b (worst case)

"1111" AFTER 6000 NS; -- a > b (need bit 3 only, best case)

a3 : b <= "0000", ---- a = b (steady state)

"1110" AFTER 0500 NS, -- a > b (worst case)

"1111" AFTER 1500 NS, -- a < b (worst case)

"1100" AFTER 2500 NS, -- a > b (need bit 1 info)

"1100" AFTER 3500 NS, -- a < b (need bit 2 info)

"1101" AFTER 4000 NS, -- a < b (steady state, prepare for next)

"1102" AFTER 4500 NS, -- a = b (worst case)

"1103" AFTER 5000 NS, -- a < b (need bit 3 only, best case)

"1104" AFTER 5500 NS, -- a = b (worst case)

"1105" AFTER 6000 NS; -- a > b (need bit 3 only, best case)

END input_output;

• A=1111, B=1110 @ 500 NS tests for worst case

• Best delay occurs at 5000 NS or 6000 NS

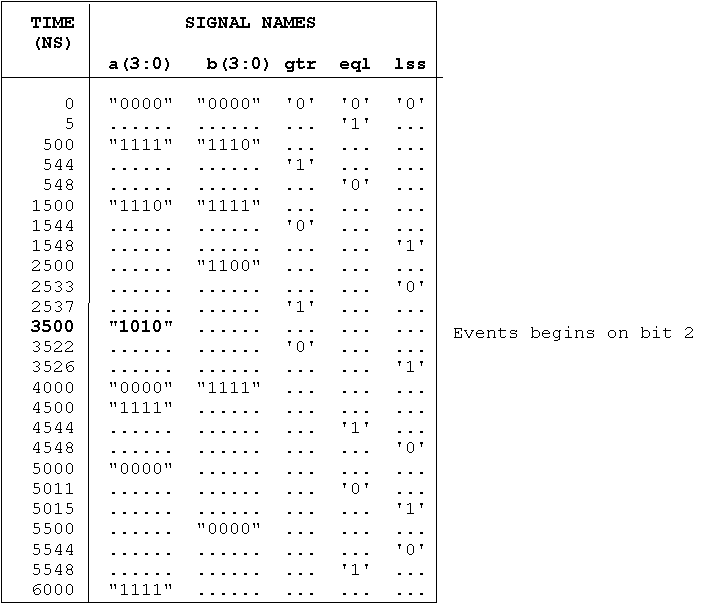

Structural...testbench.results

---

• Activity flows from:


Testbench => nibble_comparator => bit_comparator => gates...

• AT 2500NS: - testbench activates nibble comparator


- nibble comparator activates bit_comparator

- bit comparator activates its primitive gate

- last 2 steps repeat while there are activities

---

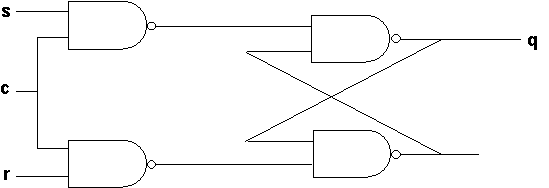

Structural...latch_design.single_bit_SR_latch

• Use four NAND gates to design a latch


• If all delays are equal then (0,0) on (q, qbar) will oscillate

• Remedy by careful initial value setting, or

• Remedy by using gates of different delay values


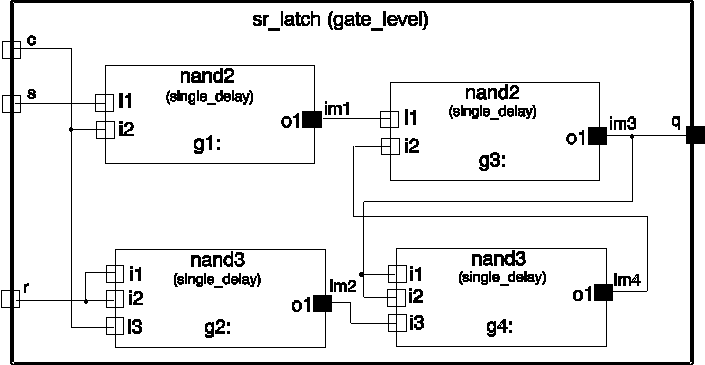

Structural...latch_design.single_bit_SR_latch

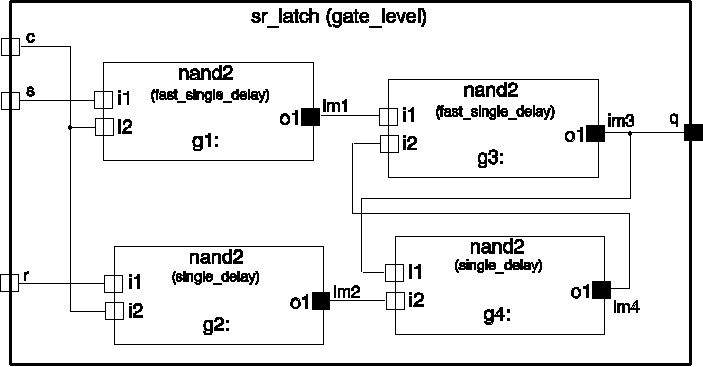

• Use fast_single_delay with different delay value

• Composition aspect illustrates VHDL wiring

• Two separate configuration specifications are used


Structural...latch_design.single_bit_SR_latch

• nand3 has different delay value than nand2

• Use nand3 to remedy oscillation problem


Structural...latch design.single_bit_SR_latch

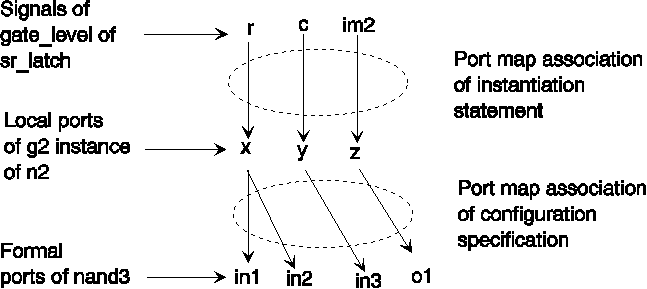

• Association is done in two steps

• Port map of component declaration is default

• Use Port map in configuration declaration instead of default

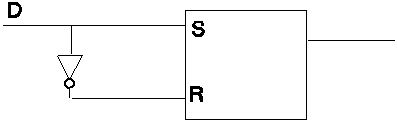

Structural...old_new_comparator.latch_design.d_latch

ASSEMBLING PARTS FOR A NEW DESIGN

ENTITY d_latch IS PORT(d,c : IN BIT;q: OUT BIT); END d_latch;

--

ARCHITECTURE sr_based OF d_latch IS

COMPONENT sr_latch PORT (s, r, clk : IN BIT; q : OUT BIT);

END COMPONENT;

COMPONENT inv_t PORT (i1 : IN BIT; o1 : OUT BIT);

END COMPONENT;

SIGNAL dbar: BIT;

BEGIN

c1 : sr_latch PORT MAP (d, dbar, c, q);

c2 : inv_t PORT MAP (d, dbar);

END sr_based;

---

• New design will use parts developed so far

• Old_new_comparator needs a byte_latch and a comparator

In the sr_based ARCHITECTURE of d_latch:

• Binding alternative uses component declaration as default

• Architecture most recently analyzed will be used


Structural...old_new_comparator.latch_design

ENTITY byte_latch IS

PORT (di : IN BIT_VECTOR (3 DOWNTO 0);

clk : IN BIT; qo : OUT BIT_VECTOR( 3 DOWNTO 0));

END byte_latch;

--

ARCHITECTURE iterative OF byte_latch IS

COMPONENT d_latch

PORT (d, c : IN BIT; q : OUT BIT);

END COMPONENT;

BEGIN

g : FOR i IN di'RANGE GENERATE

L7DT0 : dlatch PORT MAP (di(i), clk, qo(i));

END GENERATE;

END iterative;

---

• Wire n latches to form an n-bit latch

• Configuration specification is not required

• Component declaration defaults are used

• Generate statement wires bits of D-latch

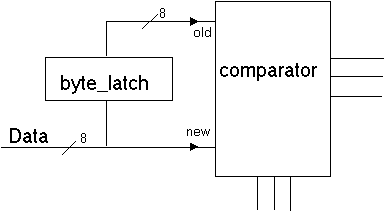

Structural...old_new_comparator.system_wiring

ENTITY old_new_comparator IS

PORT (i : IN BIT_VECTOR (7 DOWNTO 0);

clk : IN BIT; compare : OUT BIT);

END old_new_comparator;

--

ARCHITECTURE wiring OF old_new_comparator IS

COMPONENT latch PORT (di : IN BIT_VECTOR (7 DOWNTO 0);

clk : IN BIT; qo : OUT BIT_VECTOR (7 DOWNTO 0));

END COMPONENT;

COMPONENT byte_comparator

PORT(a, b : BIT_VECTOR (7 DOWNTO 0);

gt, eq, lt : IN BIT; a_gt_b, a_eq_b, a_lt_b : OUT BIT);

END COMPONENT;

SIGNAL con1 : BIT_VECTOR (7 DOWNTO 0);

SIGNAL vdd : BIT := '1'; SIGNAL gnd : BIT := '0';

BEGIN

l : latch PORT MAP(i, clk, con1);

c : byte_comparator

PORT MAP(con1, i, gnd, vdd, gnd, OPEN, compare, OPEN);

END wiring;

• Circuit compares old and new data

• Default binding is used
