PART 3



VHDL_ Background











VHDL_Background.initiation

1981 DoD Woods Hole MA
Workshop on HDLs
ITAR restrictions

1983 DoD
Requirements were established
Contract awarded to IBM, TI, Intermetrics
ITAR restrictions removed from language

1984 IBM, TI, Intermetrics
VHDL 2.0 was defined

December 1984
VHDL 6.0 was released
Software development started

1985
VHDL 7.2 was released to IEEE
ITAR removed from software

May 1985
Standard VHDL 1076/A

December 1987
VHDL 1076-1987 became IEEE standard

1993
VHDL 1076-1993 was approved









VHDL_Background.existing_languages

AHPL
A Hardware Programming Language

CDL
Computer Design Language

CONLAN
CONsensus LANguage

IDL
Interactive Design Language

ISPS
Instruction Set Processor Specification

TEGAS
TEst Generation And Simulation

TI-HDL
Texas Instruments Hardware Description Language

ZEUS
An HDL by GE corporation










VHDL_Background.VHDL_requirements

  • General features
    • Documentation, High level design, Simulation, Synthesis,
    Test, Automatic hardware

  • Design Hierarchy
    • Multi_level description
    Partitioning

  • Library Support
    • Standard Packages
    Cell based design

  • Sequential Statements
    • Behavioral software-like constructs

  • Generic Design
    • Binding to specific libraries

  • Type declaration
    • Stongly typed language

  • Subprograms

  • Timing
    • Delays, concurrency

  • Structural specification
    • Wiring components

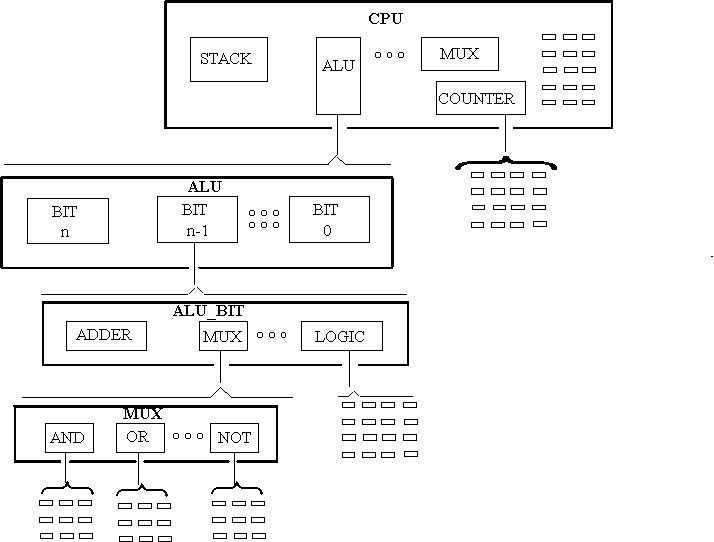

    VHDL_Background.VHDL_requirements.hierarchy



    Use various levels of abstraction for defining a system
    Upper level systems are partitioned into lower









    VHDL_Background.VHDL_requirements.language

    Entity
    Architecture
    Package
    Configurations
    Strong Timing Support

    A concurrent language for hardware description
    Allows sequential bodies

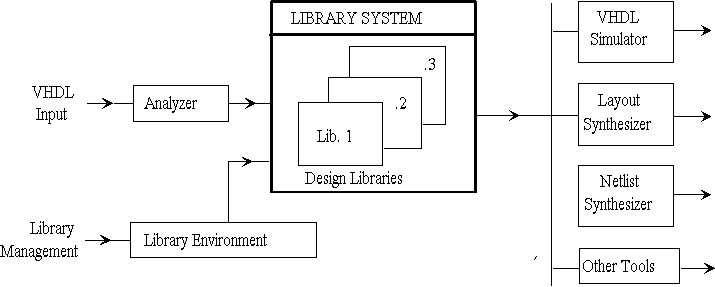

    VHDL_Background.VHDL_requirements.environment



    An environment for simulation, synthesis, test, ...









    VHDL_Background.design_process



    A simple example illustrates design process
    Top level system description










    VHDL_Background.design_process

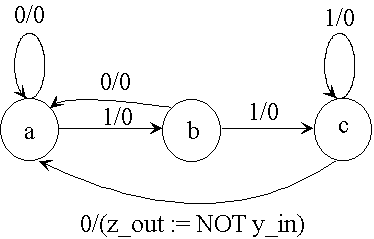

    A behavioral description of the system
    The first step of the design
    Design can write a behavioral VHDL description










    VHDL_Background.design_process

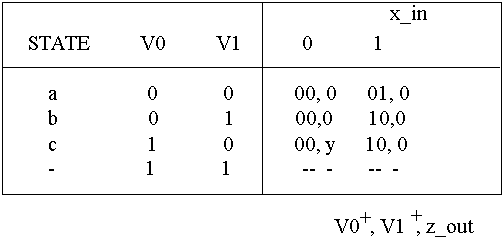

    Data flow description of the design
    Clock level timing details are specified
    Can generate corresponding VHDL









    VHDL_Background.design_process



    Detailed gate level description can be extracted
    Corresponding VHDL structural describes this level of design










    VHDL_Background.conclusions

    1. Outline: Introduction, Organization, Outline

    2. Design_Environments: Digital system design process, Hardware description languages, Hardware simulation, Hardware synthesis

    3. VHDL_Background: VHDL initiation, Existing languages, VHDL requirements, The VHDL language, VHDL based design process, Levels of abstraction

    4. VHDL_Overview: Behavioral description, Using process statements, Top-down design, Using available components, Wiring predefined components, Wiring from bottom to top, Generation of testbench data, Using procedures
