• Digital system design process

• Hardware description languages

• Hardware Design Tools:

• Hardware simulation

• Hardware synthesis






  ---








• VHDL is a tool for advancing design process






  ---








---

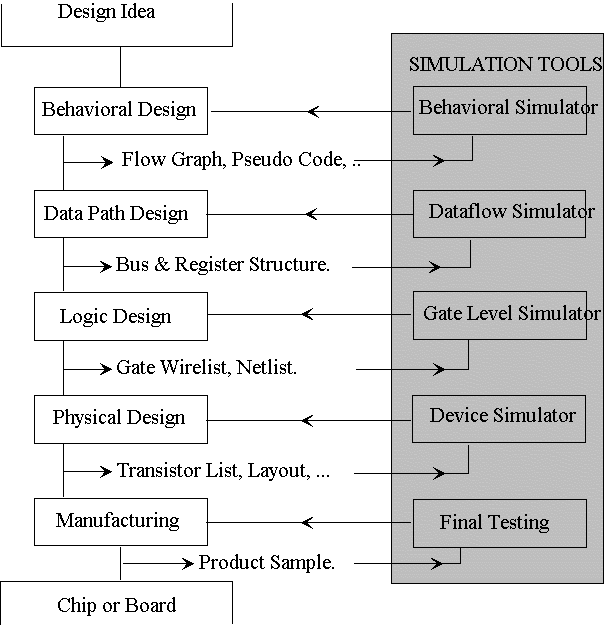

• Steps required for transforming design idea into hardware

• Each step has its representation format






  ---







---

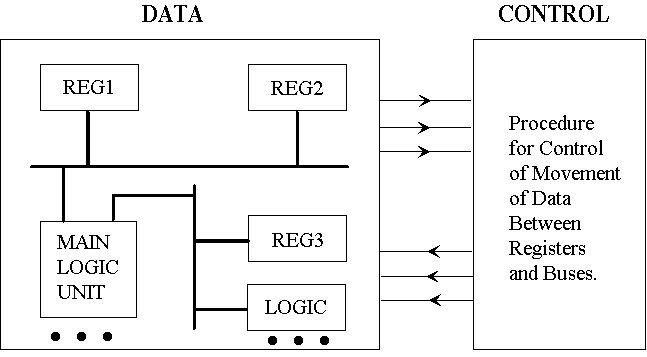

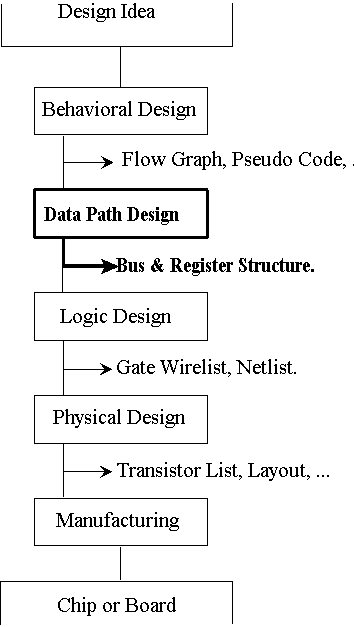

• A possible representation of data path information

• Next step is to transform into gates






  ---








Design entry

Simulation

Synthesis

Test generation

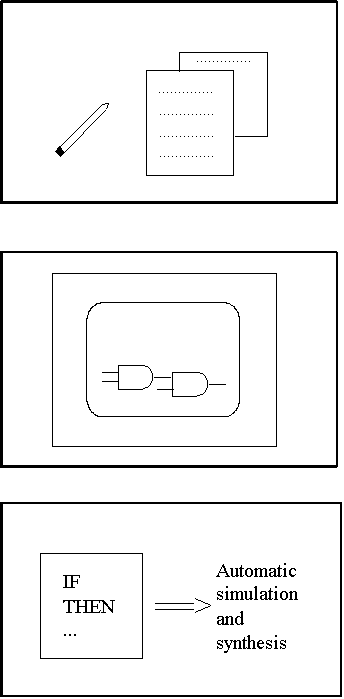

• Design automation helps transforming one format to another

• HDLs provide uniforms data formats






  ---








Behavioral
Describes System Behavioral

Dataflow
Describes System at Register and Bus Level

Structural
Describes System at Component Level

• HDLs at various levels help different design steps

• Behavioral, Dataflow and Structural






  ---








mark1 :=
BEGIN

• memory.state **


• processor.state **


• instruction.execution ** {tc}


• ISPS an early behavioral HDL

• Description shows MARK1 CPU

• Clocking is not explicitly specified

• High degree of readability






  ---








AHPLMODEL: multiplier.

MEMORY: ac1[4]; ac2[4]; count[2]; extra[4]; busy.

EXINPUTS: dataready.

EXBUSES: inputbus[8].

OUTPUTS: result[8]; done.

CLUNITS: INC[2](count); ADD[5](extra; ac2);

1 ac1 <= inputbus[0:3]; ac2 <= inputbus[4:7];

extra <= 4$0;

=> (~ ^dataready)/(1).

2 busy <= \1\;

=> (~ ^ac1[3])/(4).

3 extra <= ADD[1:4](extra; ac2).

4 extra, ac1 <= \0\, extra, ac1[0:2];

count <= INC(count);

=> (^(&/count))/(2).

5 result = extra, ac1; done = \1\; busy <= \0\;

=> (1).

END SEQUENCE

CONTROLLERS(1).

END.

• AHPL, A Hardware Programming Language

• Description shows an add_shift serial multiplier

• Clocking is explicitly specified

• Gate level timing is not known from this description






  ---








• Another level of abstraction is at the structural level

• Interconnection of components is specified






  ---

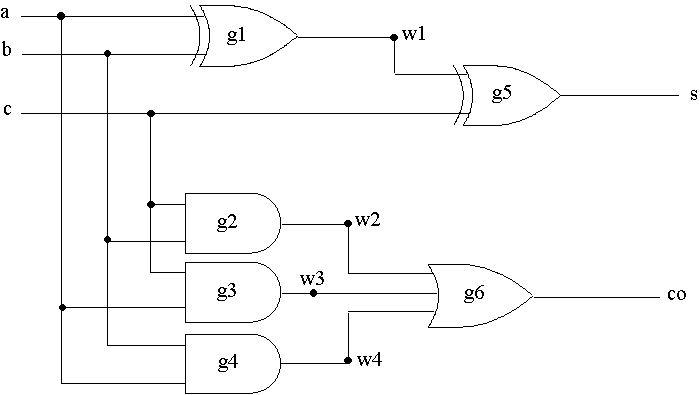

CCT full_adder (a, b, c, s, co)

XOR (RISE = 16, FALL = 12)

g1 (w1, a, b),

g2 (s, w1, c);

AND (RISE4 = 12, FALL = 10)

g2 (w2, c, b),

g3 (w3, c, a),

g4 (w4, b, a);

OR (RISE = 12, FALL = 10)

g6 (co, w2, w3, w4);

INPUT a, b, c;

WIRE w1, w2, w3, w4;

OUTPUT s, co;

END CIRCUIT full_adder

• Full adder of previous slide is described in GHDL

• Complete timing at gate level is known by this description

• Hard to extract functionality by reading the description






  ---








Simulation:
Describe system and operation

Synthesis:
Describe system and automatically generate hardware

• Simulation and synthesis are two main HDL based tool

• Can simulate and synthesize with any level of abstraction






  ---







---

• Simulation tools verify transformation at each step

• Verify each step before going to next






  ---








• Oblivious and event driven simulation

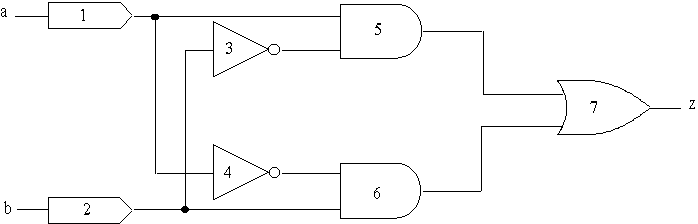

• Can simulate gate level circuit with both methods






  ---

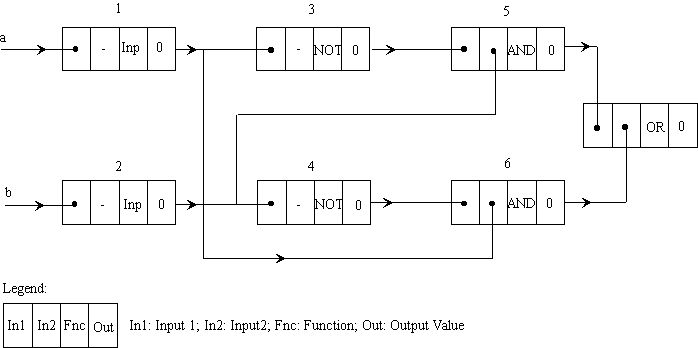

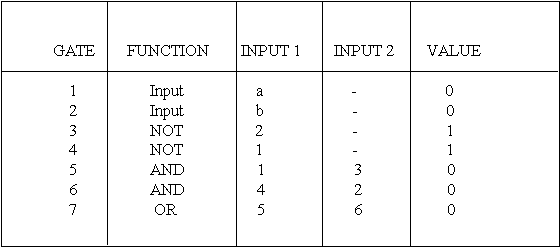

• Need a tabular netlist for oblivious simulation

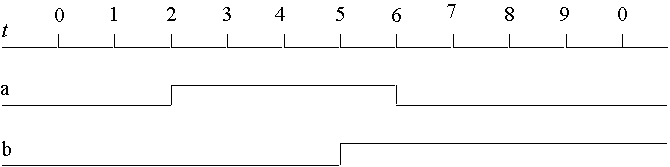

• Simulate a fixed time invervals

• Update table values at each interval






  ---
