Displays information regarding the IOVCC Groups in MAX® 7000B devices. This section is omitted if you do not specify a MAX 7000B device for compilation.
Information is provided as follows:
| Heading | Description | Value |
|---|---|---|
| IOVCC Group | Shows the IOVCC Group in the device. | <group letter> |
| I/O Pins | Shows the total number and percentage of pins used by the specific IOVCC Group. | <total pins used> / <total number of pins in IOVCC group> (<percentage>) |
| VCCIO Voltage | Shows the VCCIO voltage for the specific IOVCC Group. | -- | 1.8V | 2.5V | 3.3V |
| VCCIO Current / Current Limit | Shows, in microamperes, the current used by the IOVCC Group. | <total current used> / <total current for IOVCC group> mA (<percentage>) |

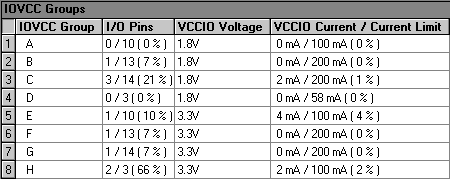

The following example shows a portion of the IOVCC Groups section generated for a sample design:
|
