Lists information about the GXB transmitter channel usage, which is implemented using the altgxb megafunction in Stratix™ GX devices, including parameter values you specified either by using the MegaWizard® Plug-In Manager (Tools menu) or by editing a text file. This section is omitted if the design does not include GXB transmitter PLLs.
Information is provided as follows:
| Heading | Description | Value |
|---|---|---|
| Name | Shows the instance name of the GXB transmitter channel. | <GXB transmitter channel instance> |
| Channel Number | Shows the logical channel number of the GXB transmitter channel. | 0 | 1 | 2 | 3 |
| Channel Width | Shows the width of the channel of the GXB transmitter channel. | 8 | 10 | 16 | 20 |
| Data Rate | Shows the data rate of the GXB transmitter channel. | <data rate> |
| Transmit Protocol | Shows the transmit protocol for the GXB transmitter channel. | XAUI | GIGE | RAPIDIO | FIBRECHANNEL | SONET | CUSTOM | None |
| Output Buffer Differential Voltage | Shows, in milliamperes, the voltage of the output buffer. | <current> mA |
| Output Buffer Pre-emphasis | Shows the percentage of voltage output differential . | <percentage> % |
| On-Chip Termination | Shows, in ohms, the value of the on-chip termination resistance. | <resistance> Ohm |
| Calibration Mode | Shows the calibration mode for the GXB transmitter channel. | Once | Continuous |

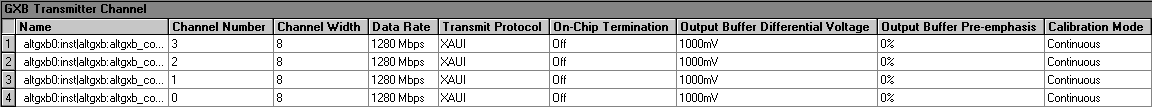

The following example shows a portion of the GXB Transmitter Channel Section generated for a sample design:
 |
