Assignments

XGMII State Machine (Assignment Categories)

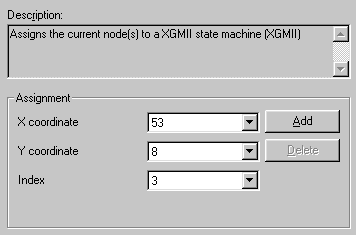

Allows you to make assignments to XGMII state machines. You can click XGMII state machine to open the X coordinate list, the Y coordinate list, and the Index list. This assignment is available for Stratix GX devices.

Pointer Click any item in in the following Description and Assignment group boxes for more information on that item:


Description Add Delete X coordinate Y coordinate Index
