Test Benches

Test benches prove that a design is correct. How do you create a simple testbench in Verilog?

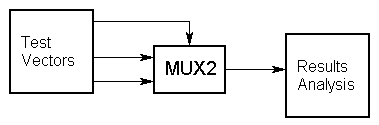

Let’s take the exisiting MUX_2 example module and create a testbench for it. We can create a template for the testbench code simply by refering to the diagram above.

module MUX2TEST;  // No ports!
  ...
  initial
  // Stimulus

   ...  MUX2 M (SEL, A, B, F);

  initial
  // Analysis
    ...
endmodule

In this code fragment, the stimulus and response capture are going to be coded using a pair of initial blocks. An initial block can contain sequential statements that can be used to describe the behaviour of signals in a test bench.

In the Stimulus initial block, we need to generate waveform on the A, B and SEL inputs. Thus:

initial  // Stimulus
begin
  SEL = 0; A = 0; B = 0;
  #10 A = 1;
  #10 SEL = 1;
  #10 B = 1;
end

Once again, let’s look at each line in turn.

initial // Stimulus
begin
  // statements
end

SEL = 0; A = 0; B = 0;This line contains three sequential statements. First of all, SEL is set to 0, then A, then B. All three are set to 0 at simulation time 0.

#10 A = 1;In terms of simulation, the simulator now advances by 10 time units and then assigns 1 to A. Note that we are at simulation time = 10 time units, not 10 ns or 10 ps! Unless we direct the Verilog simulator otherwise, a Verilog simulation works in dimensionless time units.

#10 SEL = 1; #10 B = 1;These two lines are similar to the one above. 10 time units after A is set to 1, SEL is set to 1. Another 10 time units later (so we are now at simulation time = 30 time units), B is set to 1. The diagram below shows how the initial block has created a waveform sequence for the three signals.

We shall look at the use of the initial block to capture the MUX_2’s response in the next tutorial.
